BRAKE PEDAL/TORQUE LINK ('80-'81

KE175-D4 KE175 1982 USA CANADA

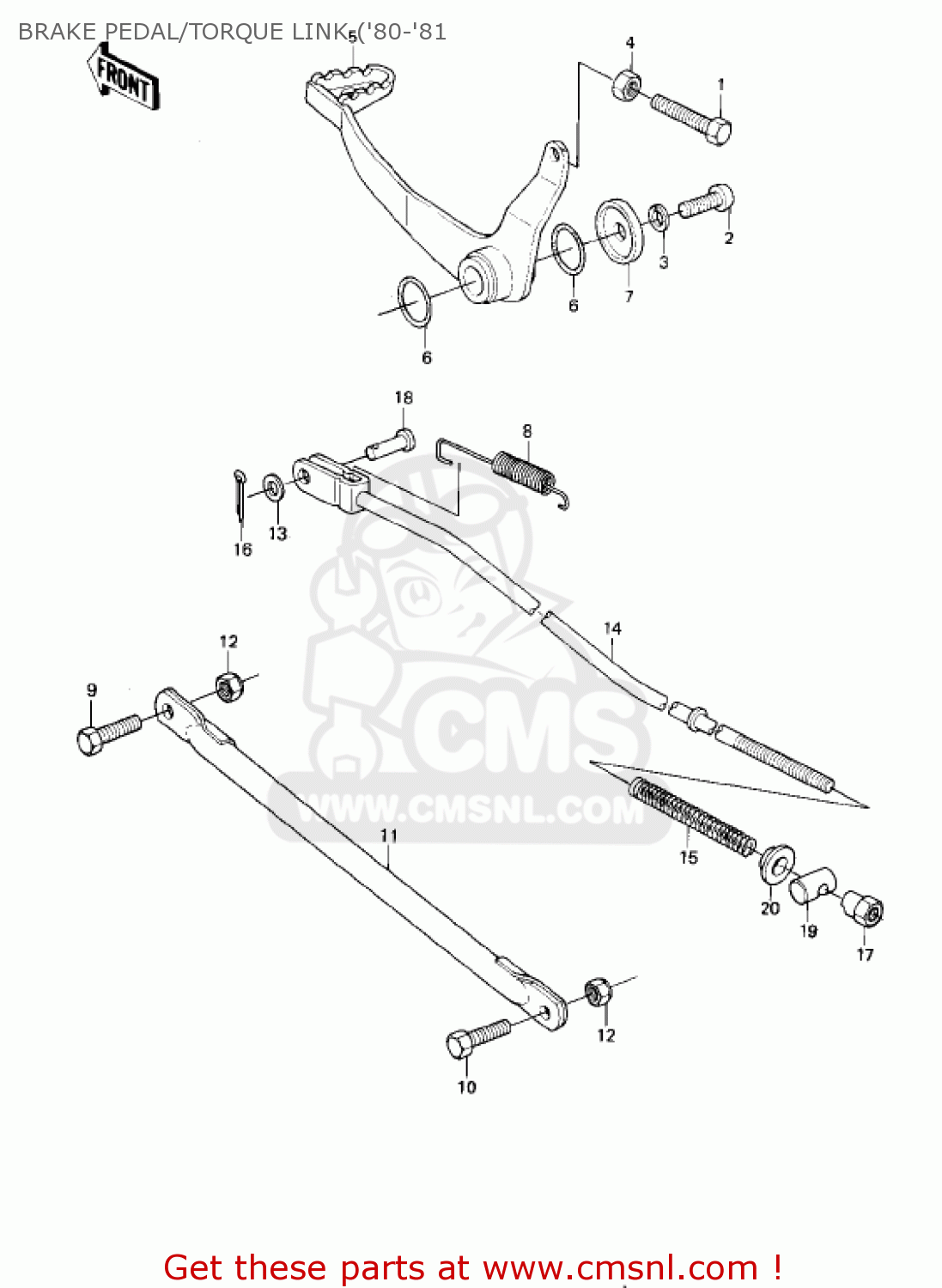

Brake pedal/torque link ('80-'81 diagram KE175-D4 KE175 1982 USA CANADA

BRAKE PEDAL/TORQUE LINK ('80-'81 KE175-D4 KE175 1982 USA CANADA
BRAKE PEDAL/TORQUE LINK ('80-'81 KE175-D4 KE175 1982 USA CANADA
BRAKE PEDAL/TORQUE LINK ('80-'81 KE175-D4 KE175 1982 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
112G0620
ref: 1
BOLT 6X20
112G0620
€ 1.00
2
220B0612
ref: 2
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
3
461F0600
ref: 3
WASHER-SPRING,6MM
461F0600
€ 0.50
4
311B0600
ref: 4
NUT,6MM
311B0600
€ 0.50
5
430011020
ref: 5
PEDAL,BRAKE
€ 31.50
6
670B2016
ref: 6
O RING,16MM
670B2016
€ 1.00
7
92022284
ref: 7
WASHER,PLAIN,6MM
€ 2.50
8
920811071
ref: 8
SPRING,BRAKE PEDAL
€ 4.50
9
113G1022
ref: 9
BOLT,HEX HEAD,10X22
€ 2.50
10
113G1028
ref: 10
BOLT,HEX HEAD,10X28
€ 4.50
11
43007048
ref: 11
ROD-TORQUE,RR
€ 15.50
12
92019016
ref: 12
NUT,10MM
€ 3.00
13
410B0600
ref: 13
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
14
430111009
ref: 14
ROD-BRAKE
€ 13.50
15
43012001
ref: 15
SPRING,BRAKE ROD
43012001
€ 3.00
16
550D2015
ref: 16
PIN-COTTER,2.0X15
550D2015
€ 1.00
17
92015042
ref: 17
NUT-BRAKE ROD ADJUST
92015042
€ 4.00
18
92043064
ref: 18
PIN-BRAKE ROD FITTING
92043064
€ 4.50
19
92043065
ref: 19
PIN-BRAKE ROD
92043065
€ 3.50
20
92027122
ref: 20
COLLAR,L=4.7
92027122
€ 5.50
