FRONT HUB/BRAKE ('80-'81 KE175-D

KE175-D4 KE175 1982 USA CANADA

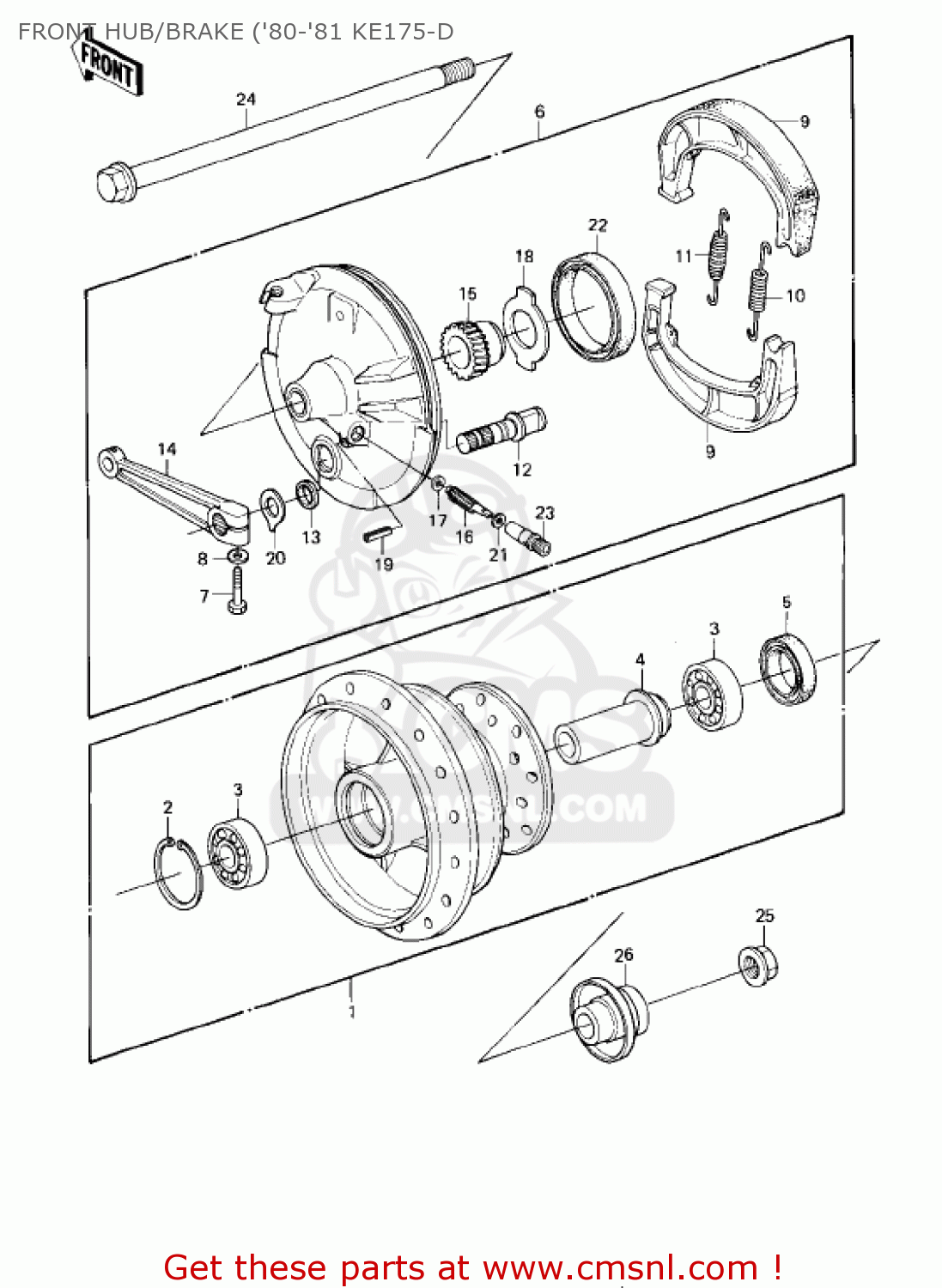

Front hub/brake ('80-'81 ke175-d diagram KE175-D4 KE175 1982 USA CANADA

FRONT HUB/BRAKE ('80-'81 KE175-D KE175-D4 KE175 1982 USA CANADA

FRONT HUB/BRAKE ('80-'81 KE175-D KE175-D4 KE175 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

410341014
ref: 1

DRUM ASSY,FRONT BRAKE

€ 201.50

2

481J3700
ref: 2

CIRCLIP-TYPE-C,37MM

€ 1.50

3

601B6301
ref: 3

BEARING-BALL,#6301C3

€ 13.00

4

920271097
ref: 4

COLLAR,L=34

€ 10.00

5

92050059
ref: 5

OIL SEAL,FR BK DRUM

€ 13.00

6

410351045
ref: 6

PANEL ASSY,FRONT BRAK

€ 191.00

6

410351045
ref: 6
F/NO. 002974~

PANEL ASSY,FRONT BRAK

€ 191.00

7

112G0625
ref: 7

BOLT-UPSET,6X25

€ 4.00

8

410B0600
ref: 8

WASHER-PLAIN-SMALL,6M

€ 0.50

9

41048015
ref: 9

SHOE,BRAKE (MCA)

€ 14.50

10

920811766
ref: 10

SPRING,BRAKE SHOE

€ 5.50

11

920811550
ref: 11

SPRING,BRAKE SHOE

€ 6.00

12

410501010
ref: 12

CAM,BRAKE,FRONT

€ 17.00

13

41051001
ref: 13

DUST SHIELD-BRAKE CAM

€ 2.50

14

410531012
ref: 14

LEVER-BRAKE CAM

€ 33.50

15

410601017
ref: 15

GEAR,SPEEDOMETER,24T

€ 14.00

16

410601018
ref: 16

PINION,SPEEDOMETER,8T

€ 16.00

17

41063001
ref: 17

WASHER-THRST SPD PINI

€ 3.00

18

41064006
ref: 18

RECEIVER-SPEEDOMETER

€ 4.50

19

41082001
ref: 19

PIN-SPRING

€ 2.50

20

410851003
ref: 20

INDICATOR,BRAKE SHOE

€ 7.50

21

41063001
ref: 21

WASHER-THRST SPD PINI

€ 3.00

22

92050010
ref: 22

OIL SEAL-F BRK PANEL

€ 13.00

23

920871002
ref: 23

BUSHING-METER GEAR

€ 14.50

24

410681095
ref: 24

AXLE,FR,L=215

€ 19.50

25

920151156
ref: 25

NUT,12MM

€ 4.50

26

920271098
ref: 26

COLLAR,FRONT AXLE

€ 13.00
