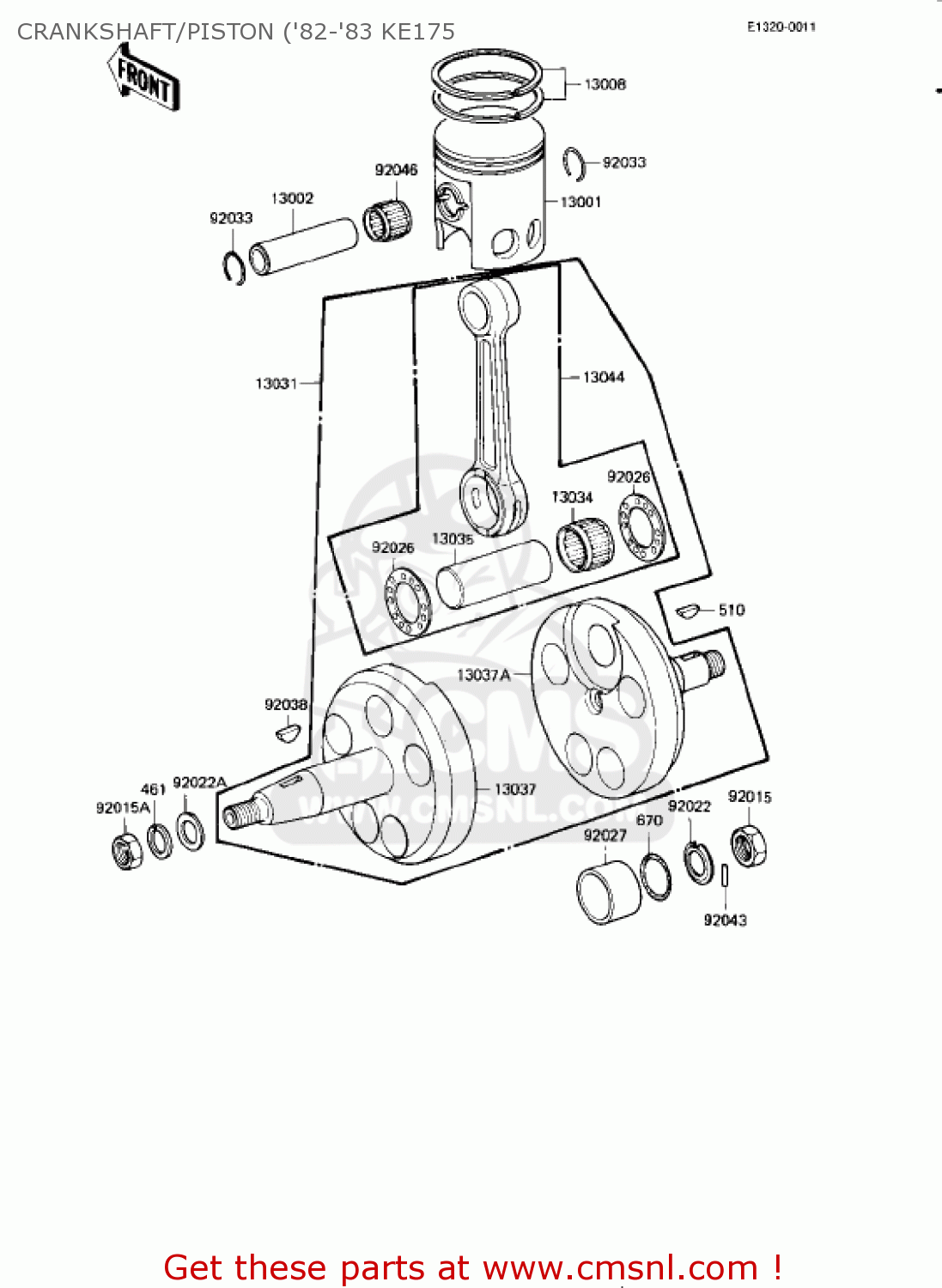

CRANKSHAFT/PISTON ('82-'83 KE175

KE175-D4 KE175 1982 USA CANADA

Crankshaft/piston ('82-'83 ke175 diagram KE175-D4 KE175 1982 USA CANADA

CRANKSHAFT/PISTON ('82-'83 KE175 KE175-D4 KE175 1982 USA CANADA

CRANKSHAFT/PISTON ('82-'83 KE175 KE175-D4 KE175 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

13001

130011041
ref: 13001

PISTON-ENGINE,STD

€ 51.50

13002

130021004
ref: 13002

PIN-PISTON

€ 5.00

13008

130085024
ref: 13008

RING-SET-PISTON,STD

€ 50.00

13031

130311011
ref: 13031

CRANKSHAFT-COMP

€ 386.00

13034

13034042
ref: 13034

BEARING-NEEDLE,22VS29

€ 18.00

13035

13035022
ref: 13035

CRANK PIN

€ 17.50

13037

130371012
ref: 13037

CRANKSHAFT,LH

€ 192.50

13037A

130371013
ref: 13037A

CRANKSHAFT,RH

€ 192.50

13044

130445012
ref: 13044

CONNECTING ROD ASSY

€ 113.50

92015

92015019
ref: 92015

NUT,18MM

€ 4.00

92015A

92015043
ref: 92015A

NUT,14MM

€ 3.50

92022

920221231
ref: 92022

WASHER,LOCK,18MM

€ 3.00

92022A

92022172
ref: 92022A
1

WASHER,14.5X25X3.6

€ 6.50

92026

92026011
ref: 92026

SPACER,22.5X37X1.0

€ 6.50

92027

921431370
ref: 92027

COLLAR,25X32X10.5

€ 9.50

92033

92036004
ref: 92033

CIRCLIP-PISTON PIN

€ 0.50

92038

92038001
ref: 92038

WOODRUFF KEY

€ 3.00

92043

92042051
ref: 92043

PIN,DOWEL,2.5X14.8

€ 2.00

92046

920461038
ref: 92046

BEARING-NEEDLE,KBK16X

€ 17.00

461

461F1400
ref: 461

WASHER-SPRING,14MM

€ 0.50

510

510A4200
ref: 510

KEY-WOODRUFF

€ 1.50

670

670B2020
ref: 670

O RING,20MM

€ 1.00
