TAIL LAMP

ZX1000B3 1990 EUROPE UK GR NR SD

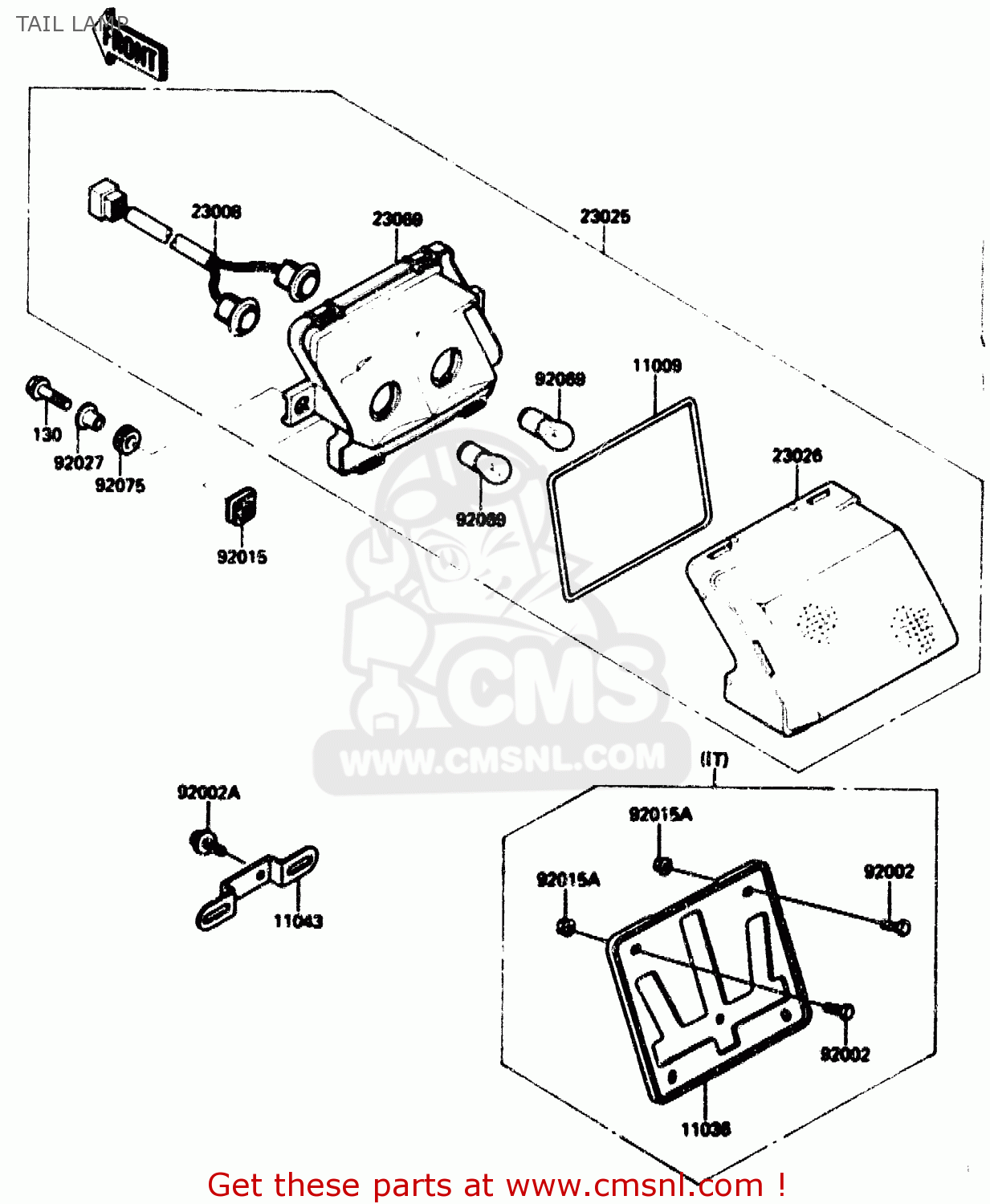

Tail lamp diagram ZX1000B3 1990 EUROPE UK GR NR SD

prices are in EUR

ref

part #

description

quantity

11009

110091748
ref: 11009

GASKET,TAIL LAMP LENS (NAS)

€ 6.50

11043

110431499
ref: 11043

BRACKET,REFLECTOR

€ 12.00

23008

230081364
ref: 23008

SOCKET-ASSY,TAIL LAMP

€ 32.50

23025

230251176
ref: 23025

LAMP-TAIL

€ 61.00

23026

230261096
ref: 23026

LENS,TAIL LAMP

€ 46.50

23069

230691084
ref: 23069

BODY-TAIL LAMP

€ 49.50

92002A

920021351
ref: 92002A

BOLT

€ 2.50

92015

920151094
ref: 92015

NUT,MUFFLER

€ 5.50

92027

92027251
ref: 92027

COLLAR,L=13.1

€ 1.00

92069

92069063
ref: 92069

BULB 12V 21/5W

€ 4.50

92075

920751690
ref: 92075

DAMPER,10X24X12

€ 3.00

130

130D0625
ref: 130

BOLT-FLANGED

€ 0.50

TAIL LAMP

all assemblies
