BATTERY CASE
ZX1000B3 1990 EUROPE UK GR NR SD

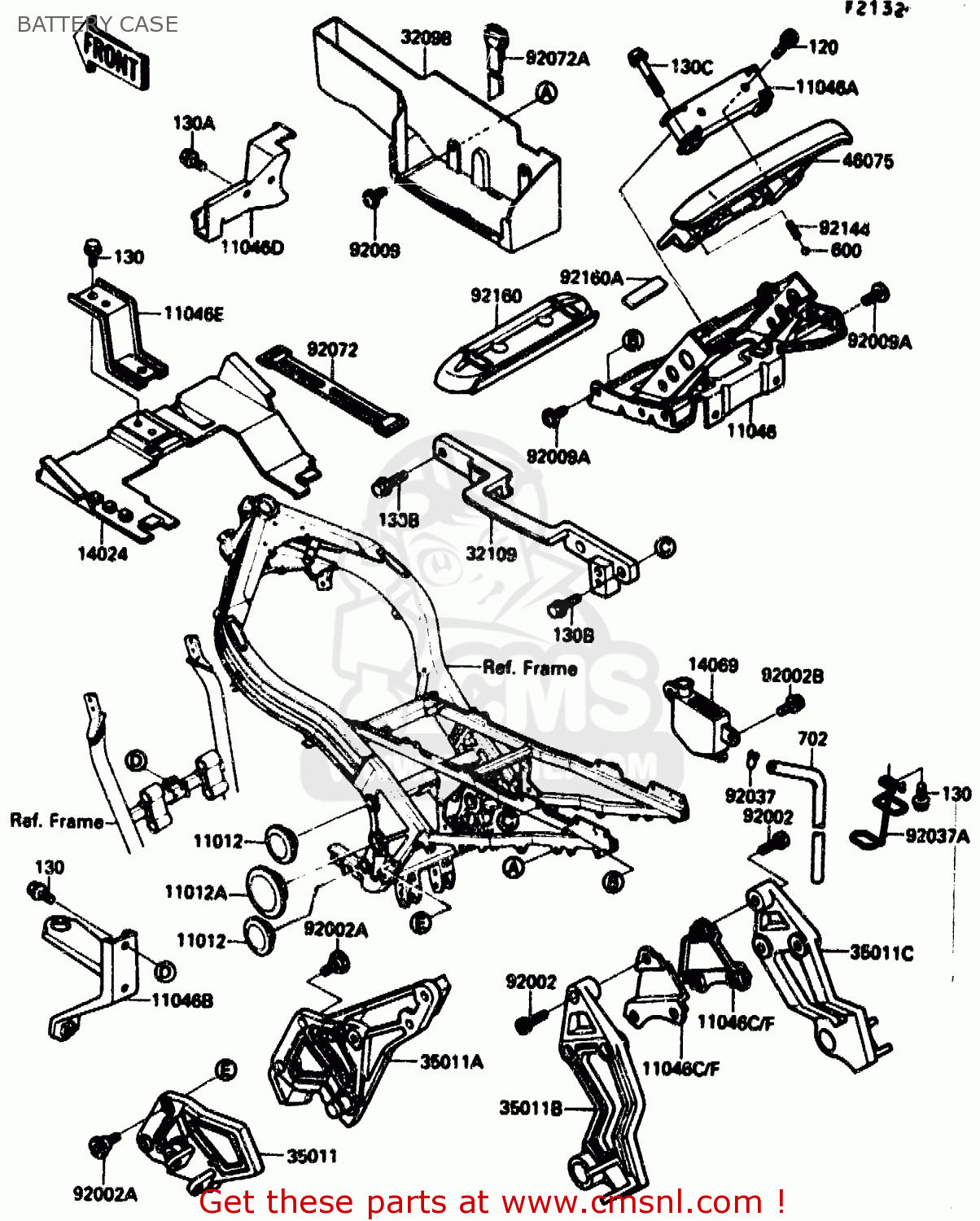

Battery case diagram ZX1000B3 1990 EUROPE UK GR NR SD
BATTERY CASE ZX1000B3 1990 EUROPE UK GR NR SD
×
prices are in EUR
ref
part #
description
quantity
11012
110121460
ref: 11012
CAP
€ 7.50
11012A
110121657
ref: 11012A
CAP
€ 11.00
11046
110461239
ref: 11046
BRACKET,TAIL GRIP
€ 54.00
11046A
110461240
ref: 11046A
BRACKET,TAIL GRIP
€ 8.00
11046B
110461260
ref: 11046B
BRACKET,OIL COOLER
€ 15.00
11046D
110461262
ref: 11046D
BRACKET,FUEL PUMP
€ 8.00
11046E
110461369
ref: 11046E
BRACKET,BATTERY CASE
€ 5.50
11046F
110461722
ref: 11046F
BRACKET,MUFFLER STAY
€ 7.50
14024
140241693
ref: 14024
COVER,RR
€ 17.50
14069
140691054
ref: 14069
BREATHER
€ 16.50
32098
320981081
ref: 32098
CASE-TOOL
€ 28.00
32109
321091171
ref: 32109
GRIP-FRAME,LH
€ 26.00
35011
350111416CE
ref: 35011
STAY,STEP HOLDER,LH,S
€ 77.00
35011A
350111417CE
ref: 35011A
STAY,STEP HOLDER,RH,S
€ 72.00
35011B
350111425CE
ref: 35011B
STAY,MUFFLER,LH,SILVE
€ 35.50
35011C
350111426CE
ref: 35011C
STAY,MUFFLER,RH,SILVE
€ 66.00
46075
46075107610
ref: 46075
GRIP,TAIL,BLACK
€ 67.00
92002
920021334
ref: 92002
BOLT,SOCKET,8X22
€ 2.50
92002A
920021493
ref: 92002A
BOLT,SOCKET,8X20
€ 1.50
92002B
920021884
ref: 92002B
BOLT,6X12
€ 2.50
92009
920091181
ref: 92009
SCREW,6X18
€ 2.00
92009A
920091556
ref: 92009A
SCREW,8X16
€ 2.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92037A
920371875
ref: 92037A
CLAMP,HOSE
€ 6.50
92072
92072054
ref: 92072
BAND,L=146.9
€ 10.50
92072A
920721235
ref: 92072A
BAND,L=300
€ 12.00
92144
921443708
ref: 92144
SPRING
€ 2.50
92160
921601054
ref: 92160
DAMPER,TAIL GRIP
€ 10.00
92160A
921601099
ref: 92160A
DAMPER
€ 3.00
120
120S0814
ref: 120
BOLT-SOCKET
€ 3.00
130
130J0610
ref: 130
BOLT-FLANGED
€ 1.50
130A
130J0616
ref: 130A
BOLT-FLANGED,6X16
€ 1.50
130B
130J0820
ref: 130B
BOLT-FLANGED,8X20
€ 0.50
130C
130J0840
ref: 130C
BOLT-FLANGED,8X40
€ 3.00
600
600A0800
ref: 600
BALL-STEEL,1/4
€ 0.50
702
702A07380
ref: 702
TUBE-RUBBER
€ 9.50
