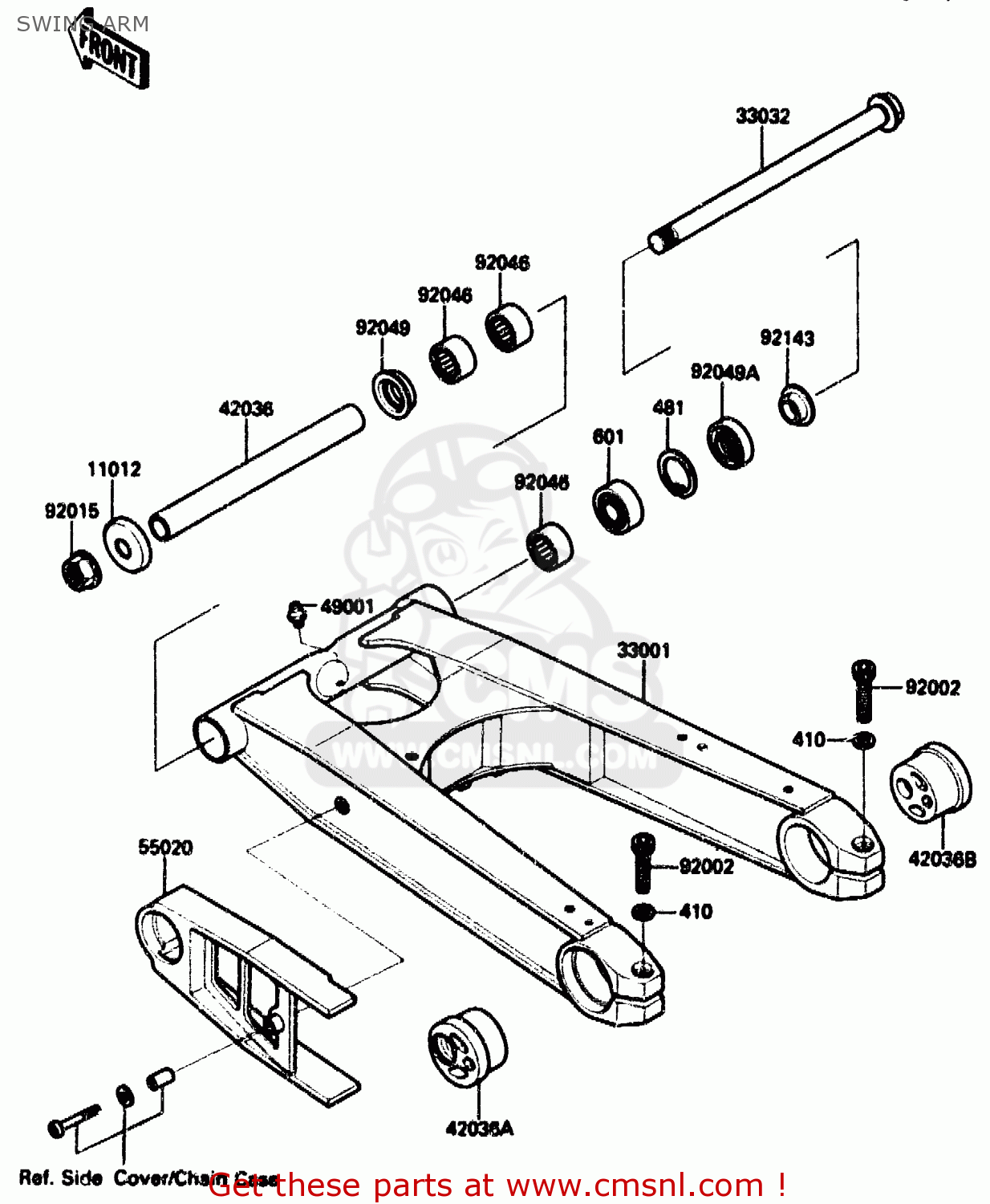

SWING ARM

ref

part #

description

quantity

11012

110121658
ref: 11012

CAP

€ 5.50

33001

330011317CE
ref: 33001

ARM-COMP-SWING,SILVER

€ 655.00

33032

330321142
ref: 33032

SHAFT-SWING ARM

€ 79.00

42036

420361236
ref: 42036

SLEEVE,SWING ARM,L=22

€ 47.50

42036A

420361237
ref: 42036A

SLEEVE,REAR AXLE,LH

€ 82.50

42036B

420361238
ref: 42036B

SLEEVE,REAR AXLE,RH

€ 91.50

49001

490011051
ref: 49001

NIPPLE-GREASE,ROD BOL

€ 2.00

55020

550201307
ref: 55020

GUARD,CHAIN

€ 41.00

92002

920021452
ref: 92002

BOLT

€ 4.00

92015

920151724
ref: 92015

NUT,FLANGED,20MM

€ 10.50

92046

920461111
ref: 92046

BEARING-NEEDLE,BM2817

€ 21.50

92049

920491181
ref: 92049

SEAL-OIL

€ 7.50

92049A

920491314
ref: 92049A

SEAL-OIL,MHSA25 42 6

€ 9.00

92143

921431227
ref: 92143

COLLAR,SWING ARM,L=12

€ 7.50

410

410E1000
ref: 410

W-PLAIN-S

€ 0.50

481

481J4200
ref: 481

CIRCLIP-TYPE-C

€ 4.00

601

601A6004
ref: 601

BEARING-BALL,#6004

€ 13.00
