REAR MASTER CYLINDER
ZX1000B3 1990 EUROPE UK GR NR SD

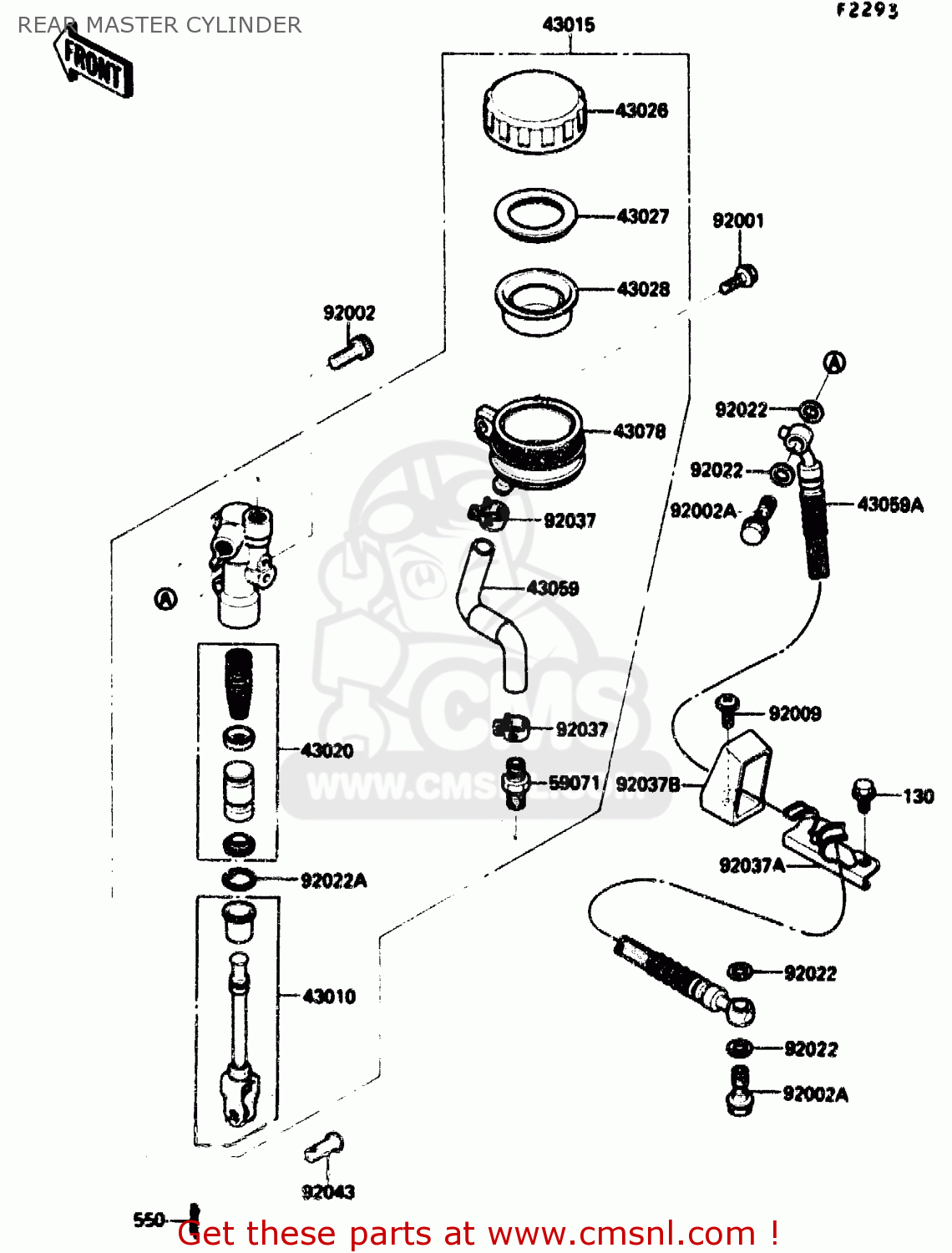

Rear master cylinder diagram ZX1000B3 1990 EUROPE UK GR NR SD
REAR MASTER CYLINDER ZX1000B3 1990 EUROPE UK GR NR SD
×
prices are in EUR
ref
part #
description
quantity
43010
430101067
ref: 43010
ROD-ASSY-BRAKE
€ 51.00
43015
430151379
ref: 43015
CYLINDER-ASSY-MASTER,
€ 289.00
43020
430201067
ref: 43020
PISTON-COMP-BRAKE,RR
€ 47.50
43026
430261051
ref: 43026
CAP-BRAKE, RR
€ 25.00
43027
430271051
ref: 43027
PLATE-DIAPHRAGM
€ 4.00
43028
430281057
ref: 43028
DIAPHRAGM
€ 13.00
43059
430591460
ref: 43059
HOSE-BRAKE,RR MASTER
€ 15.00
43059A
430591466
ref: 43059A
HOSE-BRAKE,RR
€ 68.50
43078
430781058
ref: 43078
RESERVOIR,RR MASTER C
€ 20.00
59071
590711132
ref: 59071
JOINT,RR MASTER CYLIN
€ 15.00
92001
920011460
ref: 92001
BOLT,6X20
€ 2.50
92002
920021442
ref: 92002
BOLT,SOCKET,8X25
€ 3.00
92002A
920021888
ref: 92002A
BOLT,OIL,L=23
€ 3.50
92009
920091288
ref: 92009
SCREW,6X14
€ 2.00
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
€ 1.50
92022A
920221601
ref: 92022A
WASHER,CIRCRIP
€ 5.00
92037
920371547
ref: 92037
CLAMP
€ 8.50
92037A
920371856
ref: 92037A
CLAMP,HOSE
€ 7.00
92037B
920371896
ref: 92037B
CLAMP,HOSE
€ 15.50
92043
920431303
ref: 92043
PIN,8MM
€ 2.50
130
130J0610
ref: 130
BOLT-FLANGED
€ 1.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
