SUSPENSION
ZX1000B3 1990 EUROPE UK GR NR SD

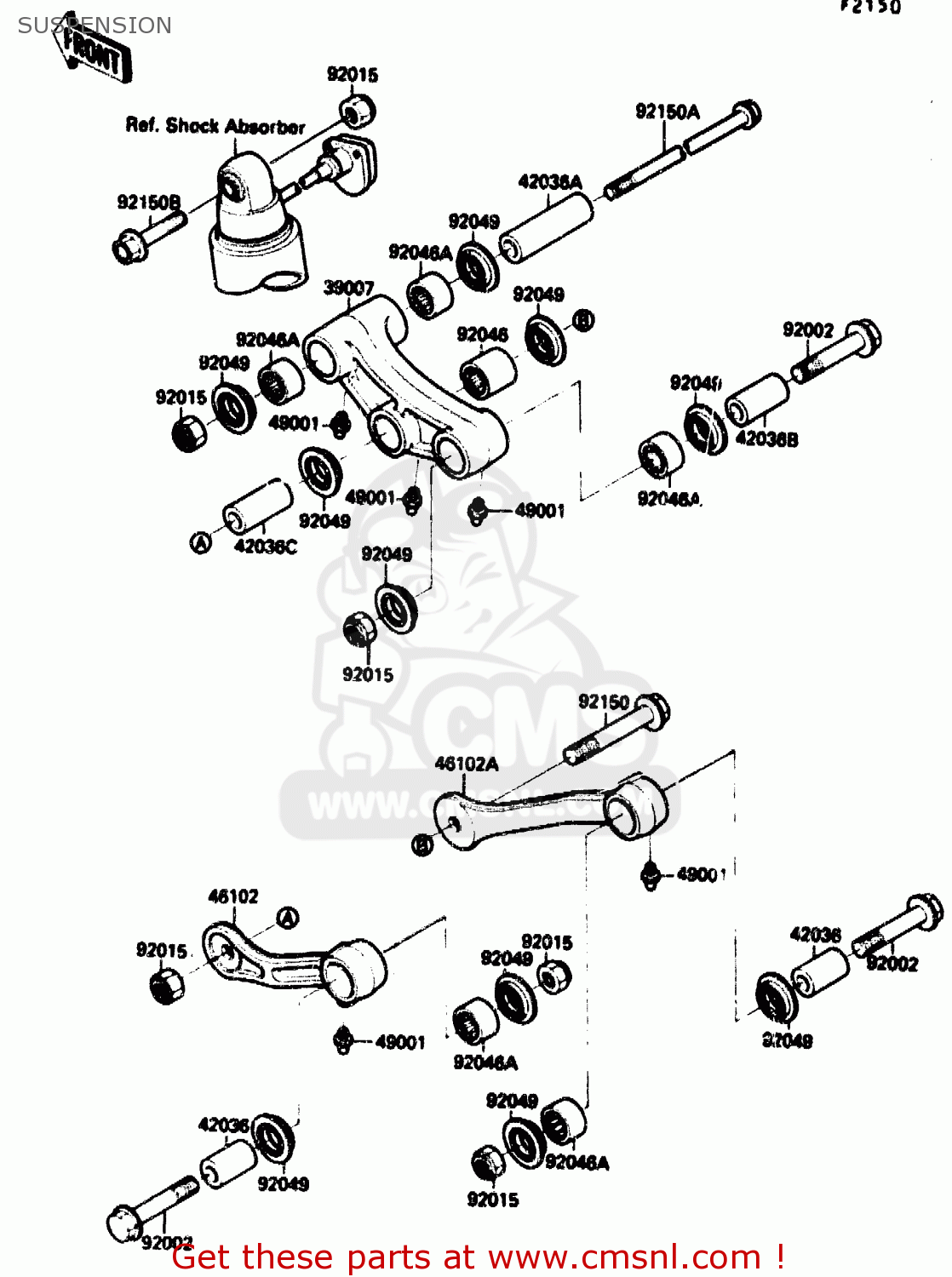

Suspension diagram ZX1000B3 1990 EUROPE UK GR NR SD
SUSPENSION ZX1000B3 1990 EUROPE UK GR NR SD
×
prices are in EUR
ref
part #
description
quantity
39007
390071107
ref: 39007
ARM-SUSP,UNI TRAK
€ 145.50
42036
420361077
ref: 42036
SLEEVE,ARM,RR
€ 11.50
42036A
420361079
ref: 42036A
SLEEVE,12.1X20X70
€ 19.00
42036B
420361108
ref: 42036B
SLEEVE,12.1X20X40
€ 14.00
42036C
420361129
ref: 42036C
SLEEVE,12.1X20X44
€ 14.50
46102
461021248
ref: 46102
ROD,SUSPENSION,LH
€ 91.50
46102A
461021249
ref: 46102A
ROD,SUSPENSION,RH
€ 91.50
49001
490011051
ref: 49001
NIPPLE-GREASE,ROD BOL
€ 2.00
92002
920021464
ref: 92002
BOLT,FLANGED,12X60
€ 8.50
92015
920151190
ref: 92015
NUT,LOCK,12MM,BLACK
€ 4.50
92046
920461110
ref: 92046
BEARING-NEEDLE,BM2027
€ 22.50
92046A
920461112
ref: 92046A
BEARING-NEEDLE,BM2027
€ 21.50
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
€ 6.50
92150
921501115
ref: 92150
BOLT,FLANGED,12X70
€ 6.00
92150A
921501116
ref: 92150A
BOLT,FLANGED,12X165
€ 14.00
92150B
921501191
ref: 92150B
BOLT
€ 6.50
