FUEL TANK (ZX1000-B3)
ZX1000B3 1990 EUROPE UK GR NR SD

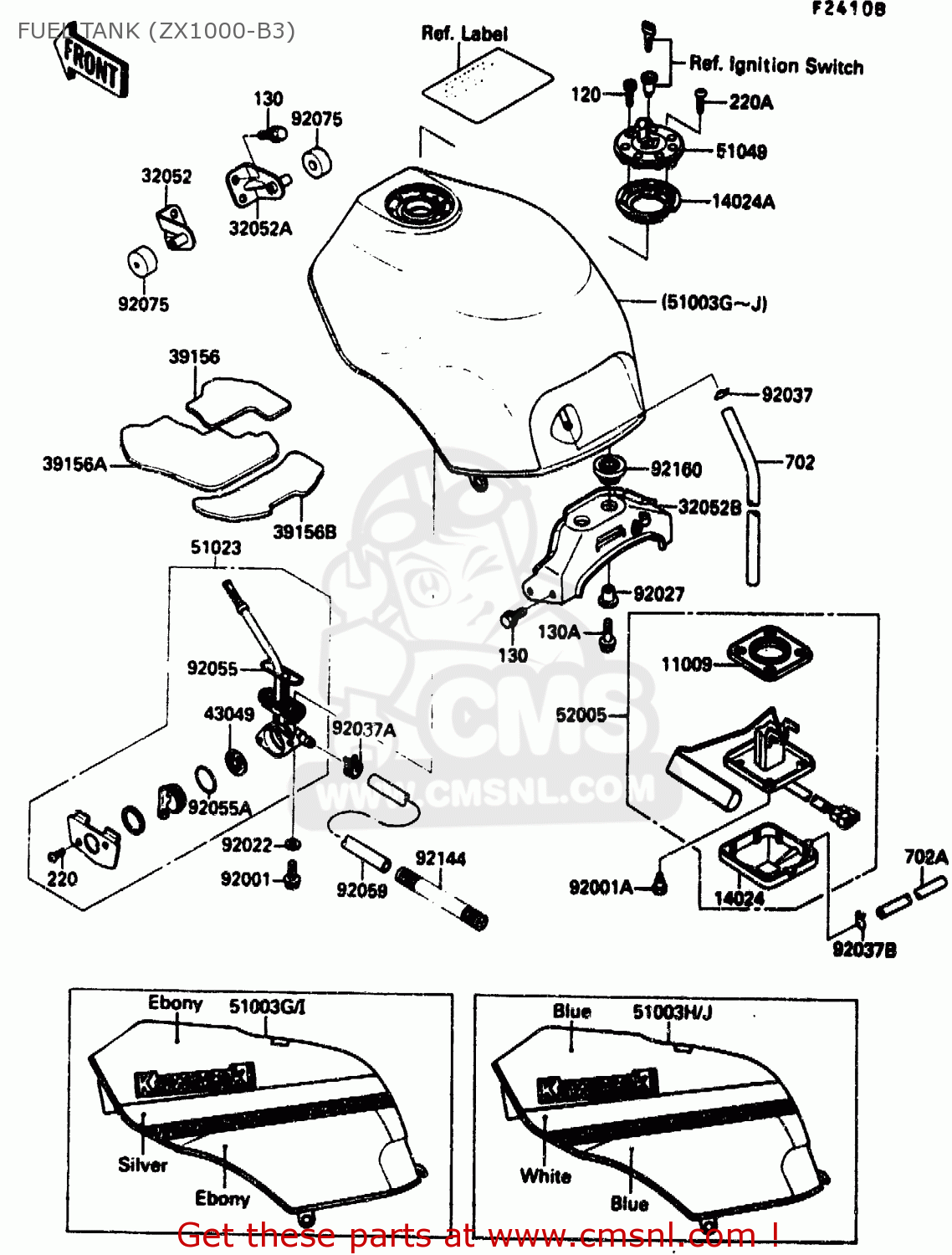

Fuel tank (zx1000-b3) diagram ZX1000B3 1990 EUROPE UK GR NR SD
FUEL TANK (ZX1000-B3) ZX1000B3 1990 EUROPE UK GR NR SD
×
prices are in EUR
ref
part #
description
quantity
11009
110091656
ref: 11009
GASKET,FUEL GAUGE (NAS)
€ 14.50
14024
140251536
ref: 14024
COVER,FUEL GAGE
€ 11.50
14024A
140251913
ref: 14024A
COVER,TANK CAP
€ 13.50
32052
320521268
ref: 32052
BRACKET-TANK,FR,LH
€ 6.50
32052A
320521269
ref: 32052A
BRACKET-TANK,FR,RH
€ 6.00
32052B
320521270
ref: 32052B
BRACKET-TANK,RR
€ 20.00
39156
391561169
ref: 39156
EU, NR, SD, UK, WG
PAD,FUEL TANK,FR
€ 18.50
39156A
391561170
ref: 39156A
EU, NR, SD, UK, WG
PAD,FUEL TANK,CNT
€ 31.50
39156B
391561171
ref: 39156B
EU, NR, SD, UK, WG
PAD,FUEL TANK,RR
€ 35.50
43049
430491066
ref: 43049
PACKING,TAP VALVE (NAS)
€ 5.00
51003G
510035118DE
ref: 51003G
EU, GR, NR, UK
TANK-COMP-FUEL,EBONY/
€ 760.00
51003H
510035119S3
ref: 51003H
EU, GR, NR, SD, UK
TANK-COMP-FUEL,BLUE/W
€ 1,005.50
51003I
510035126DE
ref: 51003I
WG
TANK-COMP-FUEL, EBONY/SILVER
€ 0.00
51003J
510035127S3
ref: 51003J
WG
TANK-COMP-FUEL, BLUE/WHITE
€ 1,005.50
51023
510231151
ref: 51023
TAP-ASSY,FUEL
€ 72.50
51049
510491079
ref: 51049
CAP-TANK,FUEL
€ 106.50
52005
520051096
ref: 52005
GAUGE,FUEL
€ 94.50
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92001A
920011705
ref: 92001A
BOLT,FUEL GAGE
€ 2.50
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
€ 2.50
92027
920271847
ref: 92027
COLLAR,6=16.1
€ 4.00
92037
92037010
ref: 92037
CLAMP-FUEL PIPE
€ 2.50
92037A
920371181
ref: 92037A
CLAMP
€ 1.00
92037B
92037147
ref: 92037B
CLAMP,CHAIN OILER
€ 4.50
92055
920551112
ref: 92055
RING-/,FUEL TAP PACKI
€ 3.00
92055A
920551419
ref: 92055A
RING-O,TAP LEVER
€ 3.00
92059
920591932
ref: 92059
TUBE,8X13X270
€ 6.50
92075
92075125
ref: 92075
DAMPER RUBBER-FL TANK
€ 4.00
92144
921441347
ref: 92144
SPRING,PROTECTOR
€ 9.00
92160
921601046
ref: 92160
DAMPER
€ 3.50
120
120S0512
ref: 120
BOLT-SOCKET
€ 1.00
130
130J0614
ref: 130
BOLT-FLANGED,6X14,BLA
€ 1.50
130A
130J0625
ref: 130A
BOLT-FLANGED,6X25
€ 2.00
220
220C0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220C0508
ref: 220A
SCREW-PAN-CROS
€ 1.00
702
702A07400
ref: 702
TUBE,RUBBER
€ 9.50
702A
702A07640
ref: 702A
TUBE-RUBBER,7X10X640
€ 9.50
