COWLING (ZX1000-B3)
ZX1000B3 1990 EUROPE UK GR NR SD

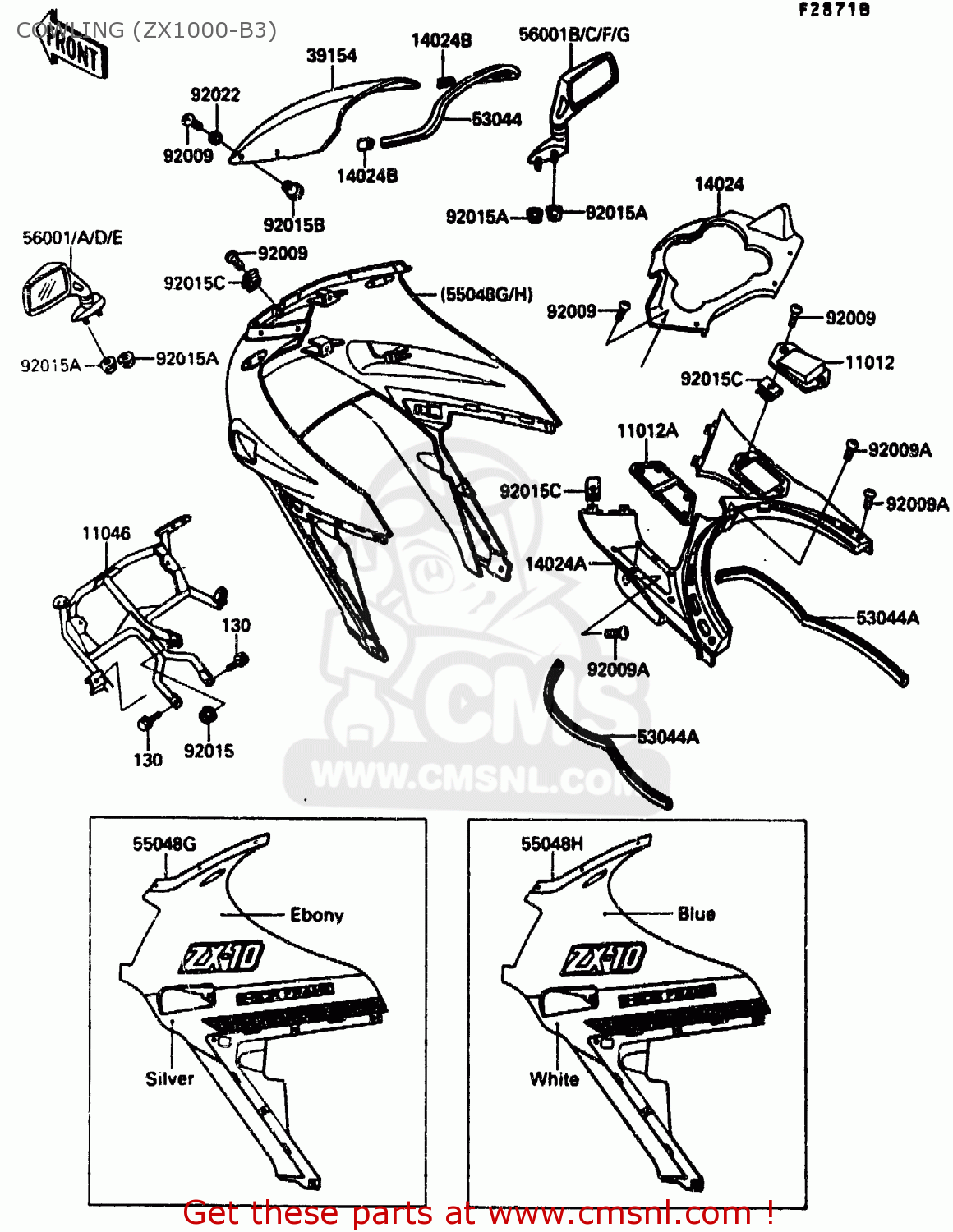

Cowling (zx1000-b3) diagram ZX1000B3 1990 EUROPE UK GR NR SD
COWLING (ZX1000-B3) ZX1000B3 1990 EUROPE UK GR NR SD
×
prices are in EUR
ref
part #
description
quantity
11012
110121654
ref: 11012
CAP,INNER COWLING,RH
€ 12.00
11012A
110121656
ref: 11012A
CAP,INNER COWLING,LH
€ 31.50
11046
110461251
ref: 11046
BRACKET,UPPER COWLING
€ 204.50
14024
140241642
ref: 14024
COVER,INNER COWLING,F
€ 52.00
14024A
140241643
ref: 14024A
COVER,INNER COWLING,R
€ 106.00
14024B
140241730
ref: 14024B
COVER,TRIM END
€ 3.00
39154
391541090
ref: 39154
WINDSHIELD
€ 251.00
53044
530441203
ref: 53044
TRIM,L=720
€ 19.00
53044A
530441210
ref: 53044A
TRIM,L=685
€ 19.00
55048G
550485362DE
ref: 55048G
EU, GR, NR, UK, WG
COWLING.,UPP,EBONY/SI
€ 786.50
55048H
550485366S3
ref: 55048H
COWLING.,UPP,BLUE/WHI
€ 746.50
56001
560011293M4
ref: 56001
EU, UK
MIRROR-ASSY,LH,L.P.BL
€ 94.50
56001A
5600112936C
ref: 56001A
EU, UK
MIRROR-ASSY,LH,EBONY
€ 98.00
56001B
560011294M4
ref: 56001B
EU, UK
MIRROR-ASSY,RH,L.P.BL
€ 101.00
56001C
5600112946C
ref: 56001C
EU, UK
MIRROR-ASSY,RH,EBONY
€ 98.00
56001D
560011325M4
ref: 56001D
GR, NR, SD, WG
MIRROR-ASSY,LH,L.P.BL
€ 101.00
56001E
5600113256C
ref: 56001E
GR, NR, WG
MIRROR-ASSY,LH,EBONY
€ 101.00
56001F
560011326M4
ref: 56001F
GR, NR, SD, WG
MIRROR-ASSY,RH,L.P.BL
€ 94.50
56001G
5600113266C
ref: 56001G
GR, NR, WG
MIRROR-ASSY,RH,EBONY
€ 94.50
92009
920091301
ref: 92009
SCREW,5X16
€ 0.50
92009A
920091530
ref: 92009A
SCREW,6X10
€ 2.50
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92015A
920151233
ref: 92015A
NUT,FLANGED,6MM
€ 3.50
92015B
920151640
ref: 92015B
NUT
€ 5.00
92015C
920151710
ref: 92015C
NUT
€ 4.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
€ 2.50
130
130J0812
ref: 130
BOLT-FLANGED
€ 0.50
