CLUTCH MASTER CYLINDER
ZX1000B3 1990 EUROPE UK GR NR SD

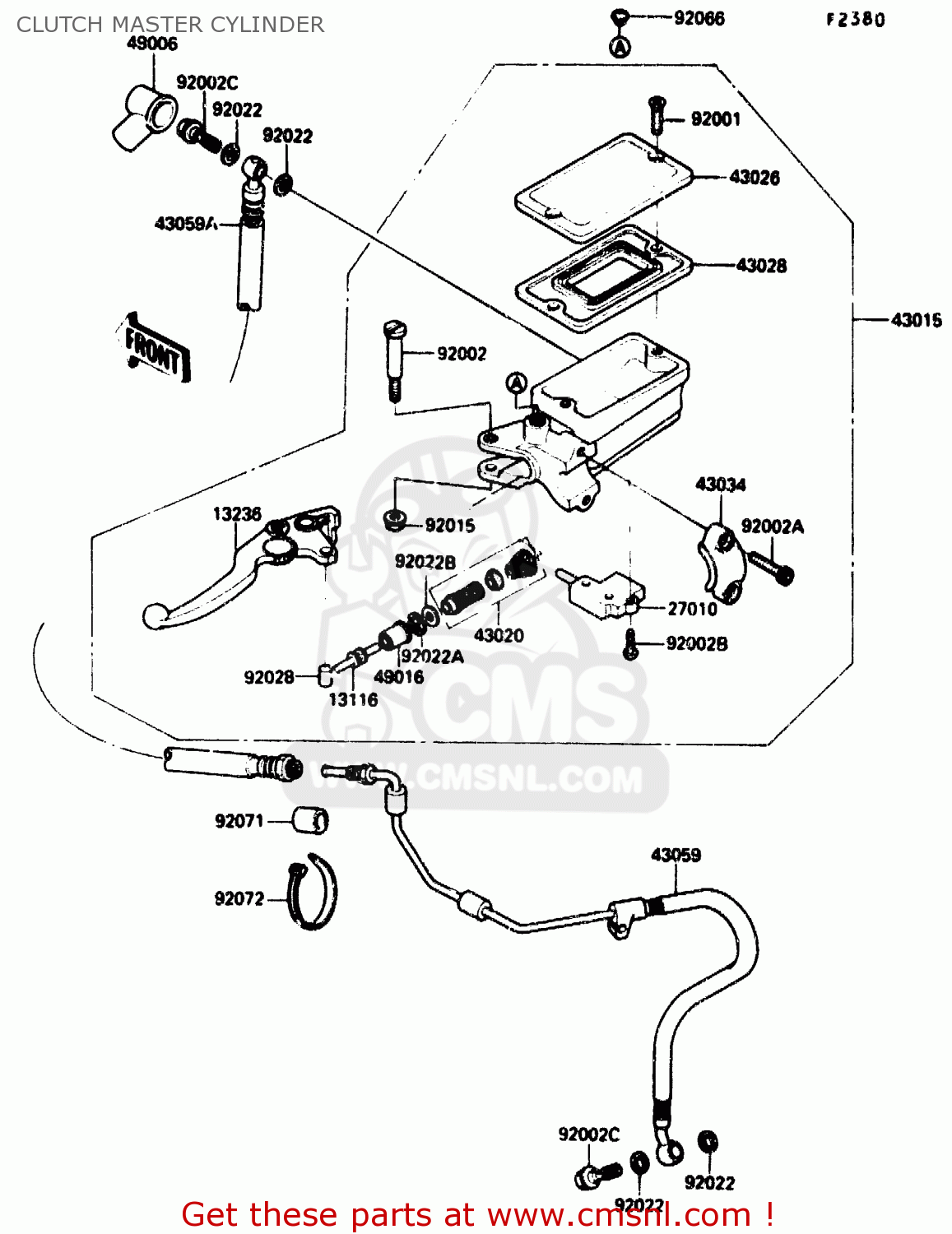

Clutch master cylinder diagram ZX1000B3 1990 EUROPE UK GR NR SD
CLUTCH MASTER CYLINDER ZX1000B3 1990 EUROPE UK GR NR SD
×
prices are in EUR
ref
part #
description
quantity
13116
131161110
ref: 13116
ROD-PUSH,MASTER CYLIN
€ 24.00
13236
132361186
ref: 13236
LEVER-COMP,CLUTCH
€ 45.50
27010
270101171
ref: 27010
SWITCH,CLUTCH
€ 25.00
43015
430151380
ref: 43015
CYLINDER-ASSY-MASTER,
€ 372.00
43020
430201055
ref: 43020
PISTON-COMP-BRAKE,CLU
€ 47.50
43026
430261052
ref: 43026
CAP-BRAKE,FR
€ 41.00
43028
430281058
ref: 43028
DIAPHRAGM,MASTER CYLI
€ 15.50
43034
430341054
ref: 43034
HOLDER-BRAKE,MASTER C
€ 26.00
43059
430591450
ref: 43059
HOSE-BRAKE,CLUTCH
€ 107.50
43059A
430591451
ref: 43059A
HOSE-BRAKE,CLUTCH
€ 60.50
49006
490061040
ref: 49006
BOOT,DUST
€ 7.50
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
€ 7.00
92001
920011727
ref: 92001
BOLT,MASTER CYLINDER
€ 2.50
92002
920021322
ref: 92002
BOLT,LEVER SET
€ 8.00
92002A
920021324
ref: 92002A
BOLT,SOCKET,6X20
€ 5.00
92002B
920021325
ref: 92002B
BOLT
€ 4.00
92002C
920021888
ref: 92002C
BOLT,OIL,L=23
€ 3.50
92015
920151233
ref: 92015
NUT,FLANGED,6MM
€ 3.50
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
€ 1.50
92022A
920221605
ref: 92022A
WASHER,PISTON
€ 3.00
92022B
920221606
ref: 92022B
WASHER,PISTON
€ 3.00
92028
920281310
ref: 92028
BUSHING,MASTER CYLIND
€ 10.00
92066
920661077
ref: 92066
CAP,REAR VIEW MIRROR
€ 3.00
92071
920711143
ref: 92071
GROMMET
€ 4.00
92072
920721195
ref: 92072
BAND,L=185
€ 1.00
