GEAR CHANGE MECHANISM
ZX1000B3 1990 EUROPE UK GR NR SD

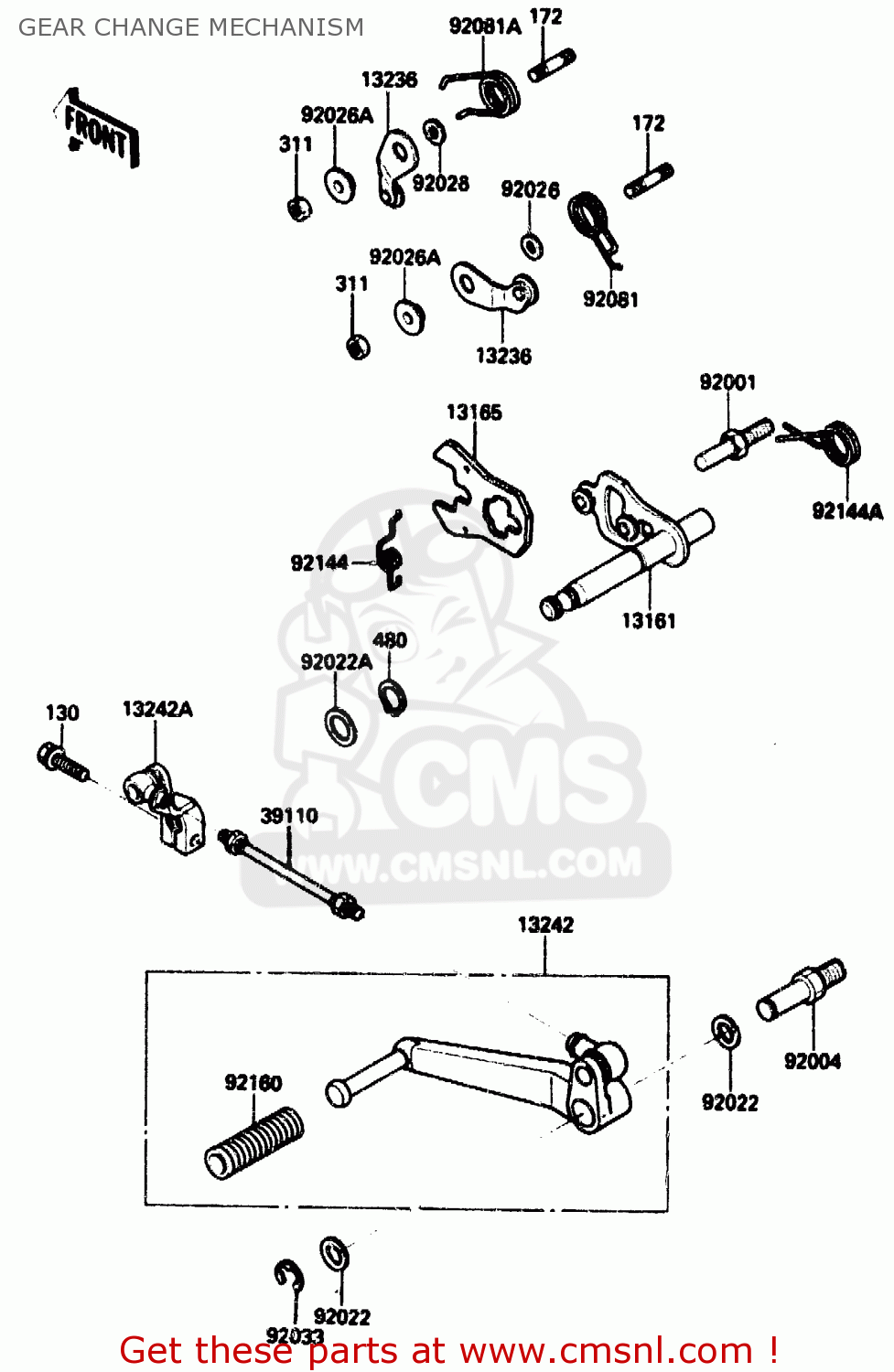

Gear change mechanism diagram ZX1000B3 1990 EUROPE UK GR NR SD
GEAR CHANGE MECHANISM ZX1000B3 1990 EUROPE UK GR NR SD
×
prices are in EUR
ref
part #
description
quantity
13161
131611155
ref: 13161
LEVER-COMP-CHANGE SHA
€ 76.50
13165
131651120
ref: 13165
PAWL
€ 9.50
13236
132361103
ref: 13236
LEVER-COMP,GEAR POSIT
€ 13.00
13242
132421191
ref: 13242
LEVER-ASSY-CHANGE,PED
€ 42.00
13242A
132421242
ref: 13242A
LEVER-ASSY-CHANGE,BOS
€ 26.00
39110
391101015
ref: 39110
ROD-ASSY-TIE,CHANGE L
€ 8.50
92001
920011455
ref: 92001
BOLT
€ 3.00
92004
920041164
ref: 92004
STUD,CHANGE PEDAL,PIV
€ 10.00
92022
920221593
ref: 92022
WASHER,12.5X22X1.2
€ 3.00
92022A
920221772
ref: 92022A
WASHER
€ 3.00
92026
92026094
ref: 92026
WASHER,THRUST
€ 6.50
92026A
920261217
ref: 92026A
SPACER
€ 3.50
92033
920331178
ref: 92033
RING-SNAP,TYPE-E,10MM
€ 2.50
92081
920811645
ref: 92081
SPRING
€ 9.00
92081A
920811742
ref: 92081A
SPRING
€ 7.00
92144
921441029
ref: 92144
SPRING
€ 5.00
92144A
921441345
ref: 92144A
SPRING,CHANGE PEDAL R
€ 11.50
92160
921601036
ref: 92160
DAMPER,CHANGE PEDAL
€ 3.50
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
€ 2.50
172
172G0614
ref: 172
STUD,6X14
€ 1.00
311
311G0600
ref: 311
NUT,6M/M
€ 0.50
480
480J1300
ref: 480
CIRCLIP-TYPE-C,13MM
€ 2.50
