FRONT FORK
ZX1000B3 1990 EUROPE UK GR NR SD

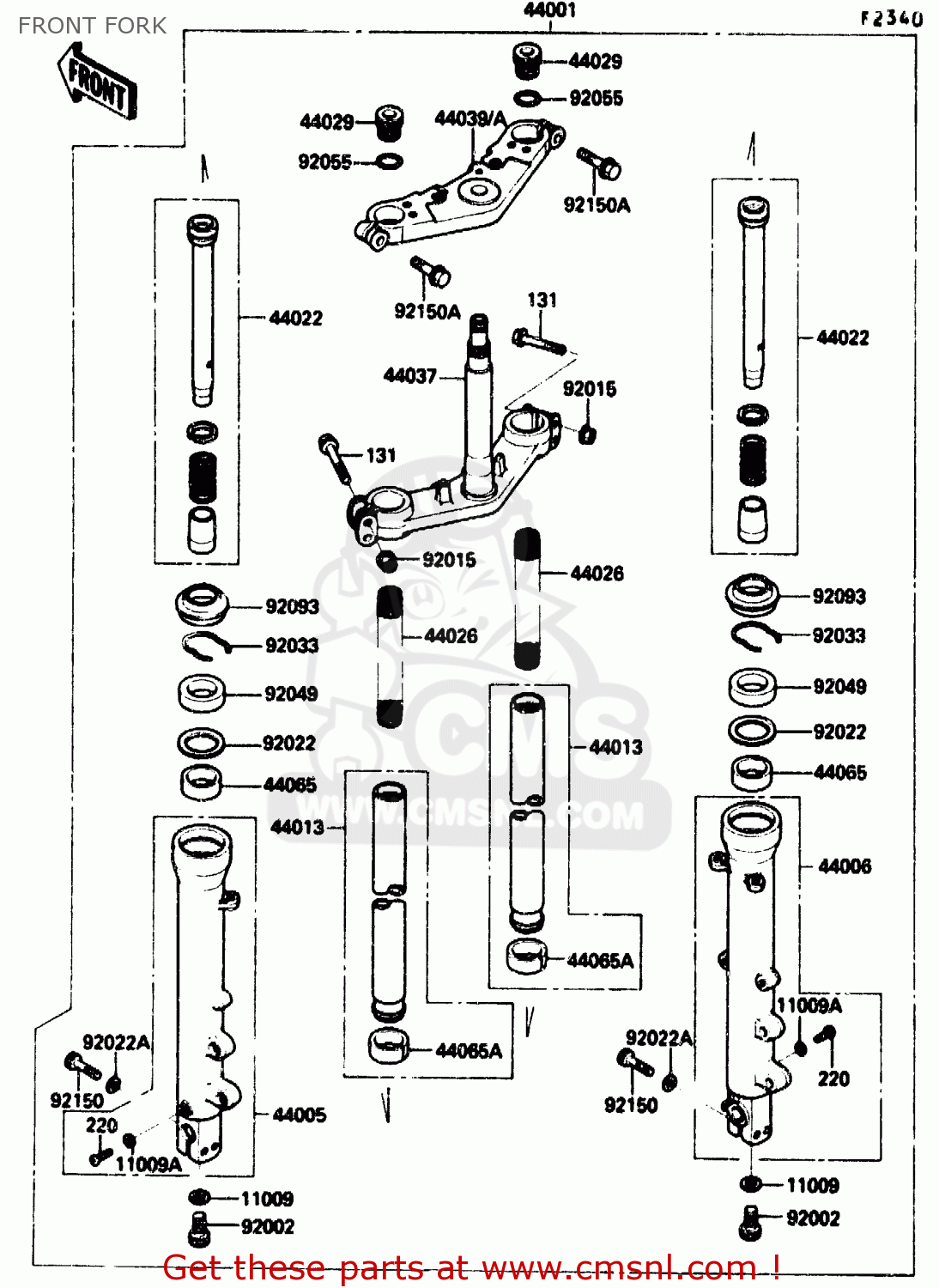

Front fork diagram ZX1000B3 1990 EUROPE UK GR NR SD
FRONT FORK ZX1000B3 1990 EUROPE UK GR NR SD
×
prices are in EUR
ref
part #
description
quantity
11009
110091553
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
44001
44001168810
ref: 44001
FORK-FRONT,BLACK
€ 3,241.50
44005
44005128310
ref: 44005
PIPE-LEFT FORK OUTER,
€ 190.00
44006
44006128010
ref: 44006
PIPE-RIGHT FORK OUTER
€ 169.00
44013
440131281
ref: 44013
PIPE-FORK INNER
€ 186.00
44022
440221231
ref: 44022
CYLINDER-FORK
€ 37.00
44026
440261400
ref: 44026
SPRING-FRONT FORK
€ 52.00
44029
440291133
ref: 44029
SEAT-FORK SPRING
€ 40.00
44037
440371233
ref: 44037
HOLDER-FORK UNDER
€ 340.00
44039
440391174EA
ref: 44039
HOLDER-FORK UPPER,M.B
€ 193.50
44065
440651085
ref: 44065
BUSHING-FRONT FORK
€ 21.00
44065A
440651086
ref: 44065A
BUSHING-FRONT FORK,IN
€ 21.00
92002
920021650
ref: 92002
BOLT,FORK DRAIN
€ 10.00
92015
920151485
ref: 92015
NUT,FLANGED,8MM
€ 3.50
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
€ 5.50
92022A
920221598
ref: 92022A
WASHER
€ 4.50
92033
920331036
ref: 92033
CIRCLIP
€ 4.00
92049
920491273
ref: 92049
SEAL-OIL,FORK OUTER
€ 13.00
92055
920551321
ref: 92055
RING-O
€ 1.00
92093
920931232
ref: 92093
SEAL,FORK OUTER TUBE
€ 14.00
92150
921501194
ref: 92150
BOLT,SOCKET,8X40
€ 2.00
92150A
921501210
ref: 92150A
BOLT,FLANGED,10X45
€ 6.00
131
131G0850
ref: 131
BOLT-FLANGED
€ 1.00
220
220E0408
ref: 220
SCREW-PAN HEAD,4X8
€ 2.50
