RADIATOR
ZX1000B3 1990 EUROPE UK GR NR SD

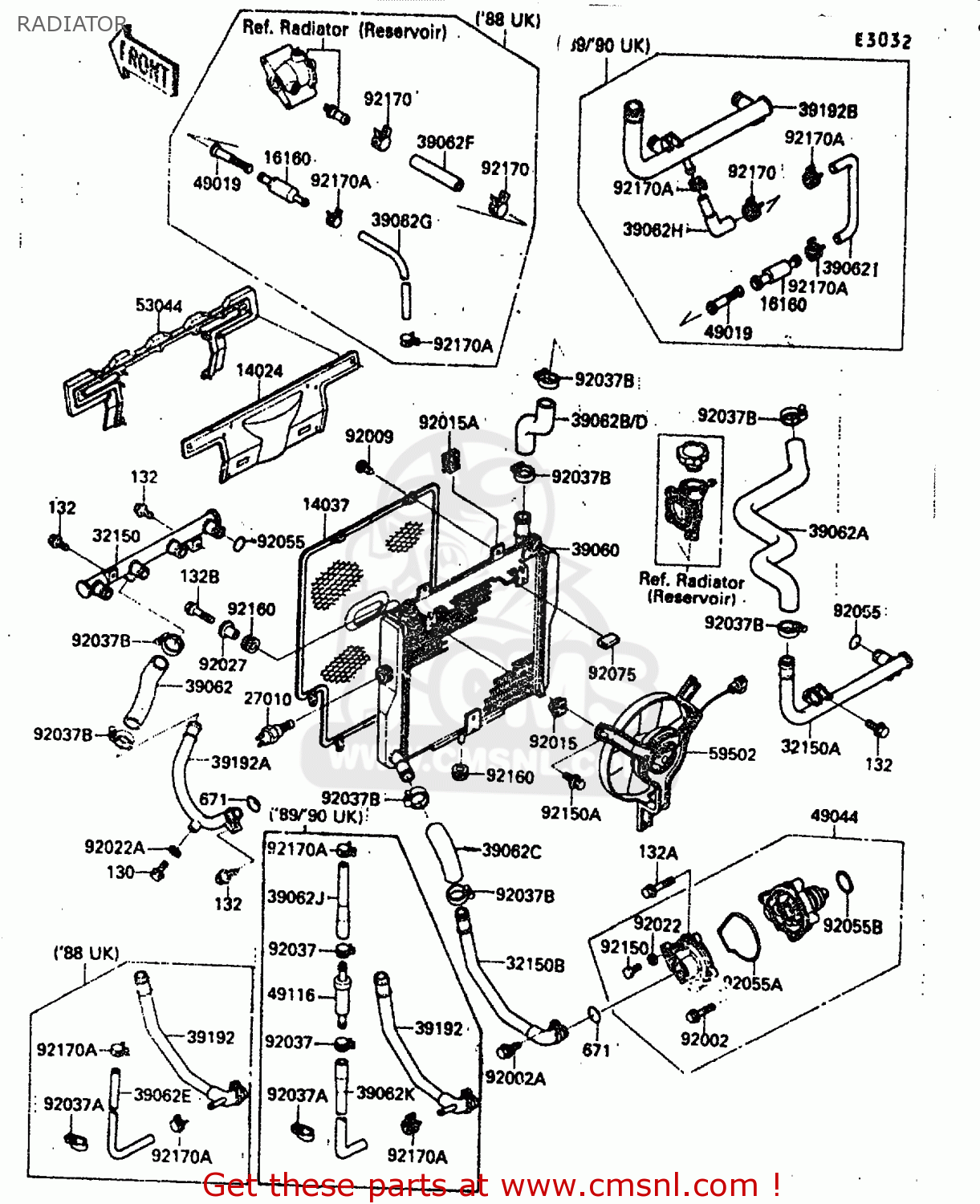

Radiator diagram ZX1000B3 1990 EUROPE UK GR NR SD
RADIATOR ZX1000B3 1990 EUROPE UK GR NR SD
×
prices are in EUR
ref
part #
description
quantity
14024
140241627
ref: 14024
COVER,HEAT
€ 26.50
14037
140371101
ref: 14037
SCREEN
€ 52.50
16160
161601151
ref: 16160
UK
BODY,FILTER
€ 6.50
27010
270101202
ref: 27010
SWITCH,FAN
€ 74.00
32150
321021919
ref: 32150
PIPE,CYLINDER
€ 82.00
32150A
321021920
ref: 32150A
EU, GR, NR, SD, WG
PIPE,HEAD
€ 69.50
32150B
321021921
ref: 32150B
EU, GR, NR, SD, WG
PIPE,RADIATOR-PUMP
€ 56.00
39060
390601081
ref: 39060
RADIATOR
€ 656.00
39062
390621276
ref: 39062
HOSE-COOLING,PUMP-CYL
€ 24.50
39062A
390621277
ref: 39062A
HOSE-COOLING,HEAD-THE
€ 46.50
39062B
390621278
ref: 39062B
HOSE-COOLING,THERMO-R
€ 12.50
39062C
390621279
ref: 39062C
HOSE-COOLING,RADIATOR
€ 14.50
39062H
390621335
ref: 39062H
UK
HOSE-COOLING
€ 4.50
39062I
390621345
ref: 39062I
UK
HOSE-COOLING
€ 5.50
39062J
390621378
ref: 39062J
UK
HOSE-COOLING,CHECK VA
€ 4.50
39062K
390621379
ref: 39062K
UK
HOSE-COOLING
€ 10.00
39192
391921001
ref: 39192
UK
PIPE-WATER
€ 69.50
39192A
391921011
ref: 39192A
PIPE-WATER,PUMP-CYLIN
€ 56.00
39192B
391921015
ref: 39192B
UK
PIPE-WATER,HEAD
€ 83.00
49019
490191068
ref: 49019
UK
FILTER-FUEL
€ 4.00
49044
490441062
ref: 49044
PUMP-WATER
€ 252.50
49116
491161081
ref: 49116
UK
VALVE-ASSY
€ 85.00
53044
530441201
ref: 53044
TRIM
€ 31.50
59502
595021067
ref: 59502
FAN-ASSY
€ 558.50
92002
920021392
ref: 92002
BOLT,6X22
€ 3.00
92002A
920021571
ref: 92002A
BOLT,6X16
€ 4.00
92009
920091261
ref: 92009
SCREW,TAPPING,6MM
€ 2.00
92015
920151487
ref: 92015
NUT
€ 3.00
92015A
920151758
ref: 92015A
NUT
€ 4.50
92022
920221976
ref: 92022
WASHER,6.2X6.2X1.0
€ 4.00
92022A
92022304
ref: 92022A
WASHER,PLAIN
€ 2.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92037
920371181
ref: 92037
UK
CLAMP
€ 1.00
92037A
920371608
ref: 92037A
UK
CLAMP
€ 5.50
92037B
920371985
ref: 92037B
CLAMP,COOLING HOSE
€ 7.50
92055
920551282
ref: 92055
RING-O
€ 3.00
92055A
920551423
ref: 92055A
RING-O,WATER PUMP INS
€ 6.00
92055B
920551424
ref: 92055B
RING-O,33.2X2.4
€ 4.00
92075
920751446
ref: 92075
DAMPER,SIDE COVER
€ 3.00
92150
920021391
ref: 92150
BOLT,6X10
€ 2.50
92150A
921501186
ref: 92150A
BOLT
€ 3.00
92160
921601007
ref: 92160
DAMPER
€ 3.50
92170
921701118
ref: 92170
UK
CLAMP
€ 5.00
92170A
921702042
ref: 92170A
UK
CLAMP
€ 1.00
130
130J0616
ref: 130
BOLT-FLANGED,6X16
€ 1.50
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132J0640
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132J0825
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
671
671B2525
ref: 671
O RING,25MM
€ 3.00
