BRAKE PEDAL
ZX1000B3 1990 EUROPE UK GR NR SD

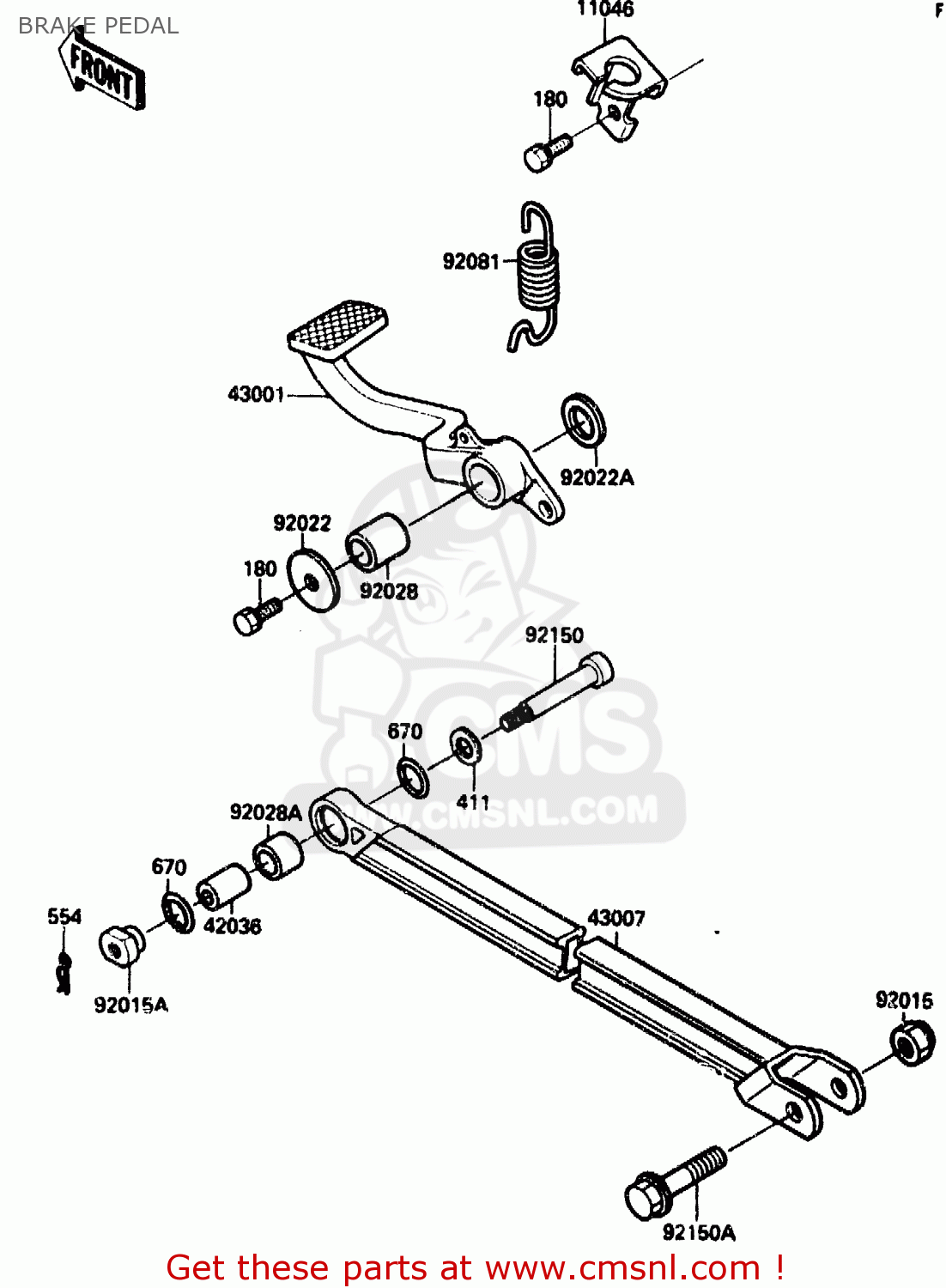

Brake pedal diagram ZX1000B3 1990 EUROPE UK GR NR SD
BRAKE PEDAL ZX1000B3 1990 EUROPE UK GR NR SD
×
prices are in EUR
ref
part #
description
quantity
11046
110461252
ref: 11046
BRACKET,REAR BRAKE SW
€ 5.50
42036
420361242
ref: 42036
SLEEVE,10.1X16X20
€ 9.50
43001
430011261CE
ref: 43001
LEVER-BRAKE,PEDAL,SIL
€ 34.50
43007
430071140CE
ref: 43007
ROD-TORQUE,SILVER NO.
€ 72.00
92015
920151133
ref: 92015
NUT,CAP,LOCK,8MM
€ 5.00
92015A
920151747
ref: 92015A
NUT,8MM
€ 12.00
92022
920221282
ref: 92022
WASHER,7X28X1.6
€ 3.00
92022A
92022326
ref: 92022A
WASHER,15.3X24X1
€ 2.50
92028
920281282
ref: 92028
BUSHING,BRAKE PEDAL
€ 9.50
92028A
920281468
ref: 92028A
BUSHING
€ 6.00
92081
920811833
ref: 92081
SPRING,BRAKE PEDAL
€ 7.00
92150
921501167
ref: 92150
BOLT,SOCKET,8X61
€ 12.00
92150A
921501168
ref: 92150A
BOLT,FLANGED,8X40
€ 2.00
180
180H0614
ref: 180
BOLT-UPSET-WS
€ 1.00
411
411D1000
ref: 411
WASHER-PLAIN,10MM
€ 3.00
554
554A0800
ref: 554
PIN-SNAP,8MM
€ 1.00
670
670B2016
ref: 670
O RING,16MM
€ 1.00
