CYLINDER HEAD
ZX1000B3 1990 EUROPE UK GR NR SD

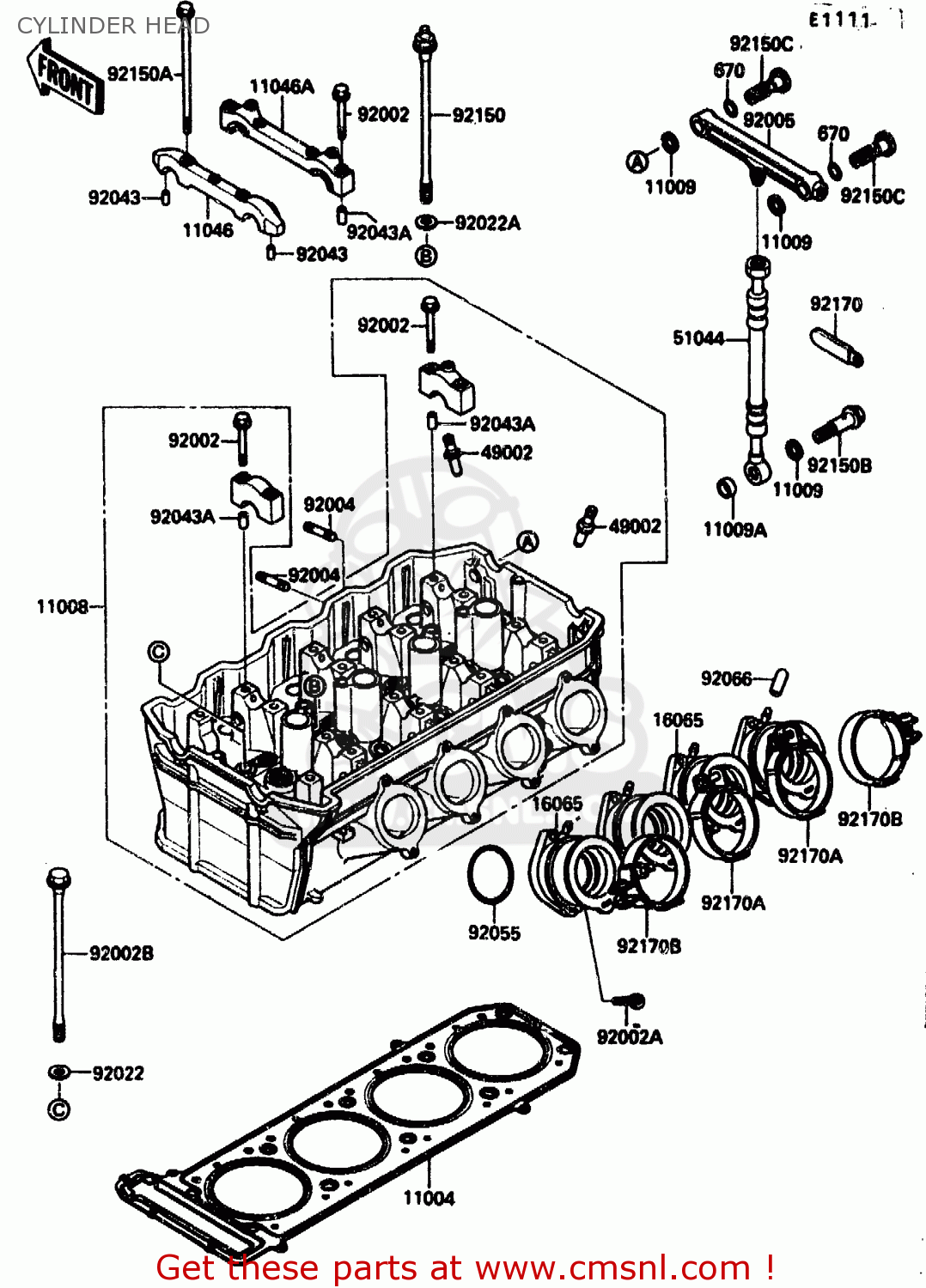

Cylinder head diagram ZX1000B3 1990 EUROPE UK GR NR SD
CYLINDER HEAD ZX1000B3 1990 EUROPE UK GR NR SD
×
prices are in EUR
ref
part #
description
quantity
11004
110041181
ref: 11004
GASKET-HEAD (NAS)
€ 56.00
11008
110081207
ref: 11008
HEAD-COMP-CYLINDER
€ 1,573.00
11009
110091461
ref: 11009
GASKET,14X19.5X1.4 (NAS)
€ 3.50
11009A
110091726
ref: 11009A
GASKET,14X20X10 (NAS)
€ 4.50
11046
110461150
ref: 11046
BRACKET,CAMSHAFT,#9
€ 34.00
11046A
110461151
ref: 11046A
BRACKET,CAMSHAFT,#10
€ 34.00
16065
160651182
ref: 16065
HOLDER-CARBURETOR
€ 20.50
49002
490021097
ref: 49002
GUIDE-VALVE
€ 18.50
51044
510441094
ref: 51044
TUBE-ASSY
€ 135.00
92002
920021756
ref: 92002
BOLT,6X40
€ 3.00
92002A
920021778
ref: 92002A
BOLT,SOCKET,6X16
€ 3.00
92002B
920021943
ref: 92002B
BOLT,10X164
€ 10.50
92004
920041181
ref: 92004
STUD,8X22
€ 3.00
92005
920051168
ref: 92005
FITTING
€ 59.00
92022
920221591
ref: 92022
WASHER,10.5X20X1.6
€ 3.00
92022A
920221720
ref: 92022A
WASHER
€ 2.50
92043
920431262
ref: 92043
PIN,DOWEL,4.2X6X12
€ 2.50
92043A
920431263
ref: 92043A
PIN,DOWEL,6.2X8X14
€ 0.50
92055
920551401
ref: 92055
RING-O,43.7X1.9
€ 9.50
92066
92068006
ref: 92066
RUBBER PLUG
€ 2.50
92150
921501075
ref: 92150
BOLT,11X164
€ 13.50
92150A
921501076
ref: 92150A
BOLT,6X148
€ 5.00
92150B
921501077
ref: 92150B
BOLT,BANJO,12X40.5
€ 13.00
92150C
921501078
ref: 92150C
BOLT
€ 15.50
92170
920371997
ref: 92170
CLAMP
€ 3.00
92170A
921701066
ref: 92170A
CLAMP
€ 5.50
92170B
921701068
ref: 92170B
CLAMP
€ 4.00
670
670B2015
ref: 670
O RING,15MM
€ 1.00
