CARBURETOR PARTS
ZX1000B3 1990 EUROPE UK GR NR SD

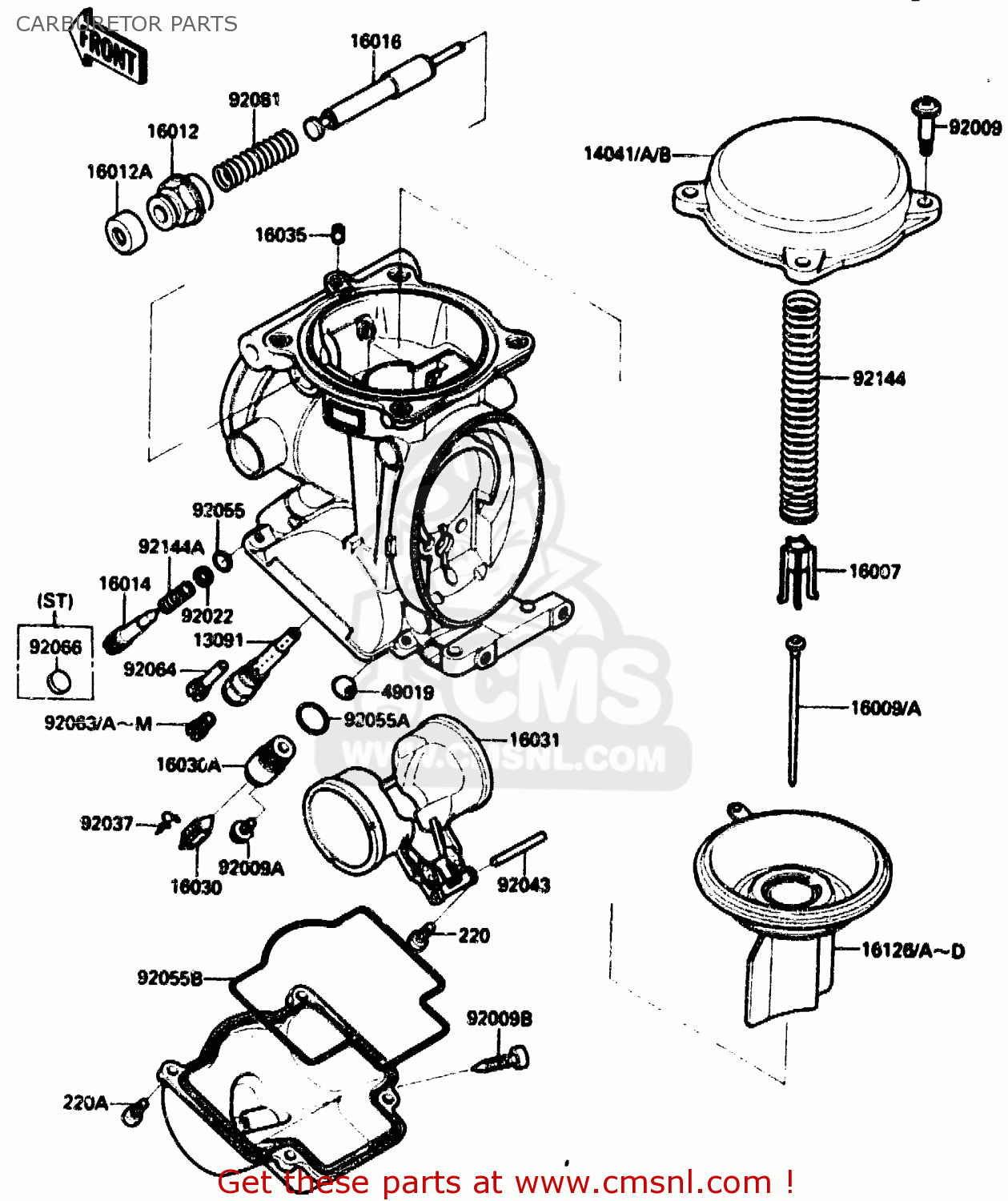

Carburetor parts diagram ZX1000B3 1990 EUROPE UK GR NR SD
CARBURETOR PARTS ZX1000B3 1990 EUROPE UK GR NR SD
×
prices are in EUR
ref
part #
description
quantity
13091
130911579
ref: 13091
HOLDER,NEEDLE JET
€ 15.50
14041
140411091
ref: 14041
EU, GR, NR, SD
CAP-CHAMBER,MIXING
€ 46.00
14041A
140411092
ref: 14041A
WG
CAP-CHAMBER,MIXING
€ 35.00
14041B
140411093
ref: 14041B
UK
CAP-CHAMBER,MIXING
€ 34.00
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
€ 16.50
16009
160091477
ref: 16009
EU, GR, NR, SD, WG
NEEDLE-JET,N14C
€ 18.00
16009A
160091496
ref: 16009A
UK
NEEDLE-JET,N54D
€ 20.50
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
€ 10.00
16014
160141064
ref: 16014
SCREW-PILOT AIR
€ 17.00
16016
160161061
ref: 16016
PLUNGER,STARTER
€ 30.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16030A
160301068
ref: 16030A
SEAT-VALVE,FLOAT
€ 42.50
16031
160311070
ref: 16031
FLOAT
€ 40.50
16035
160351055
ref: 16035
JET-AIR,LEAK
€ 10.00
16126
161261214
ref: 16126
EU, GR, NR, UK
VALVE,VACUUM
€ 151.00
16126C
161261217
ref: 16126C
WG
VALVE,VACUUM
€ 122.00
16126D
161261236
ref: 16126D
SD
VALVE
€ 111.00
49019
490193707
ref: 49019
FILTER-FUEL,STRAINER
€ 7.00
92009
920091549
ref: 92009
SCREW,4X4.4
€ 3.00
92009A
920091550
ref: 92009A
SCREW,4X8
€ 2.50
92009B
920091551
ref: 92009B
SCREW,DRAIN
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
€ 2.50
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
€ 4.00
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055A
920551425
ref: 92055A
RING-O,VALVE SEAT
€ 4.50
92055B
920551426
ref: 92055B
RING-O,FLOAT CHAMBER
€ 13.00
92063D
920631069
ref: 92063D
GR, NR, SD(RACING US
MAIN JET,2ND #125
€ 9.50
92063E
920631071
ref: 92063E
EU, UK, WG
JET-MAIN,#118
€ 9.50
92063F
920631072
ref: 92063F
EU, UK, WG (RACING U
MAIN JET 2ND #120
€ 9.50
92063G
920631073
ref: 92063G
EU, UK, WG (RACING U
MAIN JET,2ND #122
€ 9.50
92063H
920631074
ref: 92063H
GR, NR, SD (RACING U
MAIN JET,2ND #128
€ 9.50
92063I
920631075
ref: 92063I
GR, NR, SD
MAIN JET,2ND #130
€ 9.50
92063K
920631076
ref: 92063K
GR, NR, SD (RACING U
JET-MAIN,#132
€ 9.50
92063L
920631117
ref: 92063L
EU, UK, WG (RACING U
JET-MAIN,#112
€ 9.50
92063M
920631118
ref: 92063M
EU, UK, WG (RACING U
JET-MAIN,#115
€ 9.50
92064
920641119
ref: 92064
JET-PILOT,#38
€ 12.00
92081
920811761
ref: 92081
SPRING,STARTER PLUNGE
€ 6.00
92144
921441219
ref: 92144
SPRING,VACUUM VALVE
€ 12.50
92144A
921441349
ref: 92144A
SPRING,PILOT AIR SCRE
€ 6.00
220
220D0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220D0410
ref: 220A
UK
SCREW-PAN-CROS
€ 2.00
220A
220D0410
ref: 220A
EU, GR, NR, SD, WG
SCREW-PAN-CROS
€ 2.00
