REAR CALIPER
ZX1000B3 1990 EUROPE UK GR NR SD

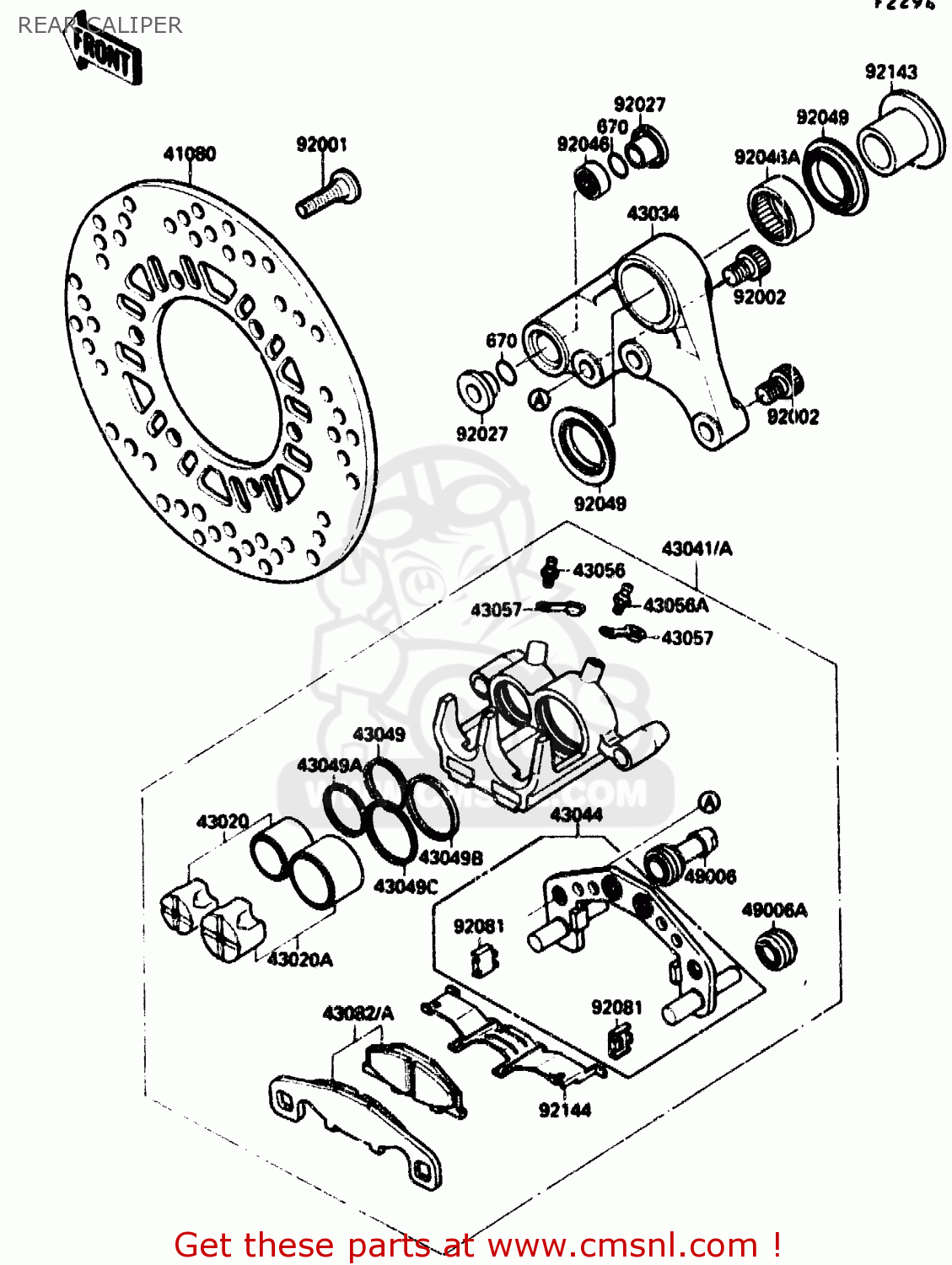

Rear caliper diagram ZX1000B3 1990 EUROPE UK GR NR SD
REAR CALIPER ZX1000B3 1990 EUROPE UK GR NR SD
×
prices are in EUR
ref
part #
description
quantity
41080
410801219CM
ref: 41080
DISC,RR,SILVER NO.1
€ 219.00
43020
430201068
ref: 43020
PISTON-COMP-BRAKE
€ 49.00
43020A
430201069
ref: 43020A
PISTON-COMP-BRAKE
€ 49.00
43034
430341090CE
ref: 43034
HOLDER-BRAKE,REAR CAL
€ 104.00
43041A
430411328DK
ref: 43041A
CALIPER-ASSY,RR,GOLD
€ 467.00
43044
430441067
ref: 43044
HOLDER-COMP-CALIPER
€ 126.00
43049
430491054
ref: 43049
PACKING,PISTON SEAL (NAS)
€ 9.00
43049A
430491055
ref: 43049A
PACKING,PISTON (NAS)
€ 7.50
43049B
430491056
ref: 43049B
PACKING,PISTON SEAL (NAS)
€ 9.00
43049C
430491057
ref: 43049C
PACKING,PISTON (NAS)
€ 8.00
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43056A
430561054
ref: 43056A
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
€ 3.00
43082A
430821104
ref: 43082A
PAD-ASSY-BRAKE (MCA)
€ 42.50
49006
490061094
ref: 49006
BOOT,CALIPER
€ 8.00
49006A
490061095
ref: 49006A
BOOT,CALIPER
€ 4.50
92001
920011951
ref: 92001
BOLT,SOCKET,8X30
€ 3.00
92002
920021713
ref: 92002
BOLT,SOCKET,10X17
€ 4.50
92027
920271040
ref: 92027
COLLAR,L=11.5
€ 12.50
92046
920461009
ref: 92046
BEARING-NEEDLE,HK1216
€ 14.50
92046A
920461111
ref: 92046A
BEARING-NEEDLE,BM2817
€ 21.50
92049
920491181
ref: 92049
SEAL-OIL
€ 7.50
92081
920811661
ref: 92081
SPRING,PAD STOPPER
€ 7.50
92143
921431043
ref: 92143
COLLAR,L=35
€ 30.00
92144
921441070
ref: 92144
SPRING,PAD
€ 18.50
670
670B2011
ref: 670
O RING,11MM
€ 1.00
