HEAD LAMP

ZX1000B3 1990 EUROPE UK GR NR SD

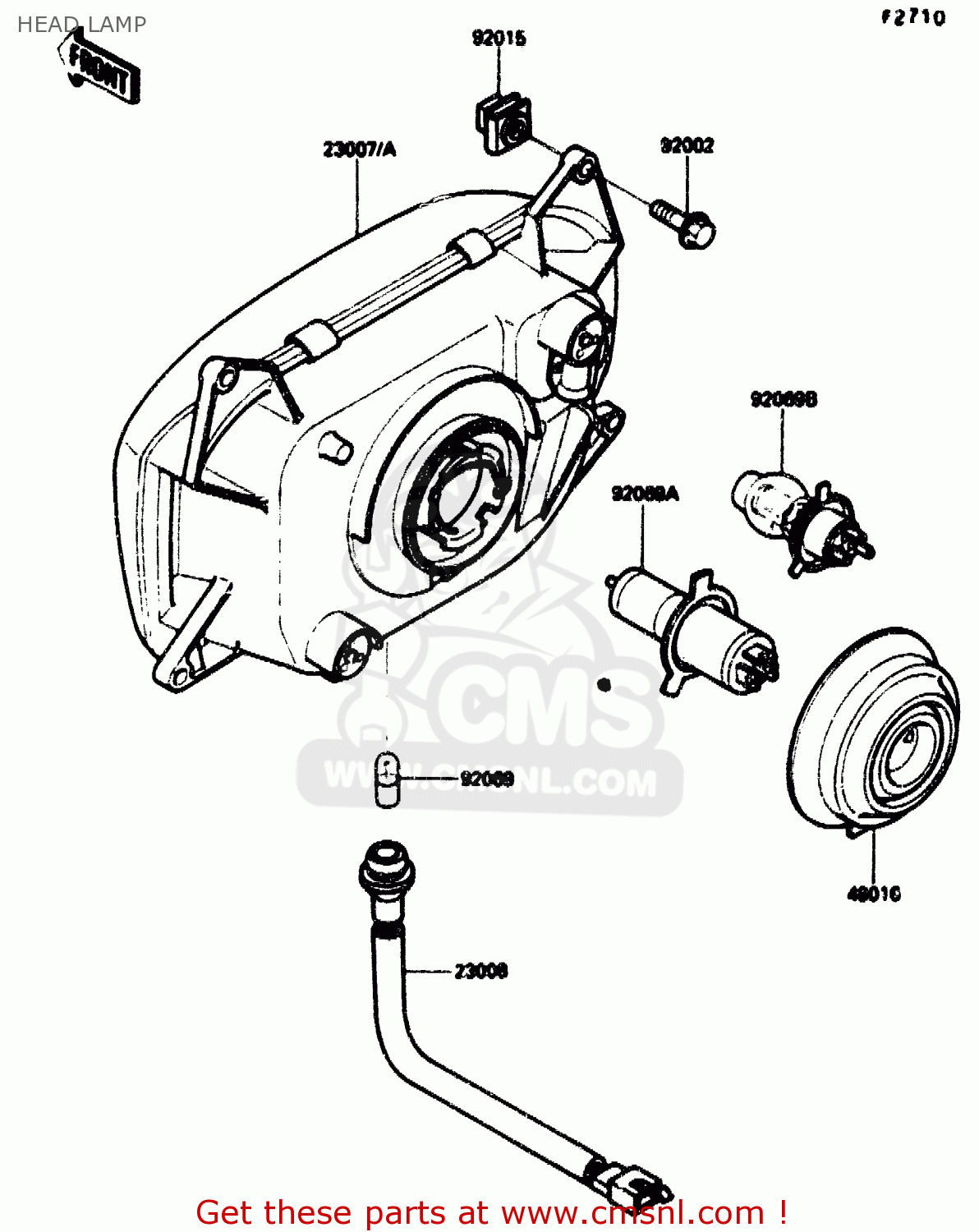

Head lamp diagram ZX1000B3 1990 EUROPE UK GR NR SD

prices are in EUR

ref

part #

description

quantity

23007

230071186
ref: 23007
EU, GR, NR, SD, WG

LENS-COMP,HEAD LAMP

€ 172.00

23007A

230071187
ref: 23007A
UK

LENS-COMP,HEAD LAMP

€ 325.00

23008

230081362
ref: 23008

SOCKET-ASSY,HEAD LAMP

€ 15.50

49016

490161108
ref: 49016

COVER-SEAL,HEAD LAMP

€ 11.00

92002

920021335
ref: 92002

BOLT,6X30

€ 2.50

92015

920151788
ref: 92015

NUT,CLIP,6MM

€ 5.00

92069

92069071
ref: 92069

BULB,12V 4W

€ 4.50

92069A

920691002
ref: 92069A

BULB,12V-60155W

€ 15.00
