VALVE
Z1000R2 1983 EUROPE UK IT NR SD ST

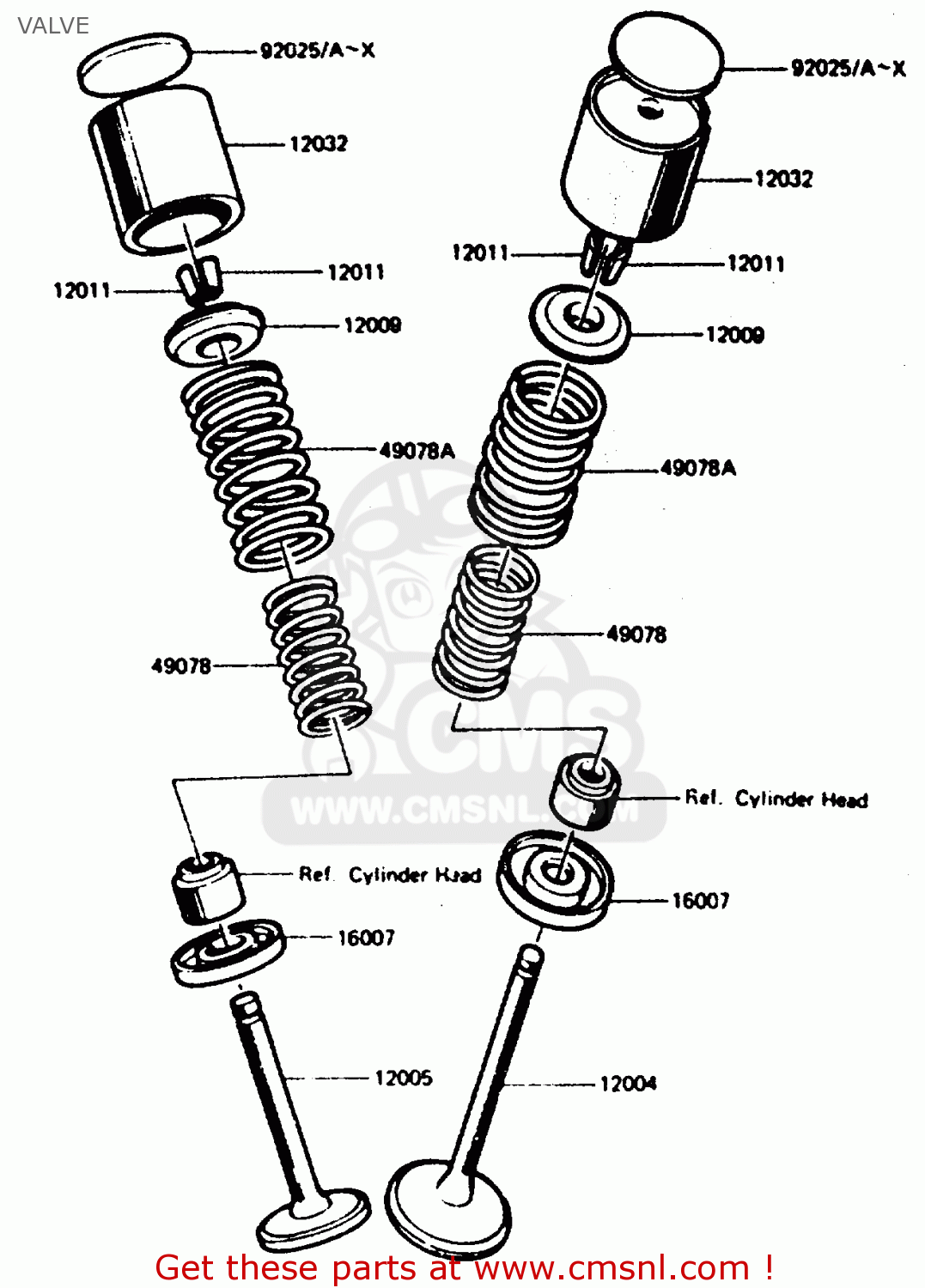

Valve diagram Z1000R2 1983 EUROPE UK IT NR SD ST
VALVE Z1000R2 1983 EUROPE UK IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
12004
120041013
ref: 12004
VALVE-INTAKE
€ 40.00
12005
120051011
ref: 12005
VALVE-EXHAUST
€ 82.00
12009
12009005
ref: 12009
RETAINER-VALVE SPRING
€ 9.00
12011
12011004
ref: 12011
COLLET,RETAINER
€ 3.50
12032
120321002
ref: 12032
TAPPET
€ 52.50
16007
160071024
ref: 16007
SEAT-SPRING,VALVE
€ 4.00
49078
490781001
ref: 49078
SPRING,VALVE,INNER
€ 11.00
49078A
490781002
ref: 49078A
SPRING,VALVE OUTER
€ 11.00
92025
12037001
ref: 92025
SHIM,T=2.00
€ 13.00
92025A
12037002
ref: 92025A
SHIM,T=2.05
€ 13.00
92025B
12037003
ref: 92025B
SHIM,T=2.10
€ 13.00
92025C
12037004
ref: 92025C
SHIM,T=2.15
€ 13.00
92025D
12037005
ref: 92025D
SHIM,T=2.20
€ 13.00
92025E
12037006
ref: 92025E
SHIM,T=2.25
€ 13.00
92025F
12037007
ref: 92025F
SHIM,T=2.30
€ 13.00
92025G
12037008
ref: 92025G
SHIM,T=2.35
€ 13.00
92025H
12037009
ref: 92025H
SHIM,T=2.40
€ 13.00
92025I
12037010
ref: 92025I
SHIM,T=2.45
€ 13.00
92025J
12037011
ref: 92025J
SHIM,T=2.50
€ 13.00
92025K
12037012
ref: 92025K
SHIM,T=2.55
€ 13.00
92025L
12037013
ref: 92025L
SHIM,T=2.60
€ 13.00
92025M
12037014
ref: 92025M
SHIM,T=2.65
€ 13.00
92025N
12037015
ref: 92025N
SHIM,T=2.70
€ 13.00
92025O
12037016
ref: 92025O
SHIM,T=2.75
€ 13.00
92025P
12037017
ref: 92025P
SHIM,T=2.80
€ 13.00
92025Q
12037018
ref: 92025Q
SHIM,T=2.85
€ 13.00
92025R
12037019
ref: 92025R
SHIM,T=2.90
€ 13.00
92025S
12037020
ref: 92025S
SHIM,T=2.95
€ 13.00
92025T
12037021
ref: 92025T
SHIM,T=3.00
€ 13.00
92025U
12037022
ref: 92025U
SHIM,T=3.05
€ 13.00
92025V
12037023
ref: 92025V
SHIM,T=3.10
€ 13.00
92025W
12037024
ref: 92025W
SHIM,T=3.15
€ 13.00
92025X
12037025
ref: 92025X
SHIM,T=3.20
€ 13.00
