FRONT MASTER CYLINDER
Z1000R2 1983 EUROPE UK IT NR SD ST

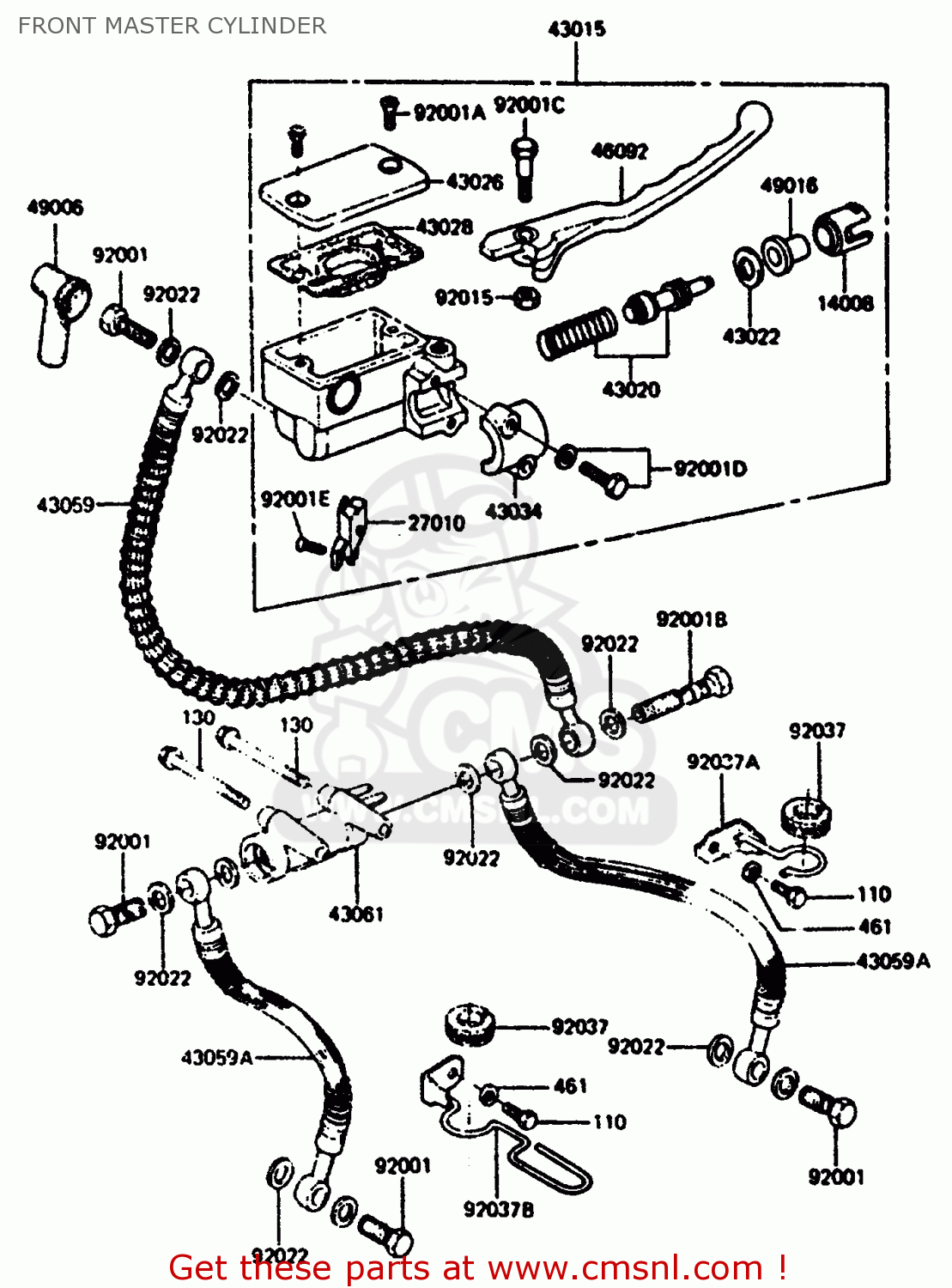

Front master cylinder diagram Z1000R2 1983 EUROPE UK IT NR SD ST
FRONT MASTER CYLINDER Z1000R2 1983 EUROPE UK IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
14008
140081035
ref: 14008
LINER,PISTON
€ 8.00
27010
270101056
ref: 27010
SWITCH,BRAKE
€ 24.50
43015
430151088
ref: 43015
CYLINDER-ASSY-MASTER,
€ 275.00
43020
430201028
ref: 43020
PISTON-COMP-BRAKE,FR
€ 59.00
43022
430221009
ref: 43022
STOPPER-BRAKE,PISTON
€ 3.50
43026
430261018
ref: 43026
CAP-BRAKE,FR
€ 26.50
43028
430281029
ref: 43028
DIAPHRAGM,MASTER CYLI
€ 17.50
43034
430341013
ref: 43034
HOLDER-BRAKE,MASTER C
€ 20.00
43059
430591183
ref: 43059
HOSE-BRAKE,FR,L=370
€ 59.00
43059A
430591184
ref: 43059A
HOSE-BRAKE,FR,L=550
€ 59.00
43061
430611004
ref: 43061
JOINT-BRAKE
€ 51.50
46092
460921026
ref: 46092
LEVER-GRIP,FRONT BRAK
€ 15.00
49006
490061067
ref: 49006
BOOT,DUST
€ 6.50
49016
490161041
ref: 49016
COVER-SEAL,BRAKE PIST
€ 8.50
92001
43066001
ref: 92001
BOLT-BRAKE HOSE OIL
€ 3.50
92001A
920011055
ref: 92001A
SCREW,COUNTERSUNK HED
€ 3.50
92001B
920011203
ref: 92001B
BOLT,OIL
€ 8.50
92001C
920011512
ref: 92001C
BOLT,6X37.3,BLACK
€ 5.50
92001D
920011513
ref: 92001D
BOLT,BOLT,6X25,W/WASH
€ 3.00
92001E
920011532
ref: 92001E
SCREW-COUNTERSUNK
€ 2.50
92015
920151171
ref: 92015
NUT,LOCK,6MM,BLACK
€ 2.00
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
€ 1.50
92037
43064006
ref: 92037
GROMMET,BRAKE HOSE
€ 2.50
92037A
920371217
ref: 92037A
CLAMP,BRAKE HOSE,RH
€ 13.00
92037B
920371296
ref: 92037B
CLAMP,BRAKE HOSE,LH
€ 19.00
110
110C0612
ref: 110
BOLT,6X12,BLACK
€ 1.00
130
130G0660
ref: 130
BOLT-FLANGED,6X60
€ 3.00
461
461K0600
ref: 461
WASHER-SPRING
€ 0.50
