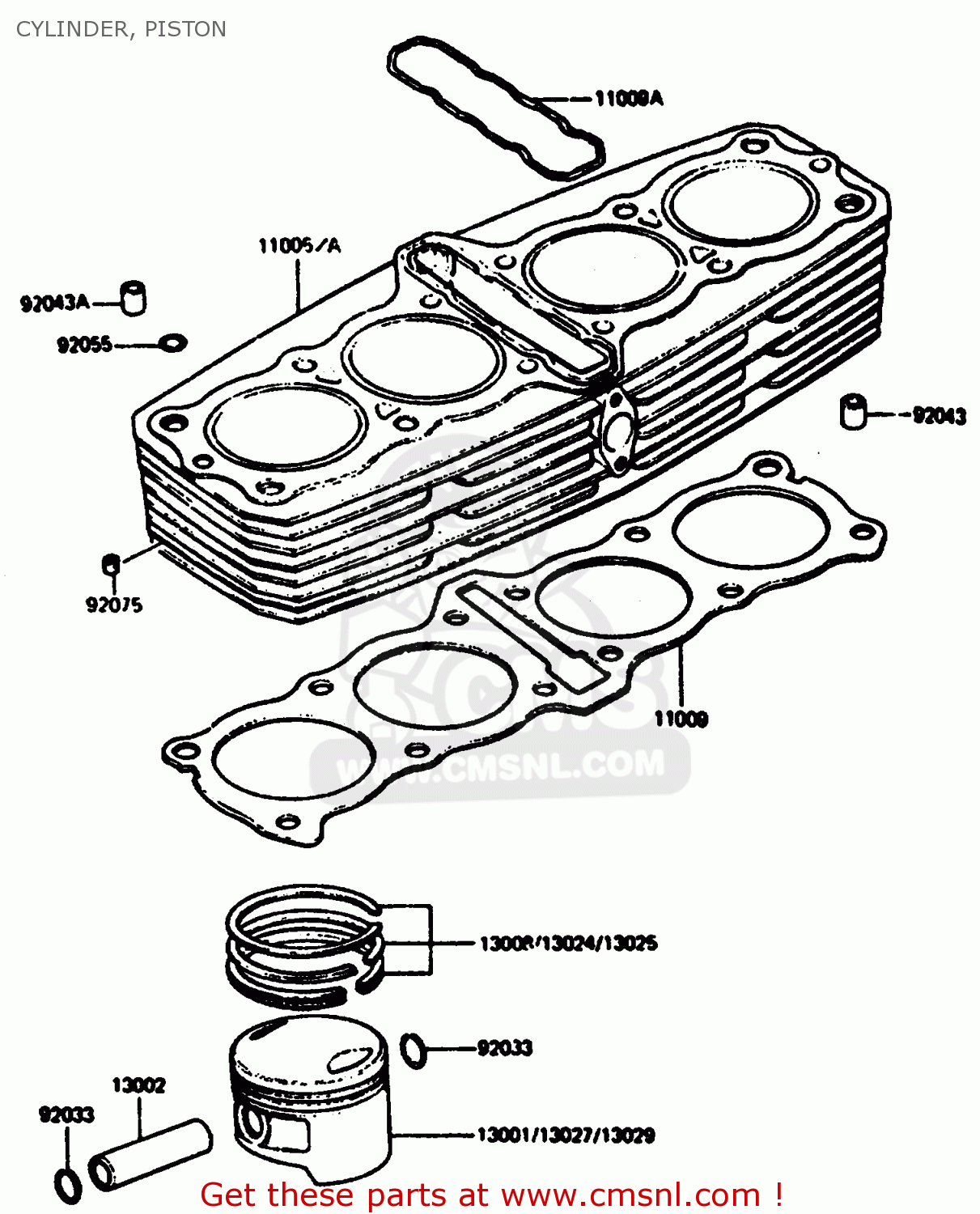

CYLINDER, PISTON

ref

part #

description

quantity

11005

110051118
ref: 11005
EU, FR, IT, NR, SD,

CYLINDER-ENGINE

€ 1,343.50

11005A

110051325
ref: 11005A
ST

CYLINDER-ENGINE,BLACK

€ 931.50

11009

110091207
ref: 11009

GASKET,CYLINDER BASE (MCA)

€ 23.00

11009A

110091208
ref: 11009A

GASKET,CYLINDER (NAS)

€ 61.50

13001

130011119
ref: 13001

PISTON-ENGINE,STD

€ 81.00

13002

130021013
ref: 13002

PIN-PISTON

€ 5.00

13008

130085056
ref: 13008

RING-SET-PISTON,STD

€ 64.00

13024

130245024
ref: 13024

RING-SET-PISTON LL,O/

€ 76.00

13025

130255024
ref: 13025

RING-SET-PISTON L,O/S

€ 94.00

13027

130271056
ref: 13027

PISTON-ENGINE LL,O/S

€ 107.50

13029

130291058
ref: 13029

PISTON-ENGINE L,O/S 0

€ 107.50

92033

920331054
ref: 92033

CIRCLIP,PISTON PIN

€ 2.00

92043

92042028
ref: 92043

PIN-DOWEL

€ 1.00

92043A

920431037
ref: 92043A

PIN,DOWEL,10X8.2X14

€ 0.50

92055

920551148
ref: 92055

RING-O,OD=18.5MM

€ 9.50

92075

92075074
ref: 92075
ST

DAMPER

€ 3.00
