CRANKCASE
Z1000R2 1983 EUROPE UK IT NR SD ST

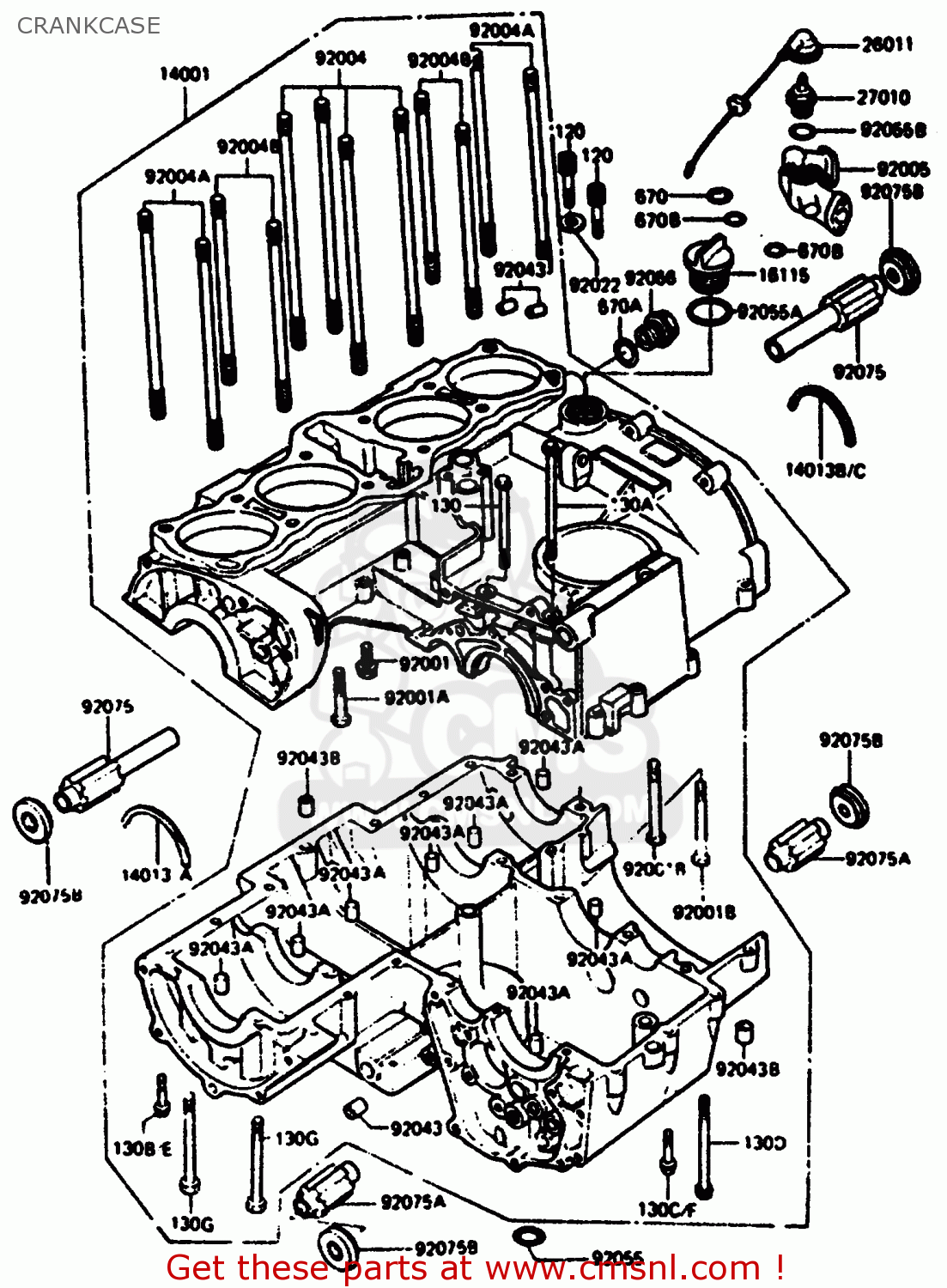

Crankcase diagram Z1000R2 1983 EUROPE UK IT NR SD ST
CRANKCASE Z1000R2 1983 EUROPE UK IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
14001
140015112
ref: 14001
SET-CRANKCASE,F.BLACK
€ 1,847.00
14013
14013013
ref: 14013
RING-POSITION,T=1.90
€ 7.50
14013A
140131004
ref: 14013A
RING-POSITION,CRANK
€ 3.00
14013B
140131005
ref: 14013B
RING-POSITION
€ 3.00
14013C
140131006
ref: 14013C
RING-POSITION,T=1.90
€ 3.50
16115
161151008
ref: 16115
CAP-OIL FILLER,BLACK
€ 10.00
26011
260111129
ref: 26011
WIRE-LEAD,OIL SWITCH
€ 17.50
27010
270101013
ref: 27010
SWITCH,OIL PRESSURE
€ 28.50
92001
920011349
ref: 92001
BOLT,FLANGED,8X16
€ 3.50
92001A
92003107
ref: 92001A
BOLT-HEX HEAD,8X72
€ 10.00
92001B
92003108
ref: 92001B
BOLT-HEX HEAD,8X81
€ 4.50
92004
920041002
ref: 92004
STUD, 10X167
€ 10.50
92004A
920041003
ref: 92004A
STUD, 10X158
€ 10.50
92004B
920041004
ref: 92004B
STUD, 10X133
€ 11.50
92005
920051035
ref: 92005
FITTING,FUEL,I-TYPE
€ 35.00
92022
920221086
ref: 92022
WASHER,8.2X16X1
€ 2.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92043A
92043016
ref: 92043A
PIN,SELECT FORK GUIDE
€ 12.50
92043B
920431037
ref: 92043B
PIN,DOWEL,10X8.2X14
€ 0.50
92055
92055048
ref: 92055
RING-O,OD=18
€ 3.00
92055A
92055049
ref: 92055A
'0'RING,31MM
€ 2.50
92055B
92055035
ref: 92055B
O RING
€ 3.00
92066
920661098
ref: 92066
PLUG,14X12,F.BLACK
€ 12.50
92075
920751272
ref: 92075
DAMPER,ENGINE MOUNT,U
€ 32.50
92075A
920751273
ref: 92075A
DAMPER,ENGINE MOUNT,L
€ 19.00
92075B
920751274
ref: 92075B
DAMPER,ENG MOUNT,SIDE
€ 11.00
120
120P0840
ref: 120
BOLT-SOCKET,8X40
€ 2.00
130
130G06100
ref: 130
BOLT-FLANGED,6X100
€ 2.50
130A
130G06115
ref: 130A
BOLT-FLANGED,6X115
€ 2.50
130B
130G0640
ref: 130B
BOLT,FLANGED,6X40
€ 0.50
130C
130G0655
ref: 130C
BOLT,FLANGED,6X55
€ 3.00
130D
130G0695
ref: 130D
BOLT-FLANGED,6X95
€ 3.50
130E
130J0640
ref: 130E
BOLT-FLANGED,6X40,BLA
€ 3.00
130F
130J0655
ref: 130F
BOLT-FLANGED,6X55,BLA
€ 3.00
130G
130P0895
ref: 130G
BOLT-FLANGED,8X95
€ 7.00
670
670B1509
ref: 670
O RING,9MM
€ 1.00
670A
670B2015
ref: 670A
O RING,15MM
€ 1.00
670B
670B2018
ref: 670B
O RING,18MM
€ 1.00
