TAIL LAMP
Z1000R2 1983 EUROPE UK IT NR SD ST

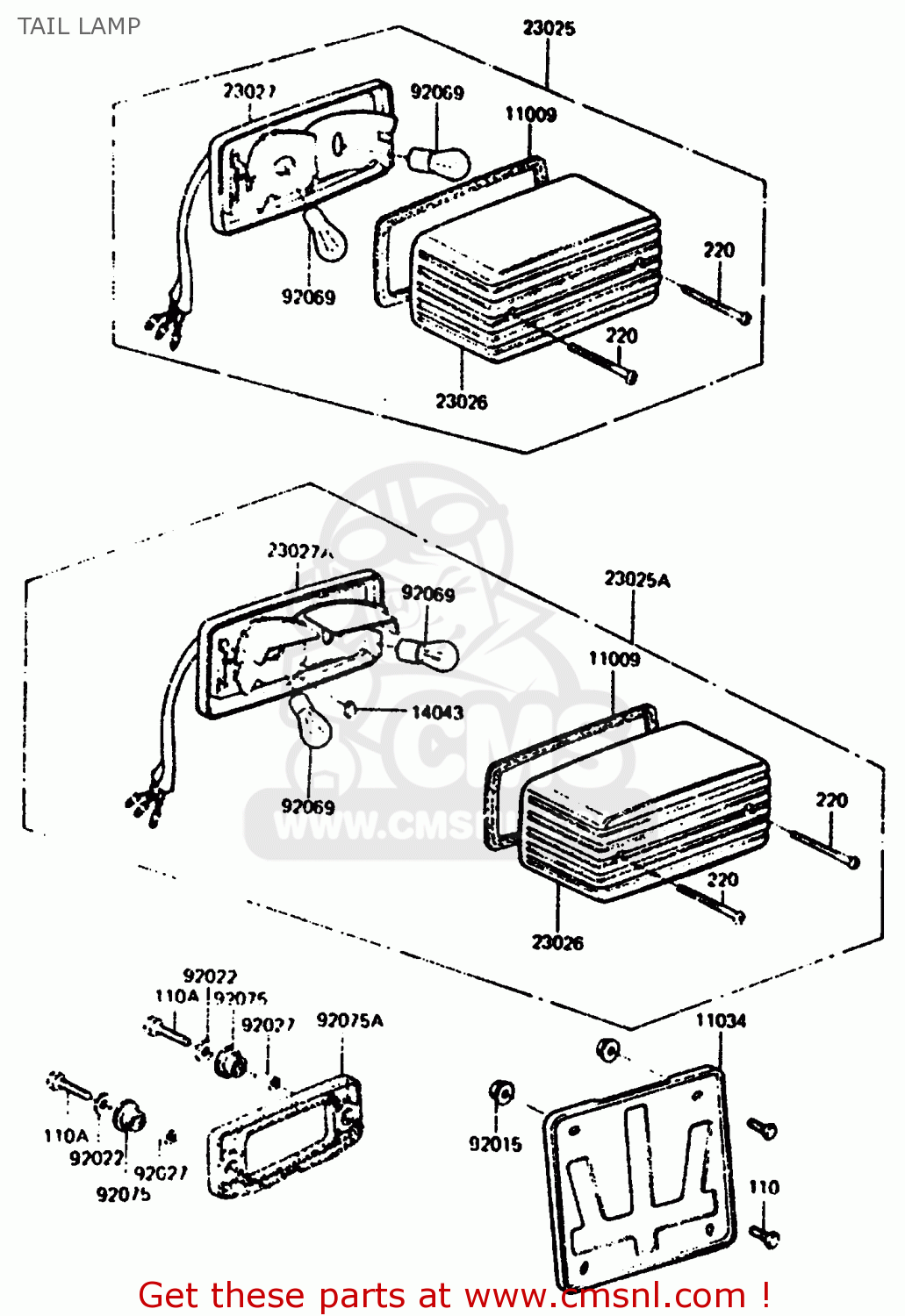

Tail lamp diagram Z1000R2 1983 EUROPE UK IT NR SD ST
TAIL LAMP Z1000R2 1983 EUROPE UK IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
11009
110091221
ref: 11009
GASKET,TAIL LAMP (NAS)
€ 8.50
11034
110341325
ref: 11034
IT
BRACKET,LICENSE PLATE
€ 13.50
14043
140431004
ref: 14043
WG
FILTER
€ 2.50
23025
230251026
ref: 23025
EU, FR, IT, NR, SD,
LAMP-TAIL,220-40887 M
€ 202.00
23025A
230251027
ref: 23025A
WG
LAMP-TAIL
€ 153.00
23026
230261017
ref: 23026
LENS,TAIL LAMP
€ 126.00
23027
230271014
ref: 23027
EU, FR, IT, NR, SD,
BODY-COMP-TAIL LAMP
€ 92.50
23027A
230271015
ref: 23027A
WG
BODY-TAIL LAMP,GMN
€ 79.00
92015
920151193
ref: 92015
IT
NUT,FLANGED,6MM
€ 0.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
920271316
ref: 92027
COLLAR,6.8X10X17.6
€ 6.50
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92075
920751092
ref: 92075
DAMPER
€ 7.50
92075A
920751282
ref: 92075A
DAMPER,TAIL LAMP
€ 13.00
110
110B0612
ref: 110
IT
BOLT-HEX HEAD,6X12
€ 2.50
110A
110B0625
ref: 110A
BOLT-HEX HEAD,6X25
€ 4.00
220
220C0465A
ref: 220
SCREW-PAN-CROS,4X65
€ 2.50
