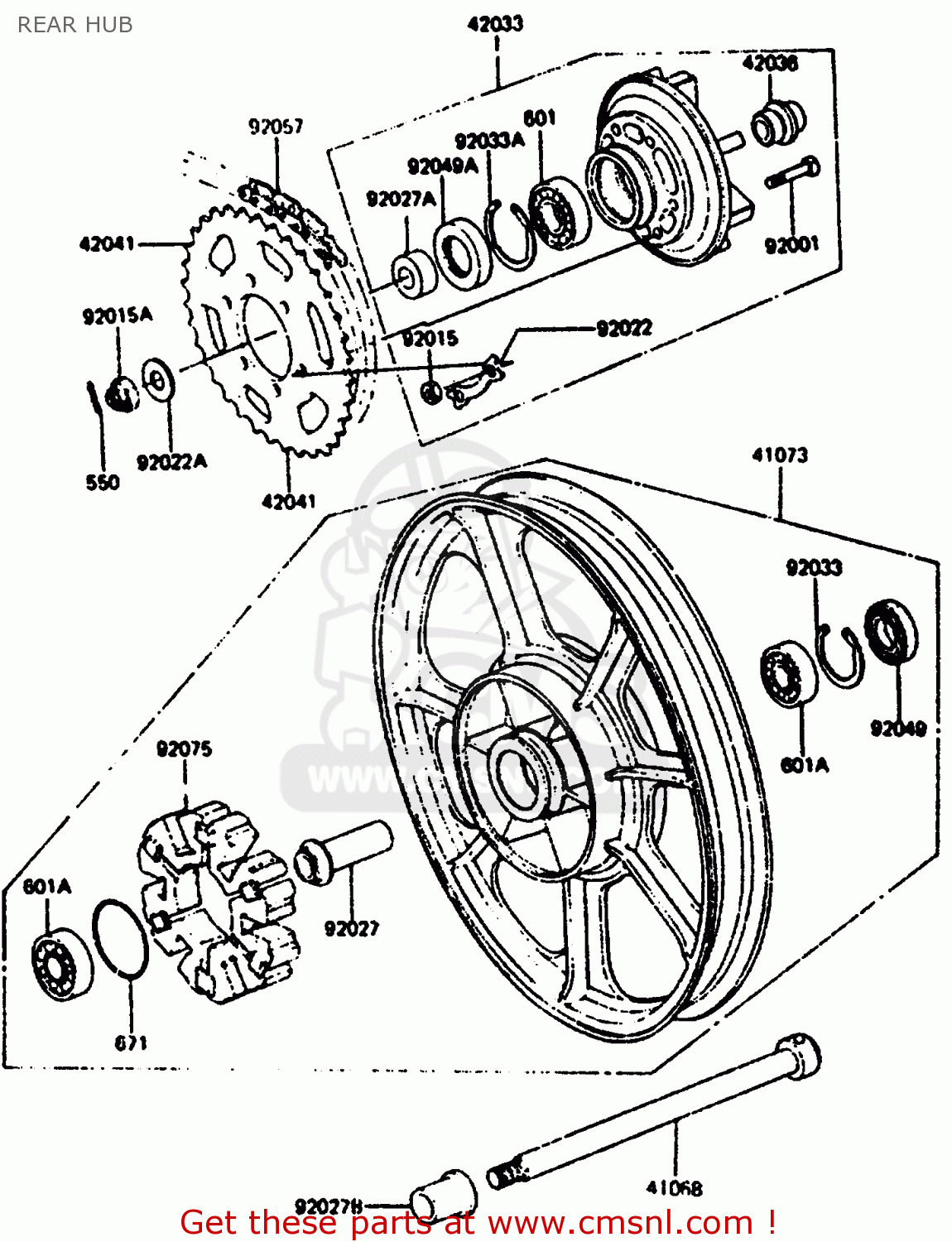

REAR HUB

ref

part #

description

quantity

41068

410681087
ref: 41068

AXLE,RR,L=300

€ 75.00

41073

410731141F6
ref: 41073

WHEEL-ASSY,RR,SOLID,N

€ 858.00

42033

420331048
ref: 42033

COUPLING-ASSY,F.BLACK

€ 257.50

42036

420361039
ref: 42036

SLEEVE,L=33

€ 29.00

42041

420411098
ref: 42041

SPROCKET-HUB,41T,BLAC

€ 44.50

92001

92001161
ref: 92001

BOLT,10X41

€ 3.00

92015

42045005
ref: 92015

NUT,10MM

€ 5.00

92015A

42045018
ref: 92015A

NUT,18MM

€ 7.50

92022

920221212
ref: 92022

WASHER,LOCK

€ 4.00

92022A

92022248
ref: 92022A

WASHER,20.3X34X4.5

€ 7.50

92027

920271286
ref: 92027

COLLAR,L=89.5

€ 24.00

92027A

920271287
ref: 92027A

COLLAR,20X40X16.5

€ 20.50

92027B

920271288
ref: 92027B

COLLAR,L=31

€ 24.50

92033

920331043
ref: 92033

RING,SNAP,56.2M/M

€ 6.00

92033A

920331044
ref: 92033A

CIRCLIP 62 M/M

€ 7.50

92049

920491061
ref: 92049

SEAL-OIL,28X52X5

€ 13.00

92049A

92050027
ref: 92049A

OIL SEAL

€ 13.50

92057

920571067
ref: 92057

CHAIN,DRIVE, EK630SD0

€ 431.50

92075

42014033
ref: 92075

DAMPER,RR HUB SHOCK,1

€ 85.50

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6206
ref: 601

BEARING-BALL,#6206C3

€ 19.50

601A

601B6304ZZ
ref: 601A

BEARING-BALL,#6304ZZC

€ 36.00

671

671B2565
ref: 671

O RING,65MM

€ 6.00
