OIL COOLER
Z1000R2 1983 EUROPE UK IT NR SD ST

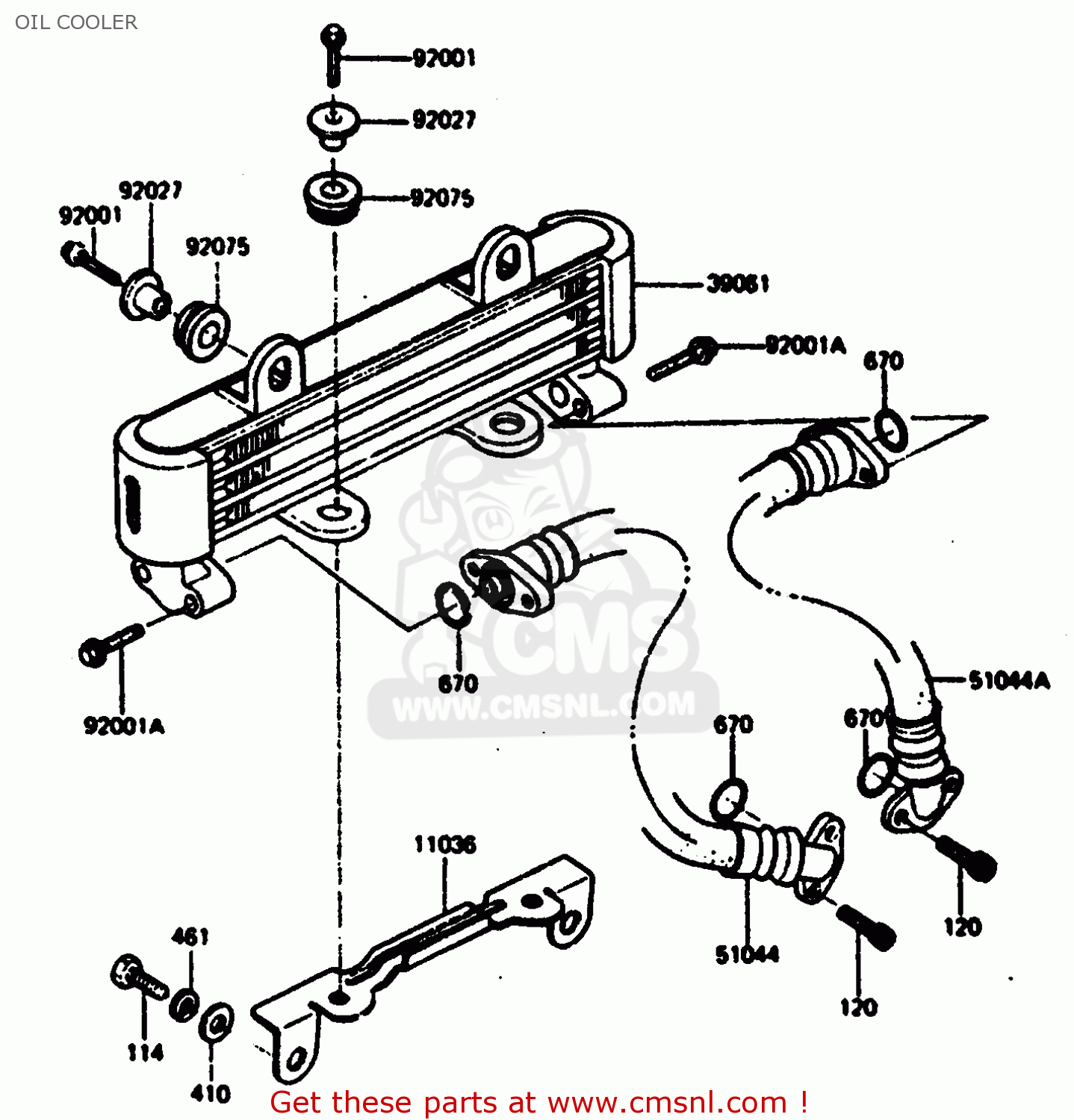

Oil cooler diagram Z1000R2 1983 EUROPE UK IT NR SD ST
OIL COOLER Z1000R2 1983 EUROPE UK IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
11036
110361508
ref: 11036
BRACKET-A,OIL COOLER
€ 8.50
39061
39061100610
ref: 39061
EXCHANGER-ASSY-HEAT,B
€ 274.00
51044
510441018
ref: 51044
TUBE-ASSY,L=830
€ 195.00
51044A
510441019
ref: 51044A
TUBE-ASSY,L=740
€ 195.00
92001
920011466
ref: 92001
BOLT,FLANGED,6X20,BLK
€ 2.00
92001A
920011467
ref: 92001A
BOLT,FLANGED,6X25,BLK
€ 3.50
92027
920271651
ref: 92027
COLLAR
€ 2.50
92075
92075277
ref: 92075
DAMPER
€ 1.00
115
115C0816
ref: 115
BOLT-SMALL,8X16,BLACK
€ 2.00
120
120S0616
ref: 120
BOLT-SOCKET,6X16
€ 1.00
410
410F0800
ref: 410
WASHER-PLANE-SMALL,8M
€ 3.00
461
461K0800
ref: 461
WASHER-SPRING,8MM,BLA
€ 1.50
670
670D2014
ref: 670
O RING,14MM
€ 3.50
