ELECTRICAL EQUIPMENT
Z1000R2 1983 EUROPE UK IT NR SD ST

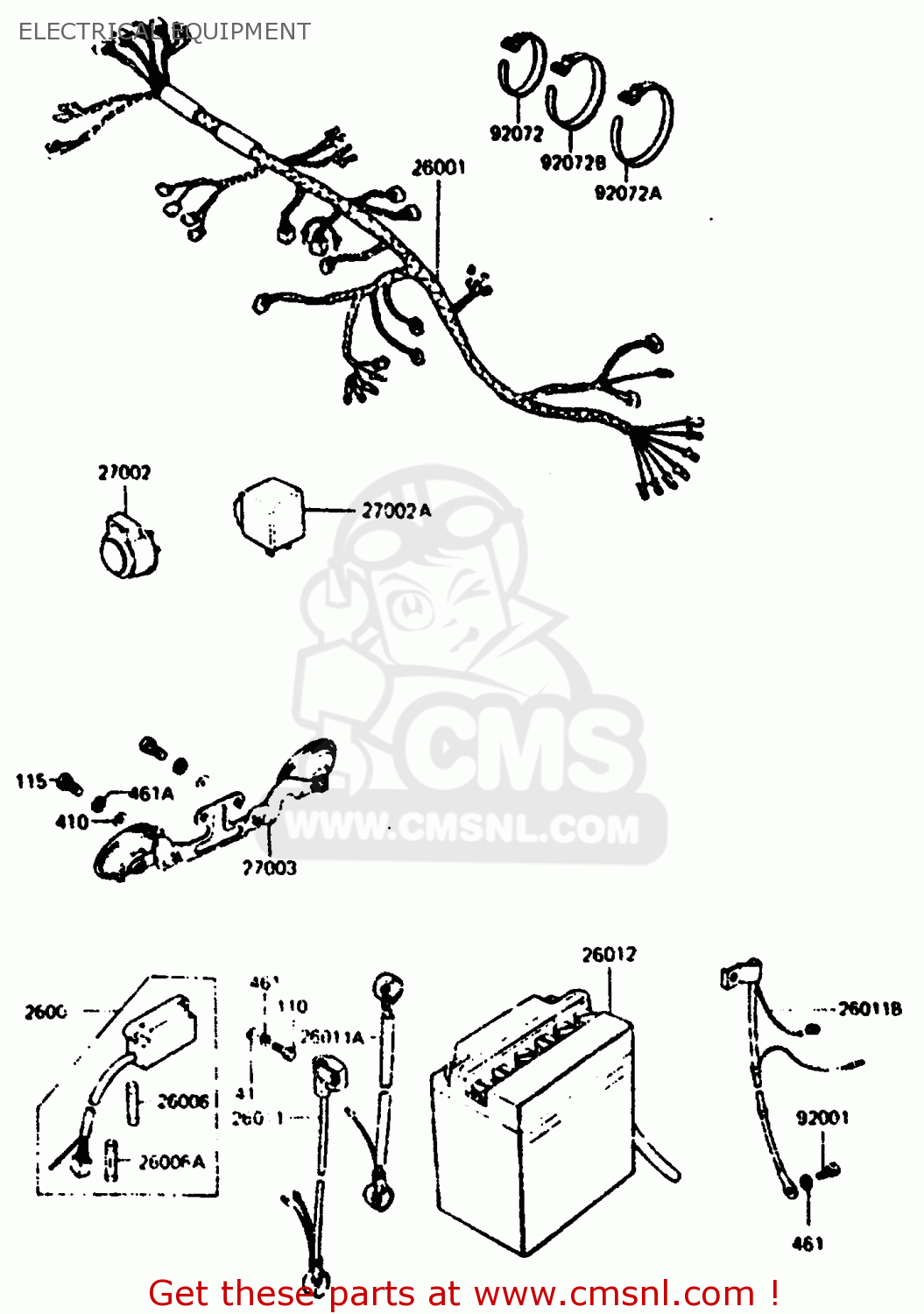

Electrical equipment diagram Z1000R2 1983 EUROPE UK IT NR SD ST
ELECTRICAL EQUIPMENT Z1000R2 1983 EUROPE UK IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
26001
260011511
ref: 26001
HARNESS,MAIN
€ 487.50
26004
260041011
ref: 26004
FUSE-ASSY
€ 72.00
26006
26006003
ref: 26006
FUSE 10A
€ 3.00
26006A
260061005
ref: 26006A
FUSE,30A,L=25M/M
€ 3.00
26011
260111120
ref: 26011
WIRE-LEAD,BATTERY,(+)
€ 28.50
26011A
260111124
ref: 26011A
WIRE-LEAD,BATTERY,(-)
€ 28.50
26012
260121039
ref: 26012
BATTERY,12V18AH,YB18L
€ 115.50
27002
27002011
ref: 27002
FU, FR, IT, NR, SD,
RELAY-ASSY,TURN SIGNA
€ 69.50
27002A
270021002
ref: 27002A
WG
RELAY,GMN
€ 65.50
27003
270031143
ref: 27003
HORN,DOUBLE
€ 160.00
92001
92001137
ref: 92001
BOLT,HEX HEAD,6M/M
€ 4.00
92072
92072031
ref: 92072
BAND,MIDDLE
€ 3.00
92072A
92072032
ref: 92072A
BAND,LONG
€ 3.00
92072B
92072056
ref: 92072B
BAND,RUBBER
€ 3.00
110
110B0622
ref: 110
BOLT-HEX HEAD,6X22
€ 2.50
115
115C0816
ref: 115
BOLT-SMALL,8X16,BLACK
€ 2.00
410
410F0800
ref: 410
WASHER-PLANE-SMALL,8M
€ 3.00
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461K0800
ref: 461A
WASHER-SPRING,8MM,BLA
€ 1.50
