CHANGE DRUM, SHIFT FORK

Z1000R2 1983 EUROPE UK IT NR SD ST

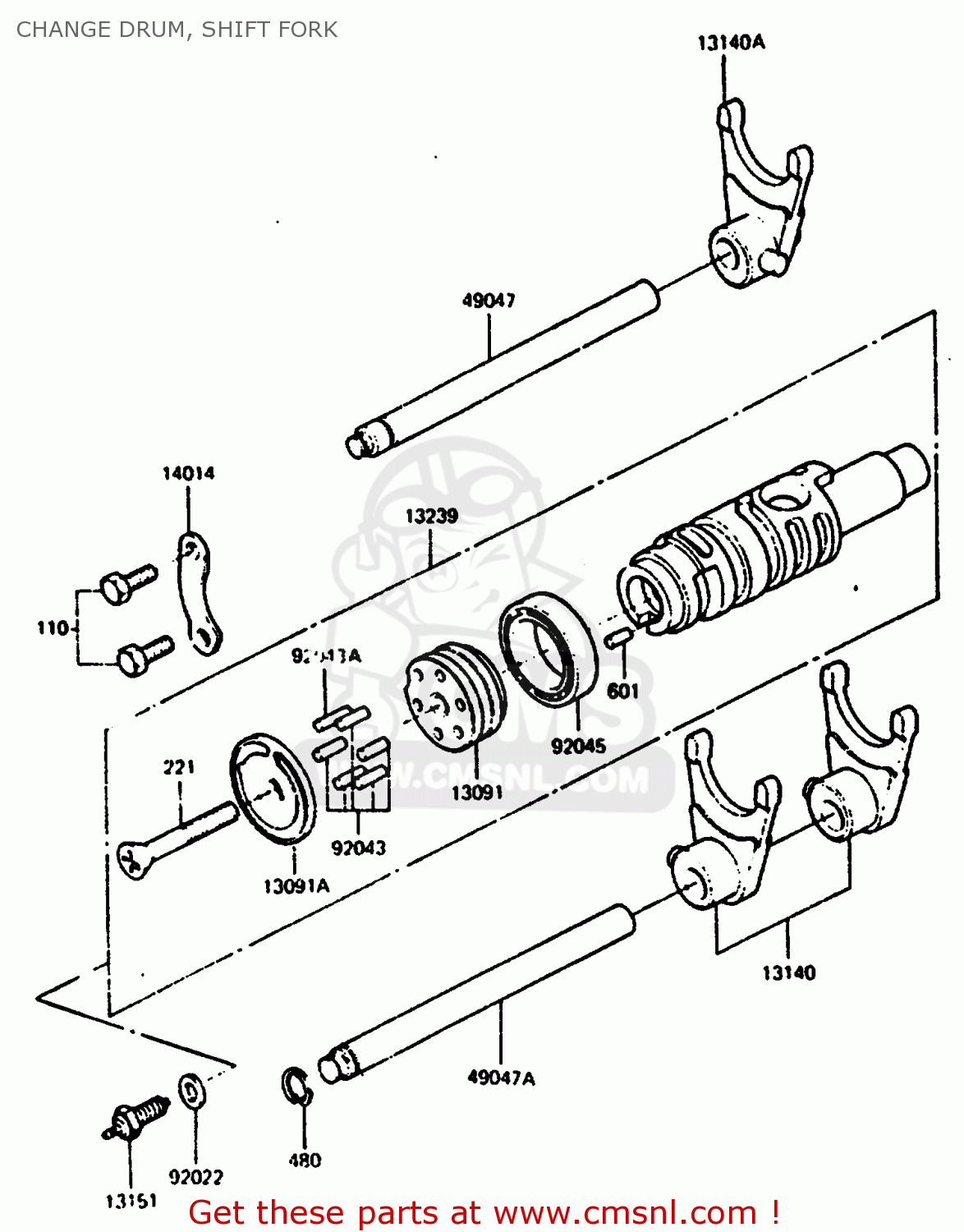

Change drum, shift fork diagram Z1000R2 1983 EUROPE UK IT NR SD ST

prices are in EUR

ref

part #

description

quantity

13091

130911087
ref: 13091

HOLDER,CHANGE DRUM PI

€ 36.00

13091A

130911088
ref: 13091A

HOLDER,CHANGE DRUM PI

€ 18.50

13140

131401045
ref: 13140

FORK-SHIFT

€ 88.00

13140A

131401046
ref: 13140A

FORK-SHIFT

€ 67.50

13151

131515003
ref: 13151

SWITCH-COMP

€ 20.00

13239

132391054
ref: 13239

DRUM-ASSY-CHANGE

€ 160.50

14014

140141015
ref: 14014

PLATE-POSITION

€ 3.50

49047

490471014
ref: 49047

ROD-SHIFT

€ 23.50

49047A

490471019
ref: 49047A

ROD-SHIFT

€ 27.50

92043

92042014
ref: 92043

PIN-GEAR CHANGE DRUM

€ 0.50

92043A

92042020
ref: 92043A

PIN-GEAR CHANGE DRUM

€ 3.00

92045

920451035
ref: 92045

BEARING-BALL,6806

€ 47.00

110

110G0616
ref: 110

BOLT,HEX HEAD,6X16

€ 1.00

221

221B0645
ref: 221

SCREW-CSK-CROS,6X45

€ 2.50

480

480J1200
ref: 480

CIRCLIP-TYPE-C,12MM

€ 0.50

610

610A0410
ref: 610

ROLLER,4X10

€ 2.50
