FRONT FORK
Z1000R2 1983 EUROPE UK IT NR SD ST

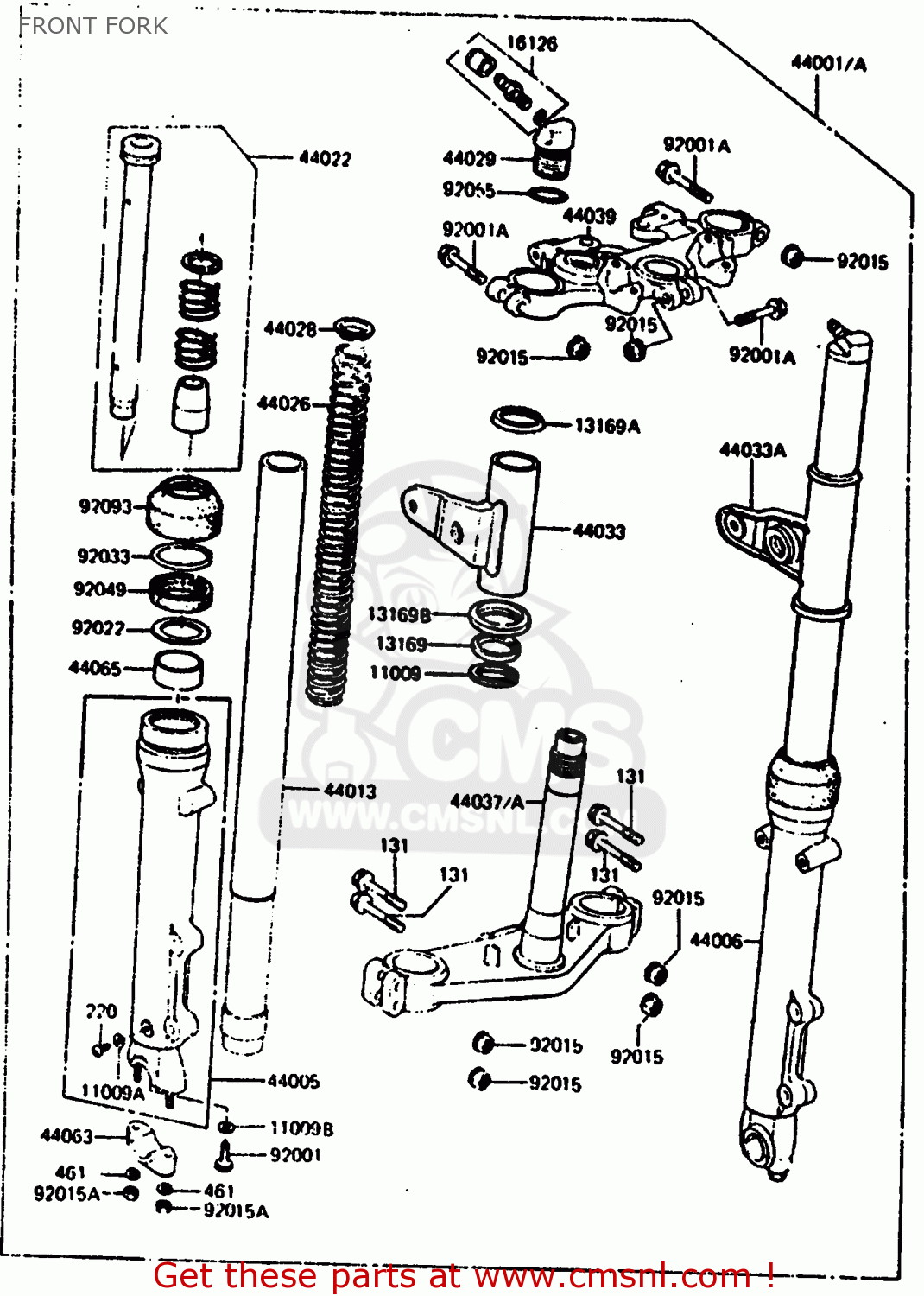

Front fork diagram Z1000R2 1983 EUROPE UK IT NR SD ST
FRONT FORK Z1000R2 1983 EUROPE UK IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
11009
110091015
ref: 11009
GASKET,FORK COVER (NAS)
€ 7.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009B
44045057
ref: 11009B
GASKET (NAS)
€ 3.00
13169
131691020
ref: 13169
PLATE,FORK COVER GUID
€ 20.50
13169A
131691498
ref: 13169A
PLATE,FORK COVER,UPP
€ 3.50
13169B
131691499
ref: 13169B
PLATE,FORK COVER,LWR
€ 4.50
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
44001
440011469
ref: 44001
EU, FR, IT, NR, ST,
FORK-FRONT
€ 1,538.50
44001A
440011470
ref: 44001A
SD, WG
FORK-FRONT
€ 1,188.00
44005
440051094
ref: 44005
PIPE-LEFT FORK OUTER
€ 253.00
44006
440061094
ref: 44006
PIPE-RIGHT FORK OUTER
€ 240.00
44013
440131124
ref: 44013
PIPE-FORK INNER
€ 226.00
44022
440221055
ref: 44022
CYLINDER FORK
€ 76.50
44026
440261194
ref: 44026
SPRING-FRONT FORK
€ 43.50
44029
440291044
ref: 44029
SEAT-FORK SPRING,LH
€ 33.00
44033
440331104
ref: 44033
COVER-FORK,LH,F.BLACK
€ 78.50
44033A
440331105
ref: 44033A
COVER-FORK,RH,F.BLACK
€ 78.50
44037
440371072
ref: 44037
EU, FR, IT, NR, ST,
HOLDER-FORK UNDER
€ 356.00
44037A
440371073
ref: 44037A
SD, WG
HOLDER-FORK UNDER
€ 390.00
44039
440391070
ref: 44039
HOLDER-FORK UPPER
€ 167.00
44063
440631006
ref: 44063
HOLDER-FRONT AXLE
€ 25.50
44065
440651012
ref: 44065
BUSHING,FORK OUT PIPE
€ 17.00
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
€ 4.50
92001A
920011572
ref: 92001A
BOLT,FLANGED,8X57,BLA
€ 3.00
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92015A
920151205
ref: 92015A
NUT,U,8MM,BLACK
€ 3.00
92022
920221262
ref: 92022
WASHER,FORK OUTER PIP
€ 5.50
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92049
920491102
ref: 92049
SEAL OIL FORK
€ 18.50
92055
920551051
ref: 92055
ORING,FORK TOP CAP
€ 3.50
92093
920931051
ref: 92093
SEAL,FORK
€ 24.50
131
131J0855
ref: 131
BOLT-FLANGED,8X55,BLA
€ 2.50
220
220B0408A
ref: 220
SCREW-PAN HEAD,4X8
€ 0.50
461
461K0800
ref: 461
WASHER-SPRING,8MM,BLA
€ 1.50
