GEAR CHANGE MECHANISM
Z1000R2 1983 EUROPE UK IT NR SD ST

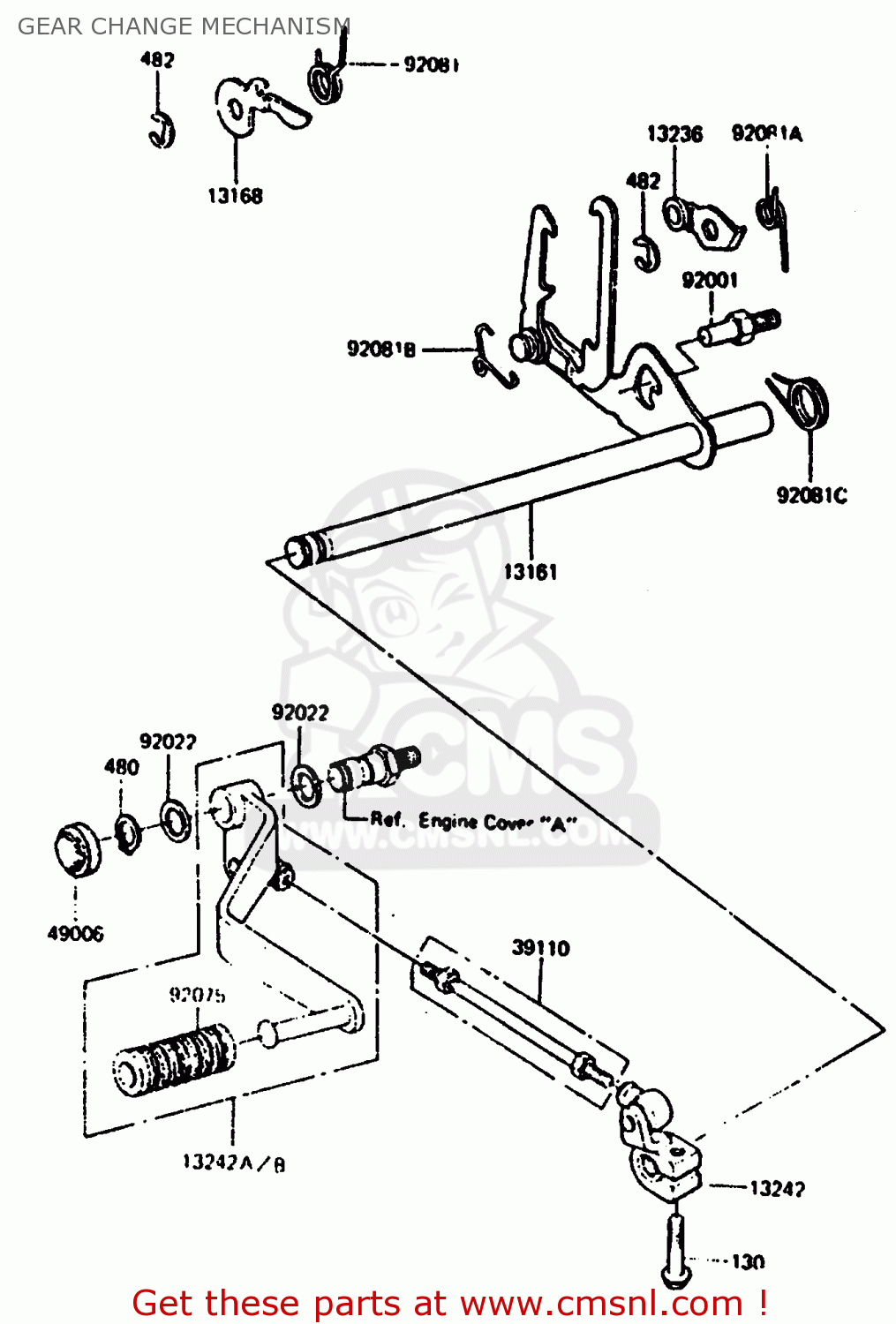

Gear change mechanism diagram Z1000R2 1983 EUROPE UK IT NR SD ST
GEAR CHANGE MECHANISM Z1000R2 1983 EUROPE UK IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
13161
131611023
ref: 13161
LEVER-COMP-CHANGE SHA
€ 65.00
13168
131681074
ref: 13168
LEVER,GEAR POSITIONIN
€ 5.50
13236
132361029
ref: 13236
LEVER-COMP,NEUTRAL PO
€ 8.00
13242
132421048
ref: 13242
LEVER-ASSY-CHANGE,ROD
€ 32.50
13242A
132421049
ref: 13242A
EU, FR, IT
LEVER-ASSY-CHANGE,PED
€ 50.50
13242B
132421050
ref: 13242B
NR, SD, ST, UK, WG
LEVER-ASSY-CHANGE,PDL
€ 25.00
39110
391101008
ref: 39110
ROD-ASSY-TIE,L=90,BLA
€ 7.50
49006
490061061
ref: 49006
BOOT,CHANGE LEVER
€ 6.00
92001
920011401
ref: 92001
BOLT,RETURN SPRING
€ 3.00
92022
92022072
ref: 92022
WASHER,12.5X22X1.2
€ 2.50
92075
13157004
ref: 92075
RUBBER-CHANGE PEDAL
€ 4.00
92081
920811284
ref: 92081
SPRING,PSTNNG LEVER
€ 3.50
92081A
920811285
ref: 92081A
SPRING,NEUTRAL POSITI
€ 3.50
92081B
92083018
ref: 92081B
SPRING-KICK PAWL
€ 6.00
92081C
92083028
ref: 92081C
SPRING,CHG PEDL RTRN
€ 9.50
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
€ 2.50
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
€ 0.50
482
482J6000
ref: 482
CIRCLIP-TYPE-E,6MM
€ 0.50
