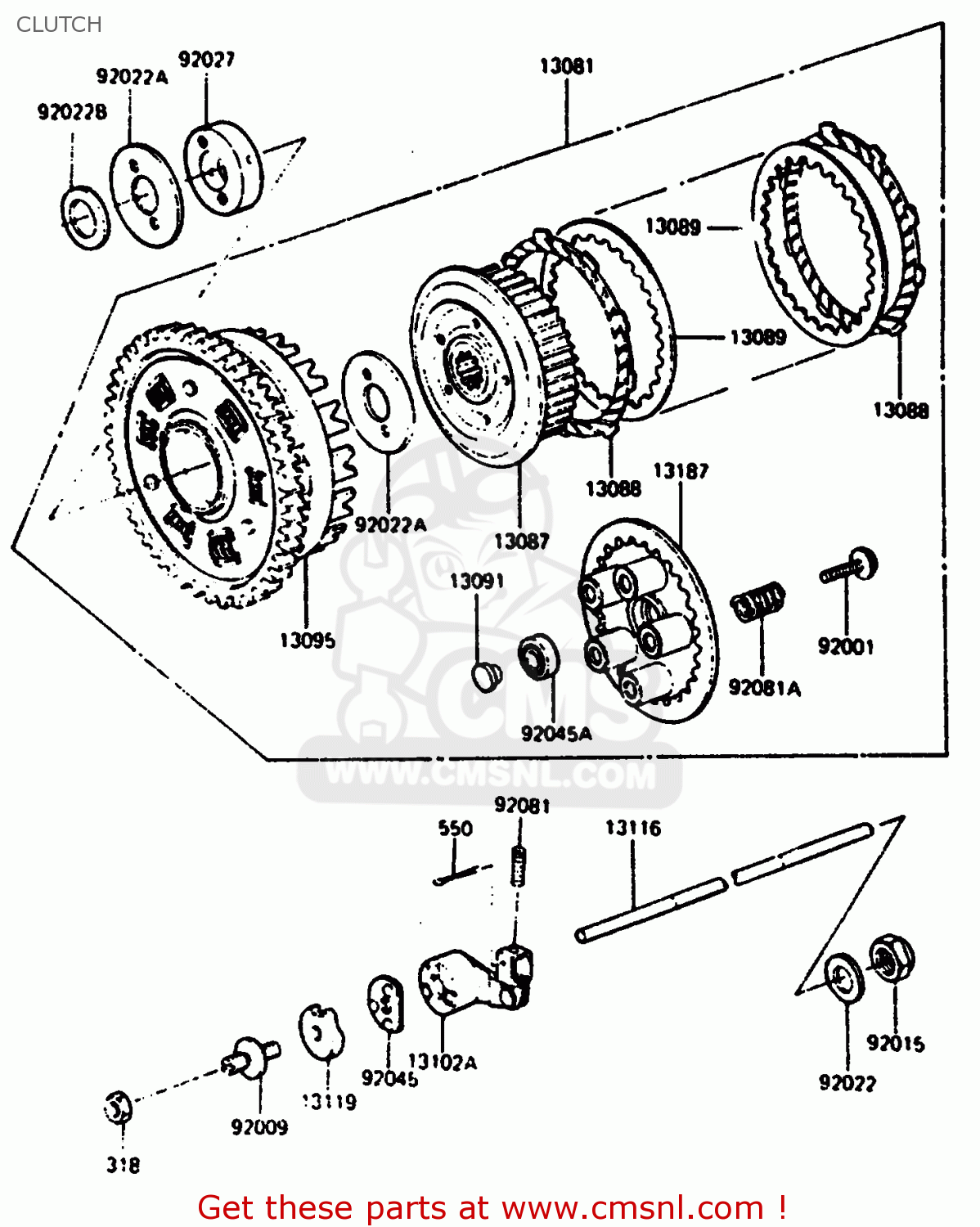

CLUTCH

ref

part #

description

quantity

13081

130811057
ref: 13081

CLUTCH-ASSY

€ 530.50

13087

130871015
ref: 13087

HUB-CLUTCH

€ 213.50

13088

130881013
ref: 13088

PLATE-FRICTION (NAS)

€ 12.50

13089

130891004
ref: 13089

PLATE,CLUTCH STEEL (NAS)

€ 6.50

13091

130911085
ref: 13091

HOLDER,CLUTCH PUSH RO

€ 6.50

13095

130951037
ref: 13095

HOUSING-COMP-CLUTCH

€ 515.00

13102

131021012
ref: 13102

RELEASE-COMP-CLUTCH

€ 45.00

13116

131161033
ref: 13116

ROD-PUSH,CLUTCH

€ 38.50

13119

131191003
ref: 13119

CAM-RELEASE,CLUTCH

€ 11.50

13187

131871006
ref: 13187

PLATE-CLUTCH OPERATIN (NAS)

€ 58.00

92001

920011066
ref: 92001

BOLT, CLUTCH SPR FITT

€ 4.00

92009

920091009
ref: 92009

SCREW,SLOTTED,8M/M

€ 2.50

92015

920151053
ref: 92015

NUT,20M/M

€ 9.00

92022

920221116
ref: 92022

WASHER,20.3X36X2.3

€ 5.50

92022A

920221221
ref: 92022A

WASHER,CLUTCH THRUST

€ 10.50

92022B

920221223
ref: 92022B

WASHER,25.3X36X2.5

€ 5.50

92027

920271284
ref: 92027

COLLAR,25X57X16.1

€ 67.00

92045

920451001
ref: 92045

BEARING,B.CLUTCH

€ 8.00

92045A

920451036
ref: 92045A

BEARING-BALL,6001C3

€ 15.50

92081

92081069
ref: 92081

SPRING-CLUTCH RELEASE

€ 4.50

92081A

920811033
ref: 92081A

SPRING,CLUTCH

€ 6.50

318

318B0800
ref: 318

NUT,8MM

€ 0.50

550

550D1615
ref: 550

PIN-COTTER,1.6X15

€ 1.50

all assemblies
