STEP
Z1000R2 1983 EUROPE UK IT NR SD ST

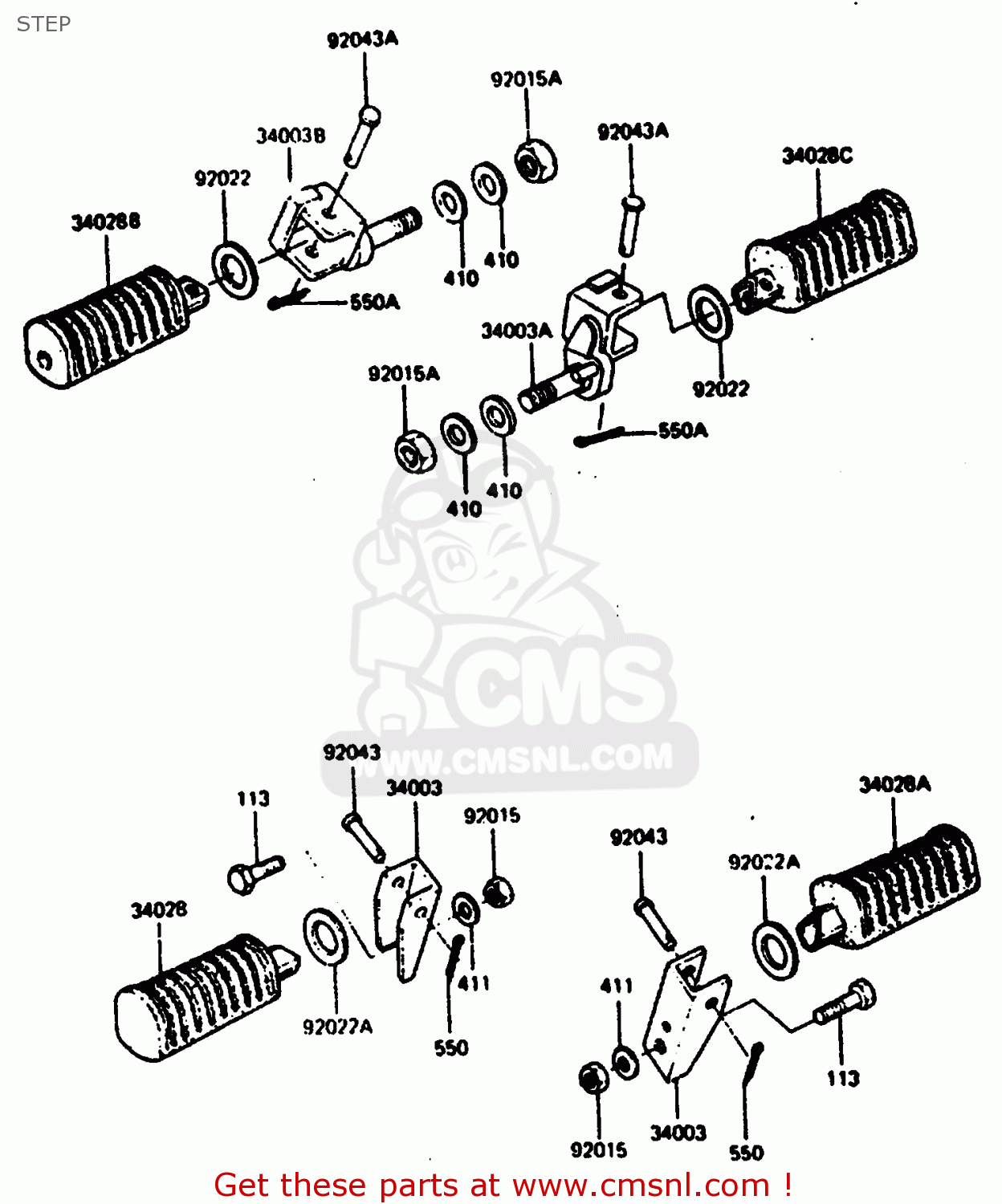

Step diagram Z1000R2 1983 EUROPE UK IT NR SD ST
STEP Z1000R2 1983 EUROPE UK IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
34003
340031025
ref: 34003
HOLDER-STEP,RR
€ 18.00
34003A
340031026
ref: 34003A
HOLDER,FOOTREST STEP
€ 33.50
34003B
340031114
ref: 34003B
HOLDER-STEP,FR,LH
€ 91.00
34028
340281041
ref: 34028
STEP,RR,LH,BLACK
€ 28.00
34028A
340281042
ref: 34028A
STEP,RR,RH,BLACK
€ 28.00
34028B
340281045
ref: 34028B
STEP,FR,LH,BLACK
€ 30.00
34028C
340281046
ref: 34028C
STEP,FR,RH,BLACK
€ 31.00
92015
920151188
ref: 92015
NUT,LOCK,10MM,BLACK
€ 4.00
92015A
92019009
ref: 92015A
NUT,LOCK,12MM
€ 5.00
92022
920221319
ref: 92022
WASHER,25X36X2.3,BLAC
€ 2.50
92022A
920221320
ref: 92022A
WASHER,22.5X30X2.6,BL
€ 2.50
92043
92043079
ref: 92043
PIN-REAR FOOTREST FIT
€ 5.50
92043A
92043115
ref: 92043A
PIN,FOOTREST BAR FIT
€ 6.50
113
113C1040
ref: 113
BOLT-SMALL-FINE,10X40
€ 4.50
410
410F1200
ref: 410
410F1200
411
411F1000
ref: 411
WASHER-PLAIN,10MM,BLA
€ 2.50
550
550D2012
ref: 550
PIN,COTTER,2.0X12
€ 0.50
550A
550D2515
ref: 550A
PIN COTTER,295X15
€ 0.50
