FRAME FITTING
Z1000R2 1983 EUROPE UK IT NR SD ST

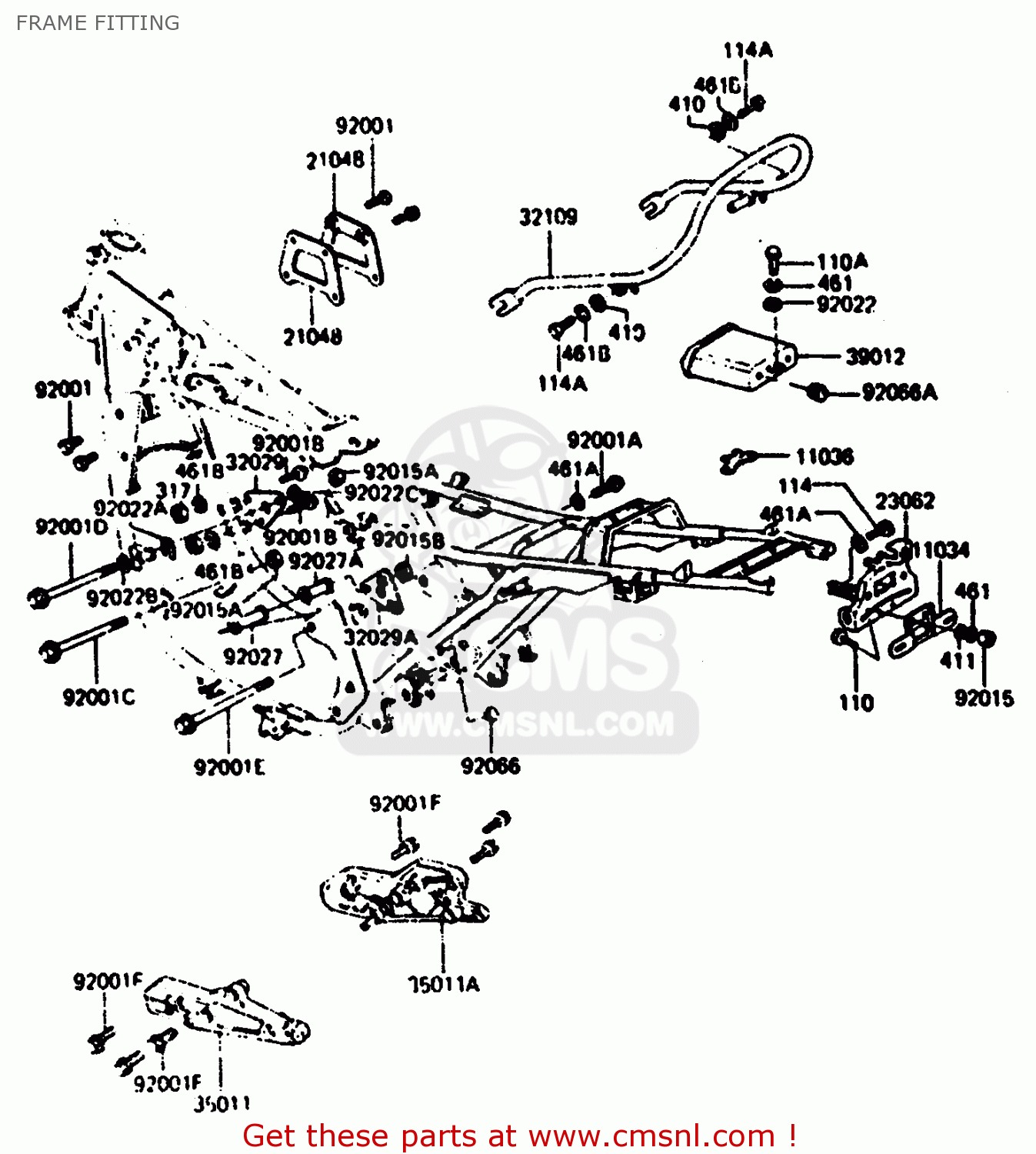

Frame fitting diagram Z1000R2 1983 EUROPE UK IT NR SD ST
FRAME FITTING Z1000R2 1983 EUROPE UK IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
11034
110341923
ref: 11034
BRACKET,LICENSE PLATE
€ 13.50
11036
110361070
ref: 11036
BRACKET-A,STORAGE
€ 7.00
21048
210481001
ref: 21048
PLATE-COIL
€ 14.00
23062
230621032
ref: 23062
BRACKET-COMP,TAIL LAM
€ 117.50
32029
320291142
ref: 32029
BRACKET-ENGINE,FR,UPP
€ 13.00
32029A
320291143
ref: 32029A
BRACKET-ENGINE,RR
€ 15.00
32109
321091029
ref: 32109
GRIP-FRAME,BLACK
€ 129.50
35011
350111101
ref: 35011
STAY-MUFFLER,LH
€ 262.50
35011A
350111102
ref: 35011A
STAY,MUFFLER,RH
€ 285.00
39012
390121014
ref: 39012
CASE-STORAGE
€ 25.00
92001
92001137
ref: 92001
BOLT,HEX HEAD,6M/M
€ 4.00
92001A
920011612
ref: 92001A
BOLT,FLANGED,8X40,BLA
€ 3.00
92001B
920011616
ref: 92001B
BOLT,FLANGED,8X65
€ 5.50
92001C
920011620
ref: 92001C
BOLT
€ 14.00
92001D
920011624
ref: 92001D
BOLT FLANGED
€ 26.00
92001E
920011655
ref: 92001E
BOLT,FLANGED,12X28.5,
€ 27.00
92001F
920011657
ref: 92001F
BOLT,FLANGED,8X35,BLA
€ 2.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151189
ref: 92015A
NUT,LOCK,10MM,BLACK
€ 4.50
92015B
920151190
ref: 92015B
NUT,LOCK,12MM,BLACK
€ 4.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92022A
920221259
ref: 92022A
WASHER,U FORMED
€ 4.50
92022B
920221300
ref: 92022B
WASHER,10.5X22X4.5,BL
€ 3.00
92027
920271310
ref: 92027
COLLAR,13X25X54
€ 27.50
92027A
920271311
ref: 92027A
COLLAR,13X25X29.5
€ 17.50
92066
920661034
ref: 92066
PLUG,FRAME END
€ 3.00
92066A
92074038
ref: 92066A
PLUG,11X3.2
€ 4.50
110
110B0614
ref: 110
BOLT-HEX HEAD,6X14
€ 2.50
110A
110B0616
ref: 110A
BOLT-HEX HEAD,6X16
€ 1.00
114
114B0816
ref: 114
BOLT-HEX HEAD,8X16
€ 0.50
114A
114C0870
ref: 114A
BOLT-SMALL,8X70,BLACK
€ 3.00
317
317C0800
ref: 317
NUT-HEX-SMALL,8MM,BLA
€ 0.50
410
410F0800
ref: 410
WASHER-PLANE-SMALL,8M
€ 3.00
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461F0800
ref: 461A
WASHER-SPRING,8MM
€ 0.50
461B
461K0800
ref: 461B
WASHER-SPRING,8MM,BLA
€ 1.50
