CYLINDER HEAD
Z1000R2 1983 EUROPE UK IT NR SD ST

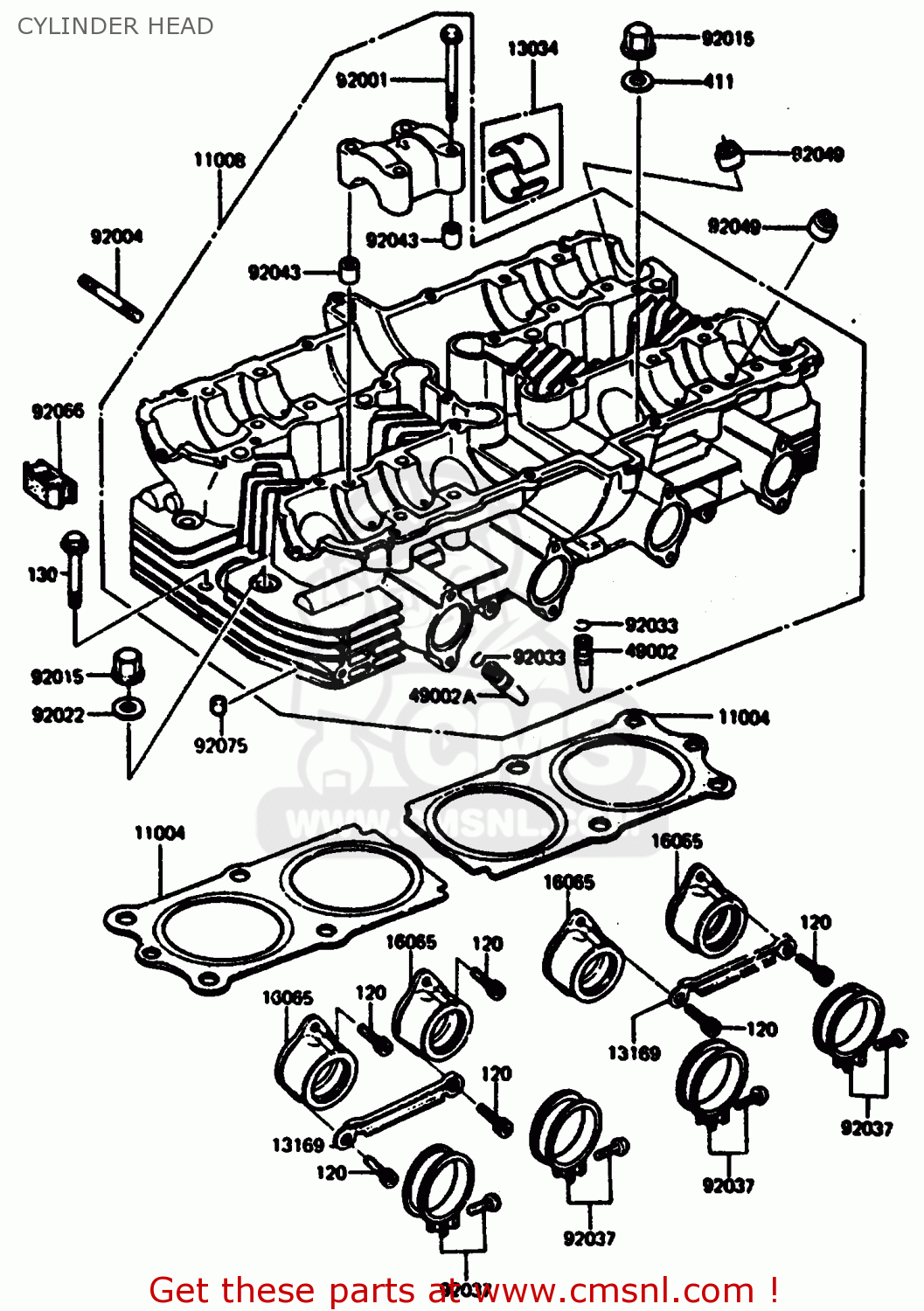

Cylinder head diagram Z1000R2 1983 EUROPE UK IT NR SD ST
CYLINDER HEAD Z1000R2 1983 EUROPE UK IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
11004
110041040
ref: 11004
GASKET-HEAD (MCA)
€ 51.00
11008
110081066
ref: 11008
HEAD-COMP-CYLINDER,BL
€ 1,967.00
13034
13034030
ref: 13034
BUSHING,CAMSHAFT
€ 15.00
13169
131691602
ref: 13169
PLATE,OIL TUBE GUIDE
€ 4.50
16065
160651066
ref: 16065
HOLDER-CARBURETOR
€ 47.50
49002
12013009
ref: 49002
GUIDE-VALVE,INTAKE
€ 18.00
49002A
490021002
ref: 49002A
GUIDE,EXHAUST VALVE
€ 16.00
92001
92003228
ref: 92001
BOLT
€ 5.50
92004
920041101
ref: 92004
STUD,8X30,BLACK
€ 3.00
92015
920151181
ref: 92015
NUT,FLANGED CAP,10MM,
€ 9.00
92022
920221005
ref: 92022
WASHER,10.5X22X1.6
€ 3.00
92033
92036023
ref: 92033
CIRCLIP,VALVE GUIDE
€ 0.50
92037
920371304
ref: 92037
CLAMP,ID=53,BLACK
€ 7.00
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92049
92049016
ref: 92049
OIL SEAL,RV37129.5
€ 13.50
92066
920661104
ref: 92066
PLUG,CYLINDER HEAD CO
€ 23.50
92075
92075074
ref: 92075
ST
DAMPER
€ 3.00
120
120S0616
ref: 120
BOLT-SOCKET,6X16
€ 1.00
130
130S0645
ref: 130
BOLT-FLANGED,6X45,BLA
€ 2.00
411
411B1000
ref: 411
WASHER-PLAIN,10MM
€ 0.50
