CARBURETOR "A"
Z1000R2 1983 EUROPE UK IT NR SD ST

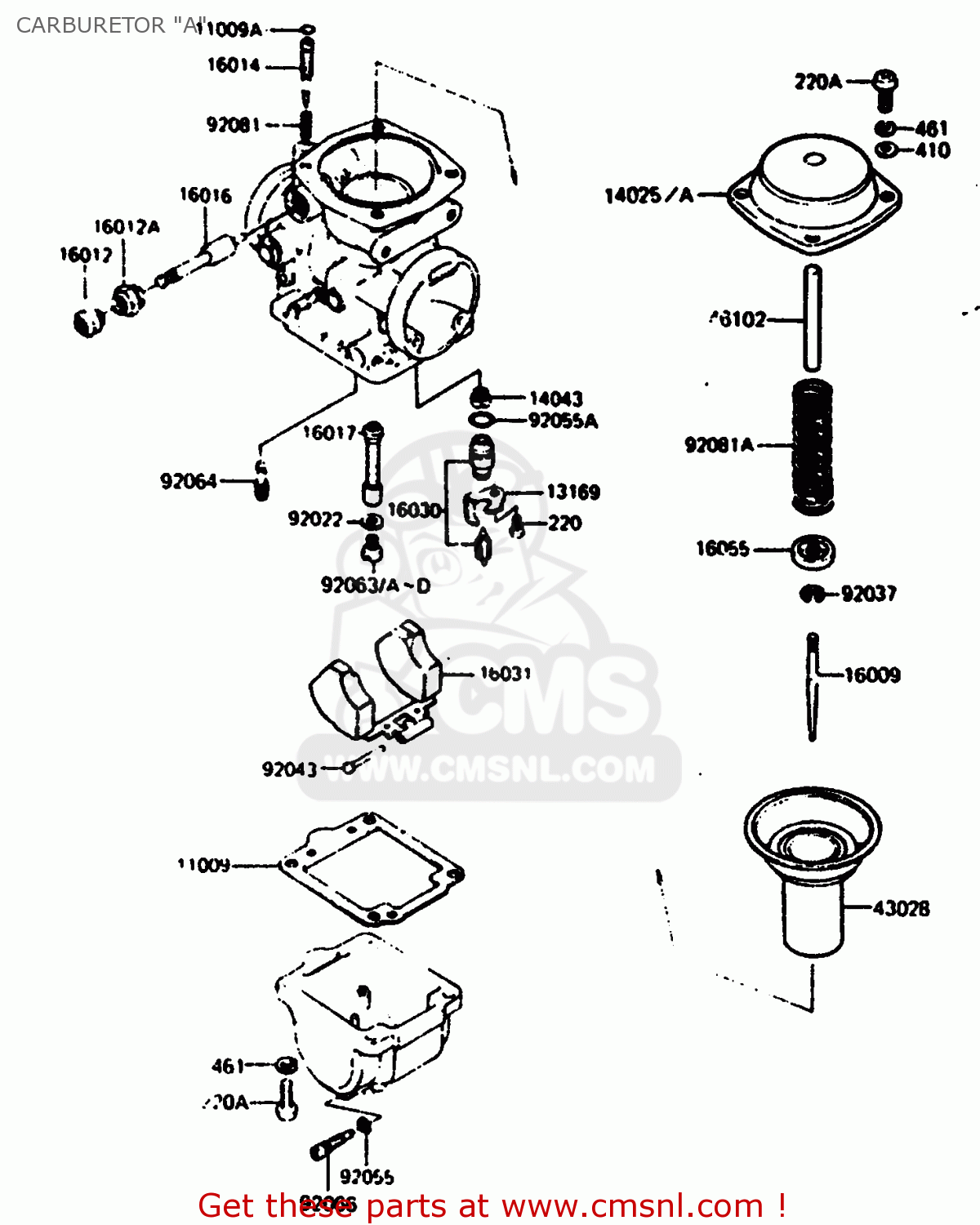

Carburetor "a" diagram Z1000R2 1983 EUROPE UK IT NR SD ST
CARBURETOR "A" Z1000R2 1983 EUROPE UK IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
11009
110091241
ref: 11009
110091241
11009A
16038022
ref: 11009A
GASKET,O-RING
€ 4.50
13169
131691482
ref: 13169
PLATE,FLOAT VALVE
€ 4.00
14025
140251523
ref: 14025
EU, FR, IT, NR, SD,
COVER,MIXING CHAMBER
€ 55.00
14025A
140251797
ref: 14025A
ST
COVER,MIXING
€ 49.50
14043
140431010
ref: 14043
FILTER,FLOAT VALVE
€ 11.00
16009
160091101
ref: 16009
NEEDLE-JET,5C48
€ 22.50
16012
160121010
ref: 16012
CAP-STARTER PLUNGER,R
€ 17.00
16012A
160121011
ref: 16012A
CAP-STARTER PLUNGER
€ 10.50
16014
160141014
ref: 16014
SCREW-PILOT AIR
€ 18.00
16016
160161019
ref: 16016
PLUNGER
€ 34.00
16017
160171136
ref: 16017
JET-NEEDLE,Y-4
€ 30.00
16030
160301016
ref: 16030
VALVE-FLOAT,2.5
€ 43.00
16031
160311013
ref: 16031
FLOAT
€ 46.00
16055
16055010
ref: 16055
PLATE,NEEDLE
€ 7.00
43028
430281034
ref: 43028
DIAPHRAGM,VALVE
€ 144.50
46102
461021105
ref: 46102
ST
ROD-DIAPHRAGM,VALVE
€ 43.50
92022
16034001
ref: 92022
WASHER-MAIN JET
€ 2.50
92037
16008014
ref: 92037
CLAMP,E-TYPE
€ 5.50
92043
16032008
ref: 92043
PIN,FLOAT
€ 4.00
92055
92055044
ref: 92055
'O' RING
€ 7.00
92055A
920551105
ref: 92055A
RING-0
€ 3.00
92063
920631100
ref: 92063
JET-MAIN,#A127.5
€ 9.50
92063A
920631101
ref: 92063A
(RACING USE ONLY)
JET-MAIN,#A122.5
€ 9.50
92063B
920631102
ref: 92063B
(RACING USE ONLY)
JET-MAIN,#A125
€ 9.50
92063C
920631103
ref: 92063C
(RACING USE ONLY)
JET-MAIN,#A130
€ 9.50
92063D
920631104
ref: 92063D
(RACING USE ONLY)
JET-MAIN,#A132.5
€ 9.50
92064
920641036
ref: 92064
JET-PILOT,#A37.5
€ 13.50
92066
920661064
ref: 92066
SCREW,DRAIN
€ 8.50
92081
16022016
ref: 92081
SPRING, PILOT SCREW
€ 6.00
92081A
920811363
ref: 92081A
SPRING,DPHRGM VALVE
€ 16.00
220
220B0406A
ref: 220
SCREW-PAN HEAD,4X6
€ 2.50
220A
220C0516A
ref: 220A
SCREW-PAN-CROS,5X16,B
€ 0.50
410
410F0500
ref: 410
WASHER-PLAIN-SMALL,5M
€ 0.50
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
€ 0.50
