TRANSMISSION ('80 A1)
KDX175-A1 KDX175 1980 USA CANADA

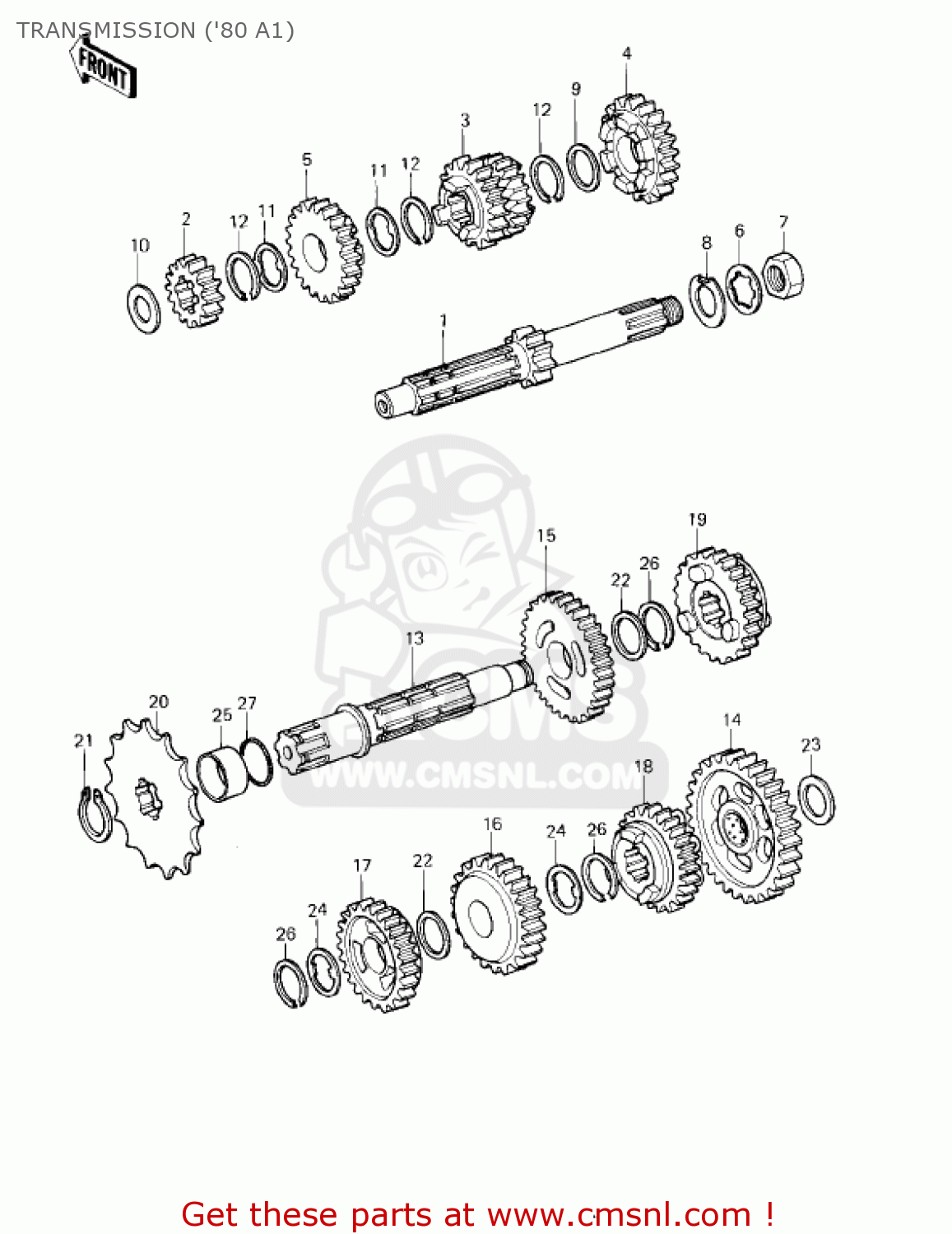

Transmission ('80 a1) diagram KDX175-A1 KDX175 1980 USA CANADA
TRANSMISSION ('80 A1) KDX175-A1 KDX175 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
131271026
ref: 1
SHAFT,DRIVE
€ 90.00
2
131291181
ref: 2
GEAR,INPUT 2ND,16T
€ 69.00
3
131291182
ref: 3
3RD&4TH GEAR,DRIVE SF
€ 109.50
4
131291183
ref: 4
STH GEAR,DRIVE SHAFT
€ 75.00
5
131291184
ref: 5
TOP GEAR,DRIVE SHAFT
€ 33.00
6
463H1600
ref: 6
WASHER-TOOTHED,16MM
€ 3.50
7
92016036
ref: 7
NUT,16MM
€ 2.50
8
920221277
ref: 8
WASHER,16.8X32X1.6
€ 3.50
9
92022198
ref: 9
WASHER-PLAIN
€ 3.50
10
92022268
ref: 10
WASHER,16.3X24X1
€ 5.50
11
92024039
ref: 11
WASHER-LOCK
€ 4.00
12
92033025
ref: 12
CIRCLIP,25MM
€ 3.00
13
131281026
ref: 13
SHAFT,OUTPUT
€ 104.00
14
131291185
ref: 14
LOW GEAR,OUTPUT SHAFT
€ 66.00
15
131291186
ref: 15
2ND GEAR,OUTPUT SHAFT
€ 101.00
16
131291187
ref: 16
3RD GEAR,OUTPUT SHAFT
€ 96.00
17
131291324
ref: 17
GEAR-OUTPUT 4TH,25T
€ 93.00
18
131291189
ref: 18
GEAR,OUTPUT 5TH,20T
€ 49.50
19
131291190
ref: 19
TOP GEAR,OUTPUT SHAFT
€ 69.50
20
131441049
ref: 20
SPROCKET-OUTPUT,12T
€ 17.00
20
131441050
ref: 20
SPROCKET-OUTPUT,13T
€ 18.00
20
131441036
ref: 20
SPROCKET-OUTPUT,11T
€ 22.00
21
480J2000
ref: 21
CIRCLIP-TYPE-C,20MM
€ 1.00
22
92022198
ref: 22
WASHER-PLAIN
€ 3.50
23
92022268
ref: 23
WASHER,16.3X24X1
€ 5.50
24
92024039
ref: 24
WASHER-LOCK
€ 4.00
25
920271244
ref: 25
COLLAR,OUTPUT SPROCKE
€ 11.50
26
92033025
ref: 26
CIRCLIP,25MM
€ 3.00
27
92055022
ref: 27
'O' RING
€ 4.00
