CRANKSHAFT/PISTON ('80 A1)
KDX175-A1 KDX175 1980 USA CANADA

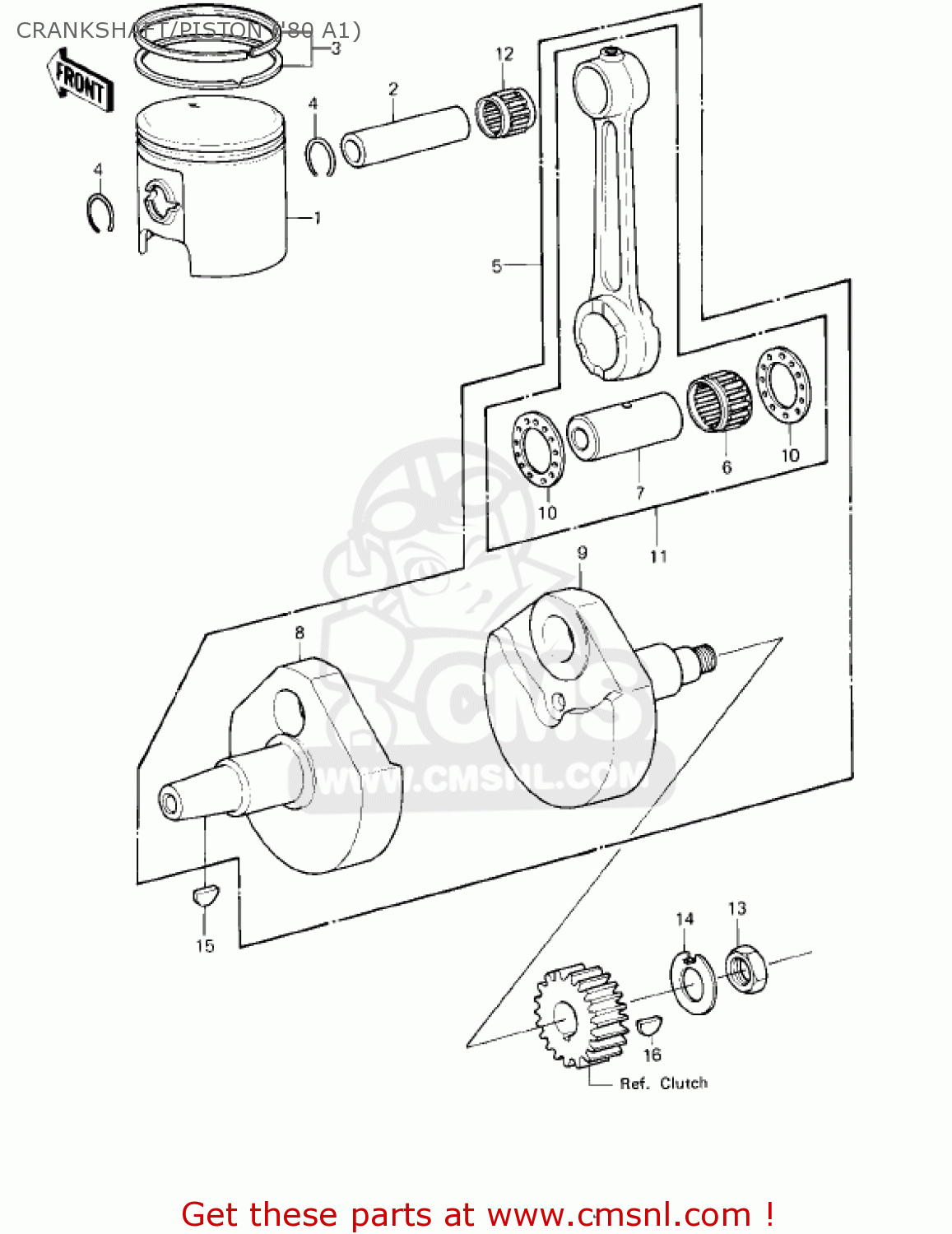

Crankshaft/piston ('80 a1) diagram KDX175-A1 KDX175 1980 USA CANADA
CRANKSHAFT/PISTON ('80 A1) KDX175-A1 KDX175 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
130011048
ref: 1
PISTON-ENGINE
€ 66.00
2
130021004
ref: 2
PIN-PISTON
€ 5.00
3
130085034
ref: 3
RING-SET-PISTON
€ 48.50
4
92036004
ref: 4
CIRCLIP-PISTON PIN
€ 0.50
5
130311032
ref: 5
CRANKSHAFT ASSY
€ 203.00
6
130341002
ref: 6
BEARING-NEEDLE,SKT228
€ 64.00
7
130351001
ref: 7
PIN-CRANK
€ 25.50
8
130371062
ref: 8
CRANKSHAFT,L.H
€ 131.50
9
130371063
ref: 9
CRANKSHAFT,R.H
€ 203.50
10
92026011
ref: 10
SPACER,22.5X37X1.0
€ 6.50
11
130445017
ref: 11
SET-CONNECTING ROD
€ 173.00
12
130331004
ref: 12
BEARING-NEEDLE,KBK162
€ 24.00
13
92015006
ref: 13
NUT,12MM
€ 3.50
14
920221063
ref: 14
WASHER,CLAW,12.5X32X0
€ 3.50
15
92038001
ref: 15
WOODRUFF KEY
€ 3.00
16
92038003
ref: 16
WOODRUFF KEY-PRY PINI
€ 1.50
