CRANKCASE ('80 A1)

KDX175-A1 KDX175 1980 USA CANADA

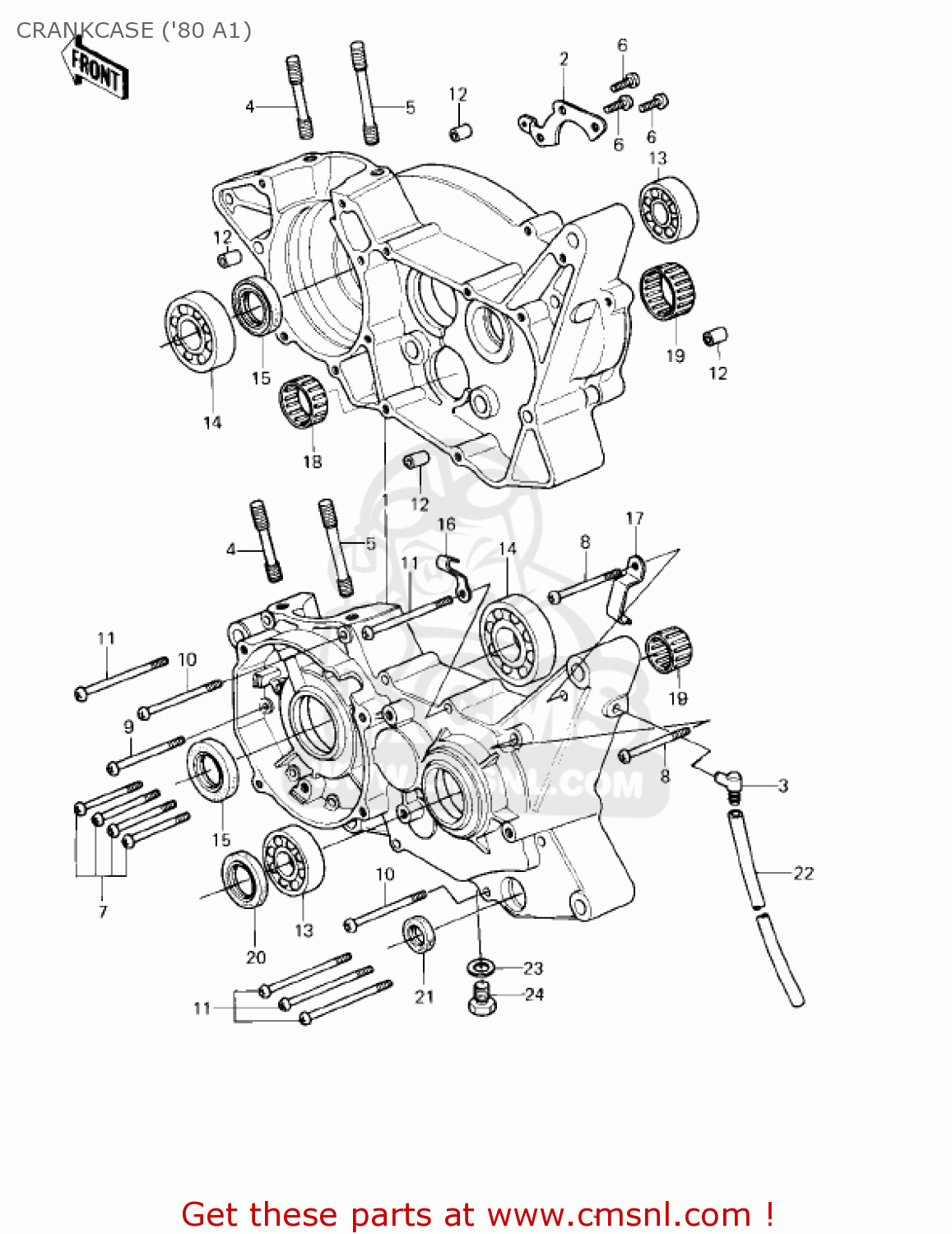

Crankcase ('80 a1) diagram KDX175-A1 KDX175 1980 USA CANADA

CRANKCASE ('80 A1) KDX175-A1 KDX175 1980 USA CANADA

CRANKCASE ('80 A1) KDX175-A1 KDX175 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

140015047
ref: 1

CRANKCASE SET

€ 443.00

2

140141003
ref: 2

PLATE POSITIONING

€ 3.00

3

14069003
ref: 3

BREATHER

€ 7.00

4

920041008
ref: 4

STUD, 8X25

€ 3.50

5

172G0855
ref: 5

STUD,8X55

€ 1.00

6

220B0616
ref: 6

SCREW-PAN HEAD,6X16

€ 2.50

7

220B0645
ref: 7

SCREW-PAN HEAD,6X45

€ 2.50

8

220B0650
ref: 8

SCREW-PAN HEAD,6X50

€ 2.00

9

220B0655
ref: 9

SCREW-PAN HEAD,6X55

€ 2.50

10

220B0660
ref: 10

SCREW-PAN HEAD,6X60

€ 2.50

11

220B0670
ref: 11

SCREW-PAN HEAD,6X70

€ 2.50

12

920431037
ref: 12

PIN,DOWEL,10X8.2X14

€ 0.50

13

601B6204
ref: 13

BEARING-BALL,#6204C3

€ 8.00

14

601B6305
ref: 14

BEARING-BALL,#6305C3

€ 30.00

15

920491250
ref: 15

SEAL-OIL

€ 12.00

15

92037016
ref: 15

CLAMP,WIRING HARNESS

€ 1.50

17

920371073
ref: 17

CLAMP

€ 2.50

18

92046043
ref: 18

BEARING-NEEDLE,36BDM4

€ 17.00

19

920461007
ref: 19

BEARING-NEEDLE,TLA161

€ 18.50

20

92050013
ref: 20

OIL SEAL SC25376

€ 9.50

21

92051005A
ref: 21

OIL SEAL,TB13225.5

€ 5.50

22

92059061
ref: 22

PIPE-BREATHER

€ 3.00

23

92065058
ref: 23

GASKET, 10,5X16X1 (NAS)

€ 2.50

24

92067001
ref: 24

PLUG-OIL DRAIN

€ 3.00
