Genuine KDX Kawasaki Parts delivered quickly!


BRAKE PEDAL/TORQUE LINK ('80 A1)

KDX175-A1 KDX175 1980 USA CANADA

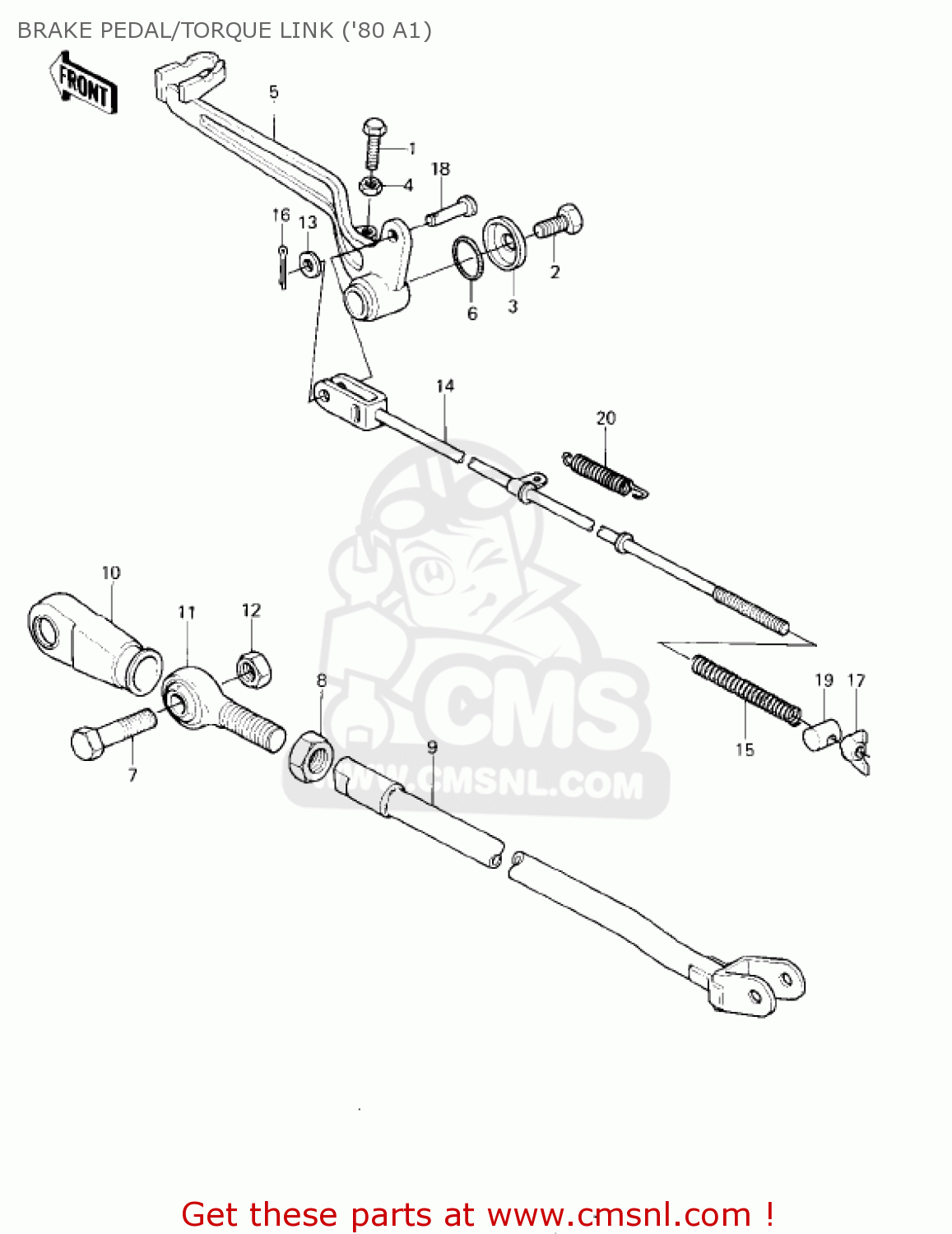

Brake pedal/torque link ('80 a1) diagram KDX175-A1 KDX175 1980 USA CANADA

BRAKE PEDAL/TORQUE LINK ('80 A1) KDX175-A1 KDX175 1980 USA CANADA
BRAKE PEDAL/TORQUE LINK ('80 A1) KDX175-A1 KDX175 1980 USA CANADA
BRAKE PEDAL/TORQUE LINK ('80 A1) KDX175-A1 KDX175 1980 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
112G0625
ref: 1
BOLT-UPSET,6X25
112G0625
€ 4.00
2
114G0812
ref: 2
BOLT-SMALL,8X12
€ 2.00
3
110121116
ref: 3
CAP,BRAKE PEDAL FITT
110121116
€ 3.00
4
311B0600
ref: 4
NUT,6MM
311B0600
€ 0.50
5
430011043
ref: 5
PEDAL,BRAKE
430011043
€ 39.00
6
670B2018
ref: 6
O RING,18MM
670B2018
€ 1.00
7
113P1235A
ref: 7
BOLT,HEX HEAD 12X35
€ 4.00
8
315B1200
ref: 8
NUT,12MM
315B1200
€ 0.50
9
430071018
ref: 9
TORQUE LINK,RR BRAKE
430071018
€ 42.00
10
490061035
ref: 10
BOOT,BALL JOINT
490061035
€ 5.50
11
592661003
ref: 11
JOINT,BALL TORQUE LNK
592661003
€ 58.00
12
92019009
ref: 12
NUT,LOCK,12MM
92019009
€ 5.00
13
410B0600
ref: 13
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
14
430111019
ref: 14
ROD-BRAKE
€ 28.00
15
43012001
ref: 15
SPRING,BRAKE ROD
43012001
€ 3.00
16
550D2015
ref: 16
PIN-COTTER,2.0X15
550D2015
€ 1.00
17
920154004
ref: 17
NUT,BRAKE ADJUSTING
920154004
€ 4.50
18
92043064
ref: 18
PIN-BRAKE ROD FITTING
92043064
€ 4.50
19
920431024
ref: 19
PIN,BRAKE
920431024
€ 6.00
20
920811059
ref: 20
SPRING,RETURN
920811059
€ 5.50
