CARBURETOR (KDX175-A2)
KDX175-A1 KDX175 1980 USA CANADA

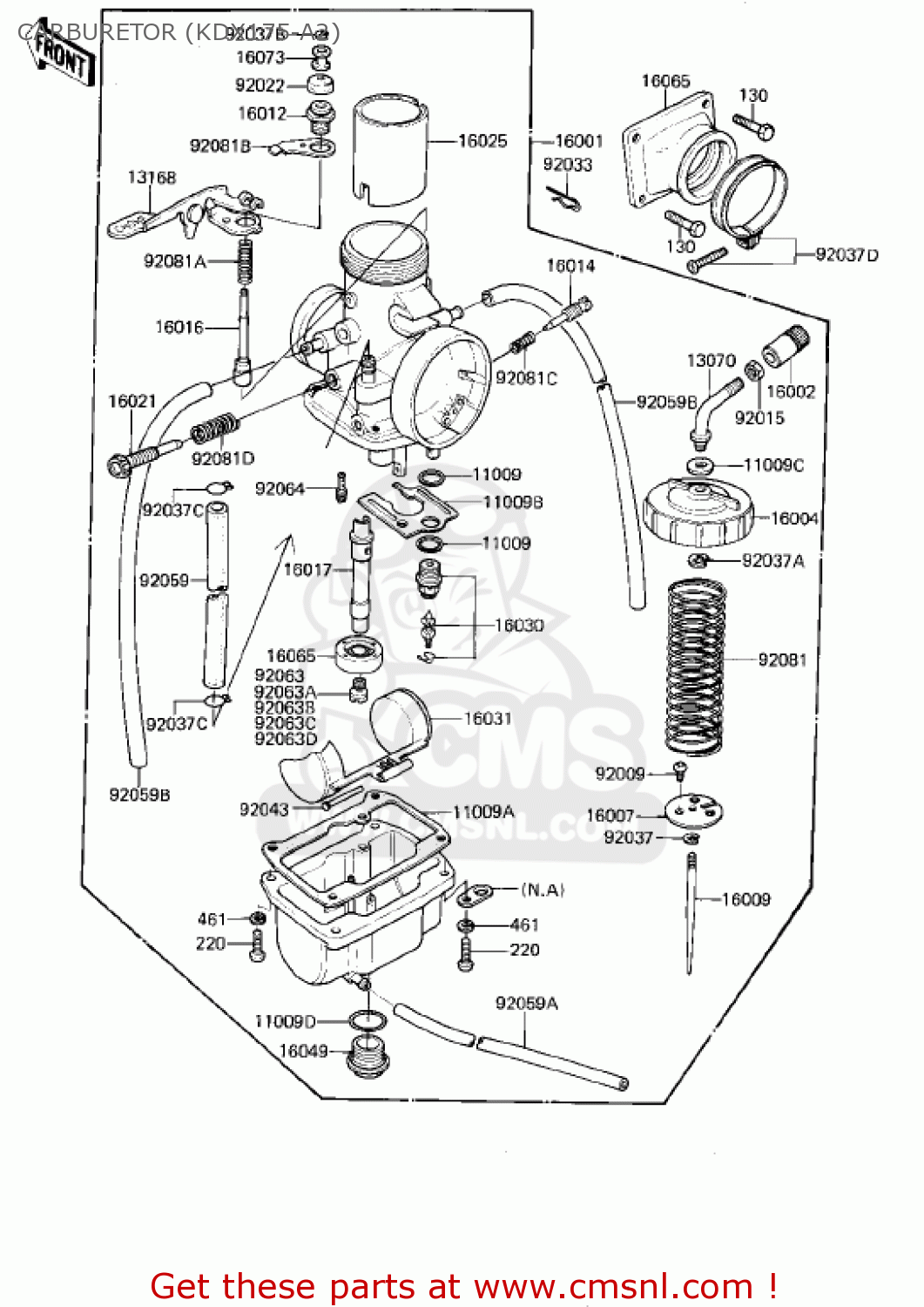

Carburetor (kdx175-a2) diagram KDX175-A1 KDX175 1980 USA CANADA
CARBURETOR (KDX175-A2) KDX175-A1 KDX175 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091076
ref: 11009
GASKET,FLOAT VALVE (NAS)
€ 2.00
11009A
110091079
ref: 11009A
GASKET,FLOAT CHAMBER (NAS)
€ 8.00
11009B
110091080
ref: 11009B
PLATE,FLOAT CHAMBER
€ 8.00
11009C
110091191
ref: 11009C
GASKET,CABLE GUIDE (NAS)
€ 4.50
11009D
16038009
ref: 11009D
GASKET,MAIN JET COVER
€ 5.50
13070
130701010
ref: 13070
GUIDE,CABLE
€ 23.50
13168
131681066
ref: 13168
LEVER
€ 20.00
16001
160011339
ref: 16001
CARBURETOR,ASSY
€ 205.50
16002
160021006
ref: 16002
ADJUSTER-CABLE
€ 6.50
16004
160041003
ref: 16004
TOP,MIXING CHAMBER
€ 30.50
16007
160071007
ref: 16007
SEAT-SPRING,THROTTLE
€ 6.50
16009
160091067
ref: 16009
NEEDLE-JET,6F21
€ 26.50
16012
16012016
ref: 16012
CAP-STARTER PLUNGER
€ 6.50
16014
16014006
ref: 16014
SCREW-PILOT AIR
€ 9.00
16016
160161014
ref: 16016
PLUNGER ASSY,STARTER
€ 18.50
16017
160171077
ref: 16017
JET-NEEDLE,Q-8
€ 25.50
16021
160211034
ref: 16021
SCREW-THROTTLE STOP
€ 12.50
16025
160251051
ref: 16025
VALVE-THROTTLE,CA2.5
€ 61.50
16030
16030022
ref: 16030
FLOAT VALVE ASSY
€ 22.50
16031
16031025
ref: 16031
FLOAT
€ 44.50
16049
16049006
ref: 16049
COVER-MAIN JET
€ 10.50
16065
160651007
ref: 16065
HOLDER-CARBURETOR
€ 65.00
16073
16073014
ref: 16073
COLLAR,STARTER PLUNGE
€ 5.50
92009
920091037
ref: 92009
SCREW,4X5
€ 2.50
92015
16003004
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92022
16039015
ref: 92022
CAP,STARTER PLUNGER
€ 4.50
92033
92036018
ref: 92033
CIRCLIP
€ 2.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92037A
16008011
ref: 92037A
CLAMP,CABLE GUIDE
€ 4.50
92037B
16076003
ref: 92037B
CLAMP
€ 4.50
92037C
92037056
ref: 92037C
CLAMP,FUEL TUBE
€ 3.00
92037D
920371172
ref: 92037D
CLAMP
€ 5.50
92043
16032008
ref: 92043
PIN,FLOAT
€ 4.00
92059
920591025
ref: 92059
HOSE,OVERFLOW
€ 18.00
92059A
920591084
ref: 92059A
HOSE,6.5X11.5X240
€ 14.50
92059B
920591178
ref: 92059B
HOSE,OVERFLOW
€ 18.00
92063
920631018
ref: 92063
(OFF ROAD USE ONLY)
JET-MAIN,#160R
€ 8.50
92063A
920631019
ref: 92063A
(OFF ROAD USE ONLY)
JET-MAIN,#162.5R
€ 11.50
92063B
920631025
ref: 92063B
(OFF ROAD USE ONLY)
JET-MAIN,#155R
€ 8.50
92063C
920631026
ref: 92063C
JET-MAIN,#157.5R
€ 8.50
92063D
92063121
ref: 92063D
(OFF ROAD USE ONLY)
MAIN JET,#152.5R
€ 7.00
92064
92064024
ref: 92064
JET-PILOT,#40
€ 14.00
92081
16006016
ref: 92081
SPRING-THROTTLE VALVE
€ 12.50
92081A
16013008
ref: 92081A
SPRING-STARTER PLUNG
€ 4.50
92081B
16013009
ref: 92081B
SPRING,STARTER LEVER
€ 3.50
92081C
16022007
ref: 92081C
SPRING-THR STOP SCREW
€ 5.50
92081D
920811200
ref: 92081D
SPRING,THROTT STP SCR
€ 5.50
130
130G0620
ref: 130
BOLT,FLANGED,6X20
€ 2.50
220
214B0516A
ref: 220
UNAVAILABLE IN PRICE BOOK
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
