FRAME ('80 A1)

KDX175-A1 KDX175 1980 USA CANADA

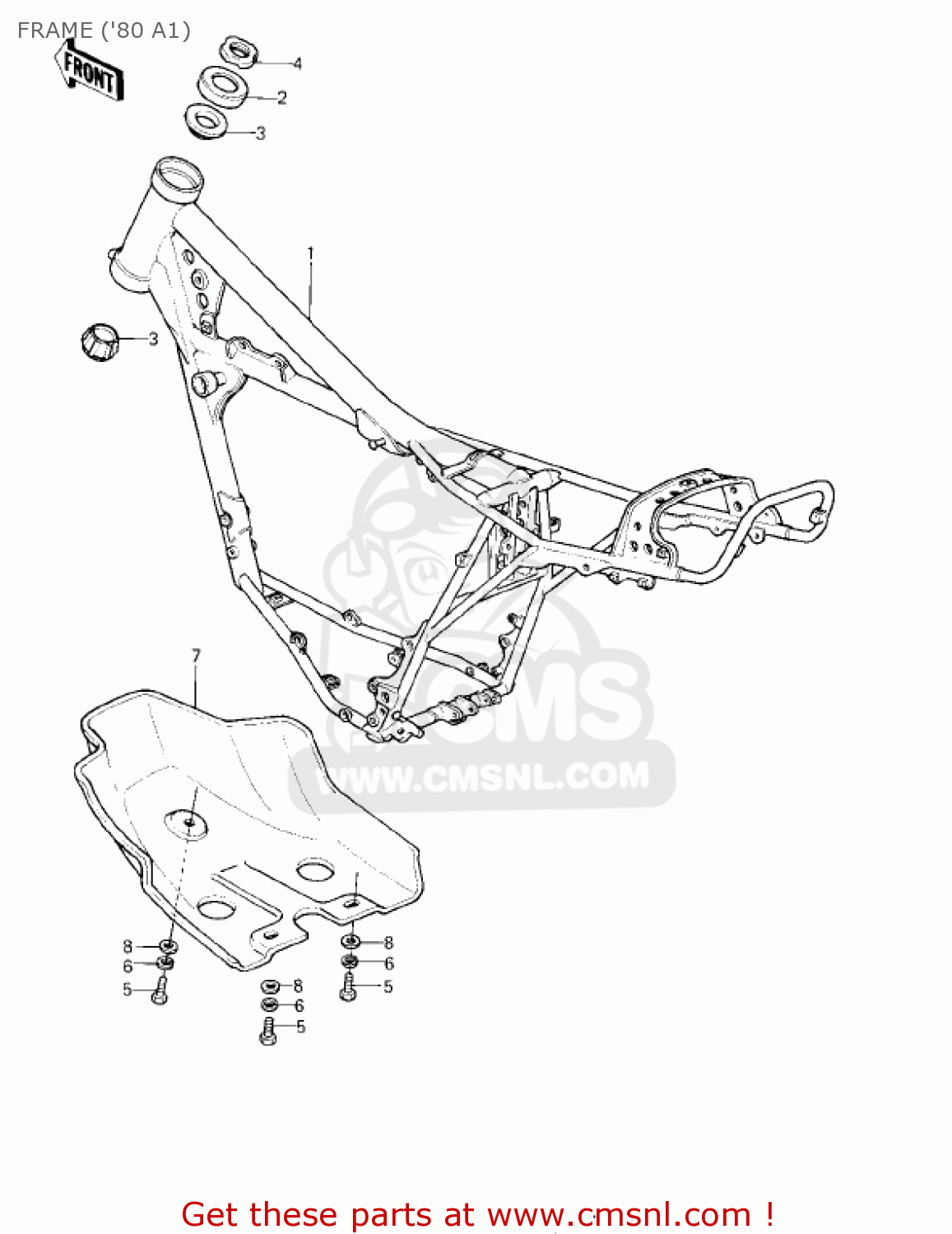

Frame ('80 a1) diagram KDX175-A1 KDX175 1980 USA CANADA

FRAME ('80 A1) KDX175-A1 KDX175 1980 USA CANADA

FRAME ('80 A1) KDX175-A1 KDX175 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

320021115
ref: 1

FRAME

€ 724.50

2

46098015
ref: 2

CAP,STEERING STEM

€ 3.50

3

92047017
ref: 3

CONE,STRNG,STEM

€ 49.50

4

920151546
ref: 4

NUT,25MM,T=12

€ 14.50

5

112G0616
ref: 5

BOLT UPSET,6X16

€ 1.00

6

461F0600
ref: 6

WASHER-SPRING,6MM

€ 0.50

7

550201040
ref: 7

GUARD,ENGINE

€ 30.00

8

92022125
ref: 8

WASHER,6.5X20X1.6

€ 1.00
