SEAT/SIDE COVERS ('80 A1)

KDX175-A1 KDX175 1980 USA CANADA

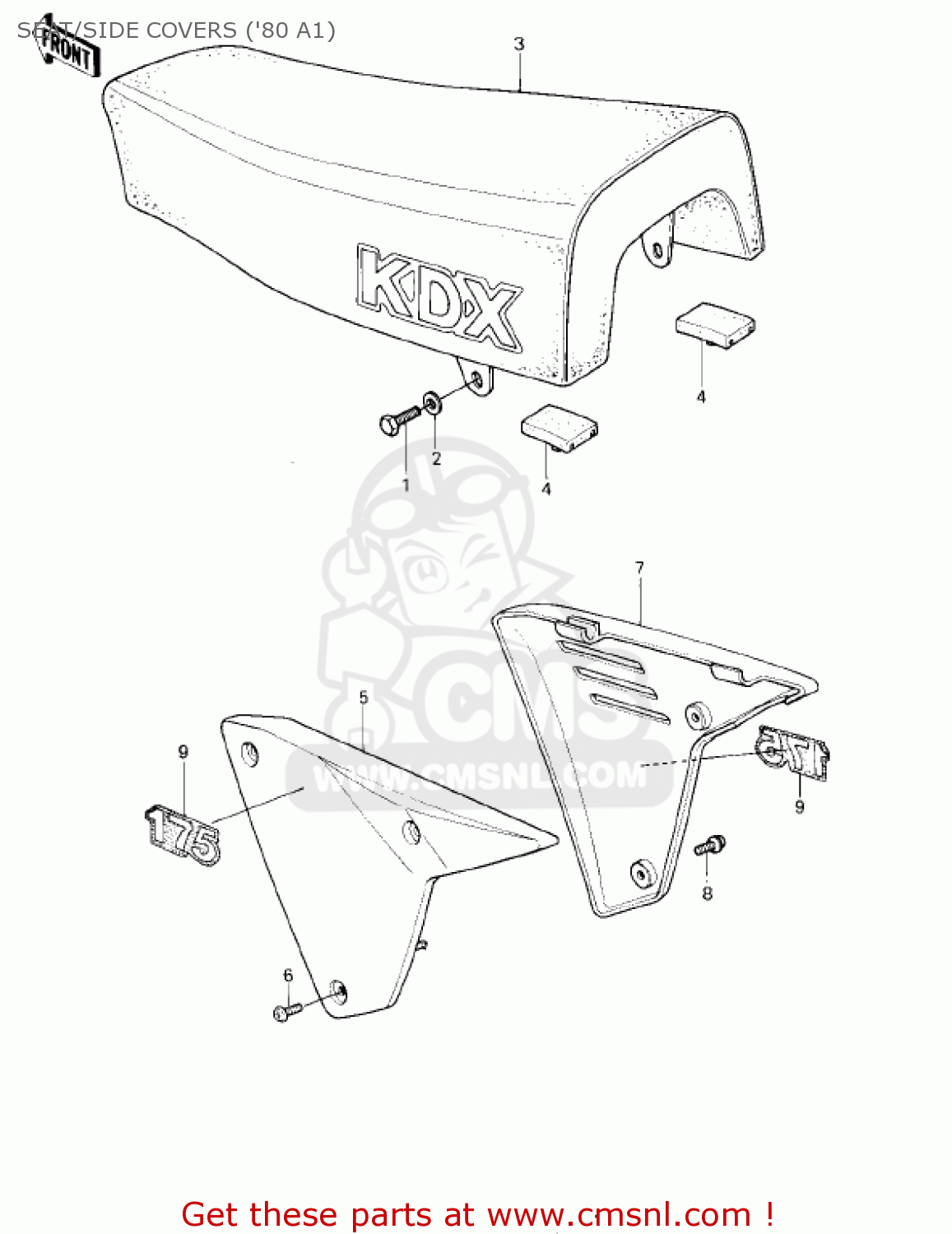

Seat/side covers ('80 a1) diagram KDX175-A1 KDX175 1980 USA CANADA

SEAT/SIDE COVERS ('80 A1) KDX175-A1 KDX175 1980 USA CANADA

SEAT/SIDE COVERS ('80 A1) KDX175-A1 KDX175 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

115G0816
ref: 1

BOLT-HEX,HEAD 8X16

€ 0.50

2

411B0800
ref: 2

WASHER-PLAIN,8MM

€ 0.50

3

530011111
ref: 3

SEAT ASSY

€ 295.50

4

920751226
ref: 4

DAMPER,SEAT

€ 2.50

5

3600110876W
ref: 5

COVER-SIDE,LH,L.GREEN

€ 47.00

6

920091287
ref: 6

SCREW,6X14

€ 1.50

7

3600111056W
ref: 7

COVER-SIDE,RH,L.GREEN

€ 81.50

8

920091287
ref: 8

SCREW,6X14

€ 1.50

9

560181140
ref: 9

EMBLEM,SIDE COVER

€ 15.50
