Genuine KDX Kawasaki Parts delivered quickly!

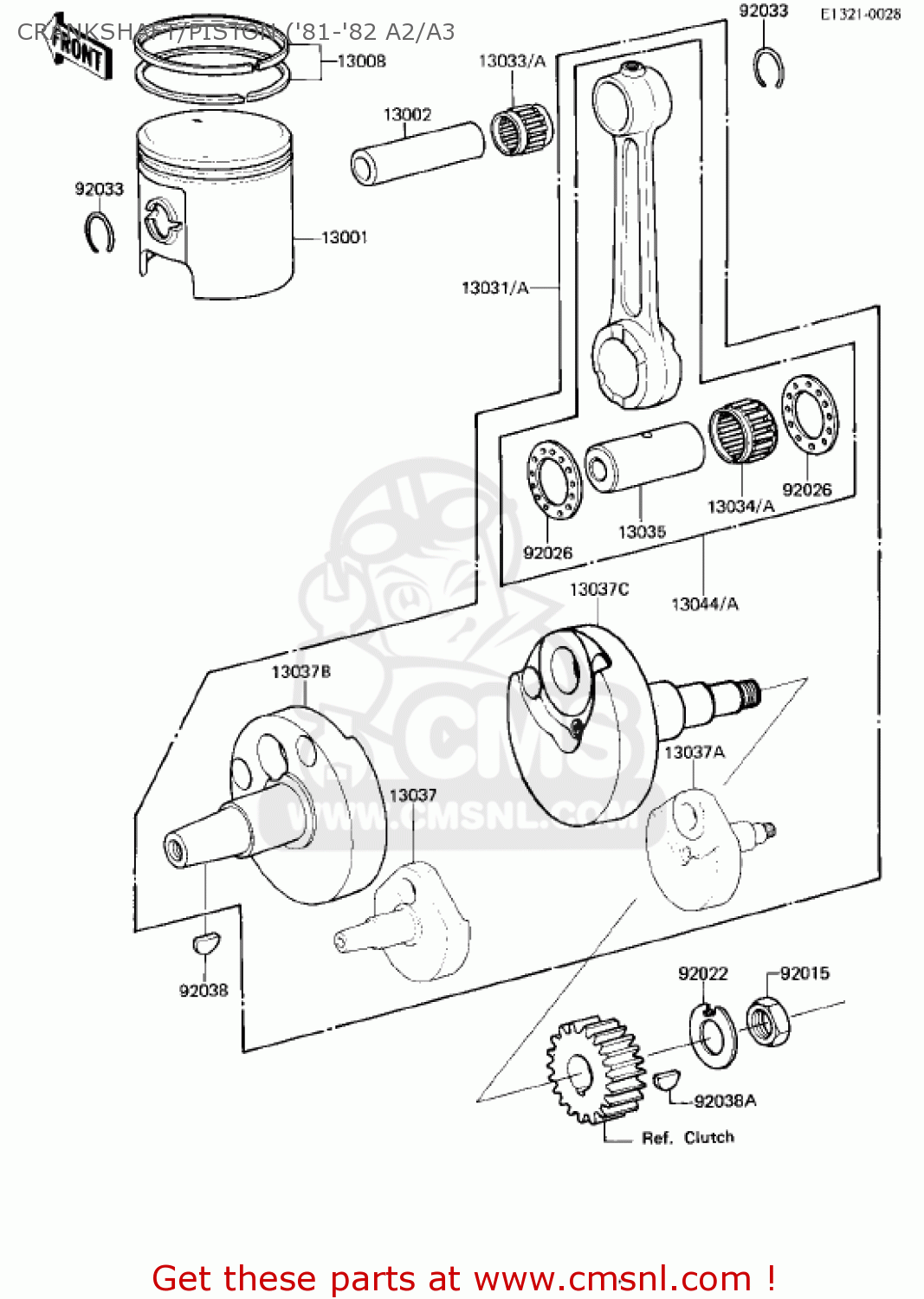

CRANKSHAFT/PISTON ('81-'82 A2/A3

KDX175-A1 KDX175 1980 USA CANADA

Crankshaft/piston ('81-'82 a2/a3 diagram KDX175-A1 KDX175 1980 USA CANADA

CRANKSHAFT/PISTON ('81-'82 A2/A3 KDX175-A1 KDX175 1980 USA CANADA
CRANKSHAFT/PISTON ('81-'82 A2/A3 KDX175-A1 KDX175 1980 USA CANADA
CRANKSHAFT/PISTON ('81-'82 A2/A3 KDX175-A1 KDX175 1980 USA CANADA
prices are in EUR
ref
part #
description
quantity
13001
130011048
ref: 13001
PISTON-ENGINE
130011048
€ 66.00
13002
130021004
ref: 13002
PIN-PISTON
130021004
€ 5.00
13008
130085034
ref: 13008
RING-SET-PISTON
130085034
€ 48.50
13031
130311032
ref: 13031
CRANKSHAFT ASSY
€ 203.00
13031A
130315010
ref: 13031A
CRANKSHAFT COMP
€ 267.50
13033
130331004
ref: 13033
BEARING-NEEDLE,KBK162
130331004
€ 24.00
13033A
130331007
ref: 13033A
BEARING-SMALL END
130331007
€ 24.00
13034
130341002
ref: 13034
BEARING-NEEDLE,SKT228
130341002
€ 64.00
13034A
130341035
ref: 13034A
BEARING-BIG END,SKT22
130341035
€ 37.50
13035
130351001
ref: 13035
PIN-CRANK
130351001
€ 25.50
13037
130371062
ref: 13037
CRANKSHAFT,L.H
€ 131.50
13037A
130371063
ref: 13037A
CRANKSHAFT,R.H
€ 203.50
13037B
130371103
ref: 13037B
CRANKSHAFT,LH
€ 130.00
13037C
130371104
ref: 13037C
CRANKSHAFT,RH
€ 131.50
13044
130445017
ref: 13044
SET-CONNECTING ROD
130445017
€ 173.00
13044A
130445018
ref: 13044A
SET-CONNECTING ROD
€ 132.00
92015
92015006
ref: 92015
NUT,12MM
92015006
€ 3.50
92022
920221063
ref: 92022
WASHER,CLAW,12.5X32X0
920221063
€ 3.50
92026
92026011
ref: 92026
SPACER,22.5X37X1.0
92026011
€ 6.50
92033
92036004
ref: 92033
CIRCLIP-PISTON PIN
92036004
€ 0.50
92038
92038001
ref: 92038
WOODRUFF KEY
92038001
€ 3.00
92038A
92038003
ref: 92038A
WOODRUFF KEY-PRY PINI
92038003
€ 1.50
