CYLINDER HEAD/CYLINDER/REED VALV

KDX175-A1 KDX175 1980 USA CANADA

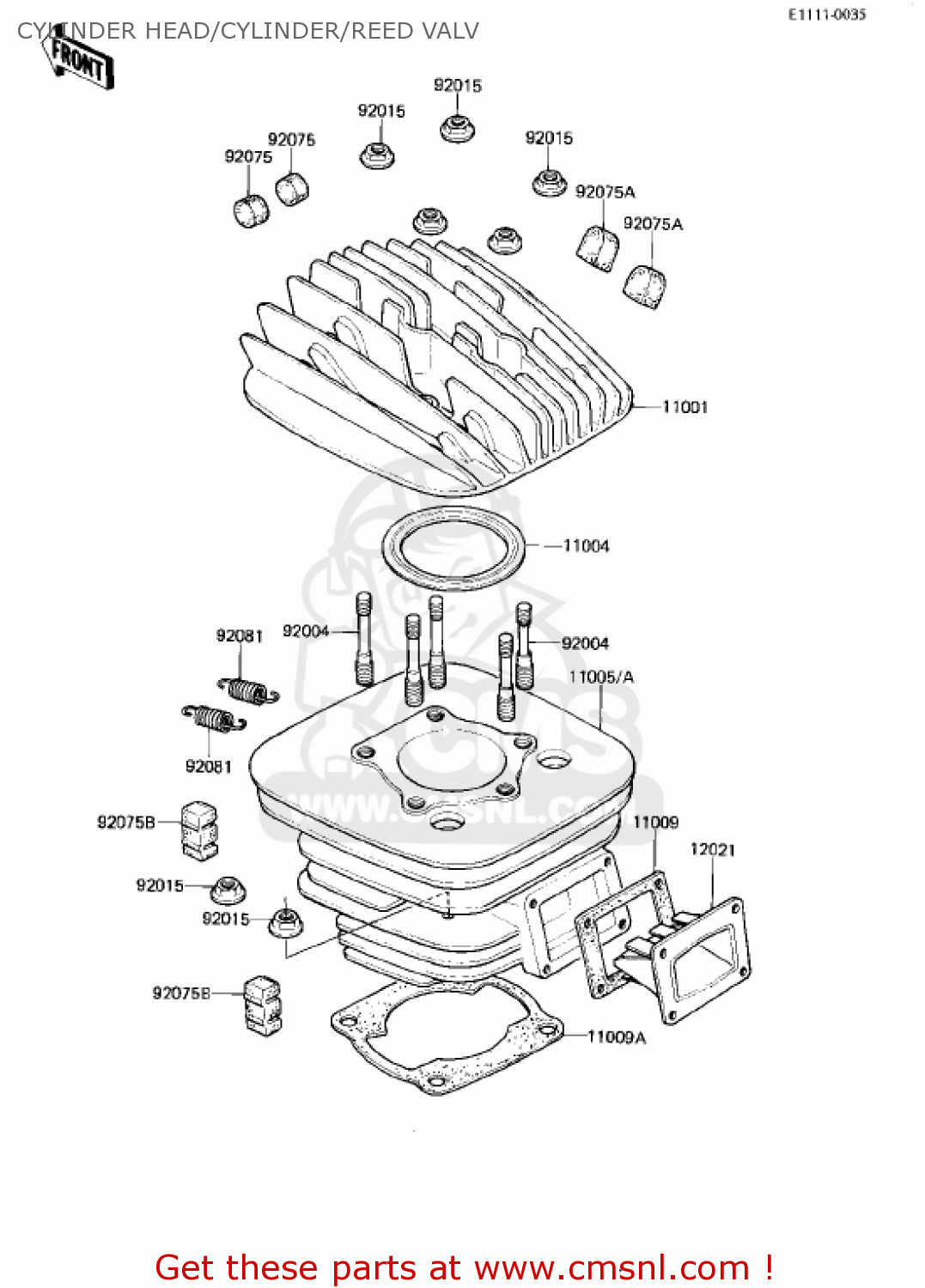

Cylinder head/cylinder/reed valv diagram KDX175-A1 KDX175 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

11001

110011052
ref: 11001

CYLINDER HEAD,F.BLACK

€ 71.00

11004

110041052
ref: 11004

GASKET-HEAD,CYLINDER (NAS)

€ 13.50

11005

110051060
ref: 11005

CYLINDER,ELECTRO-FUSE

€ 626.00

11005A

110051142
ref: 11005A

CYLINDER-ENGINE,ELECT

€ 626.00

11009

110091018
ref: 11009

GASKET,REED VALVE (MCA)

€ 3.50

11009A

110091175
ref: 11009A

GASKET,CYLINDER BASE (MCA)

€ 5.50

12021

120211007
ref: 12021

VALVE-ASSY-REED

€ 101.50

92004

920041026
ref: 92004

STUD,CYLINDER

€ 4.50

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92075

920751018
ref: 92075

DAMPER,CYLINDER HEAD

€ 2.00

92075A

920751176
ref: 92075A

DAMPER,CYLINDER HEAD

€ 2.50

92075B

920751229
ref: 92075B

DAMPER,CYLINDER

€ 4.50

92081

18071003
ref: 92081

SPRING,MUFFLER CONNEC

€ 7.50
