CLUTCH ('80 A1)
KDX175-A1 KDX175 1980 USA CANADA

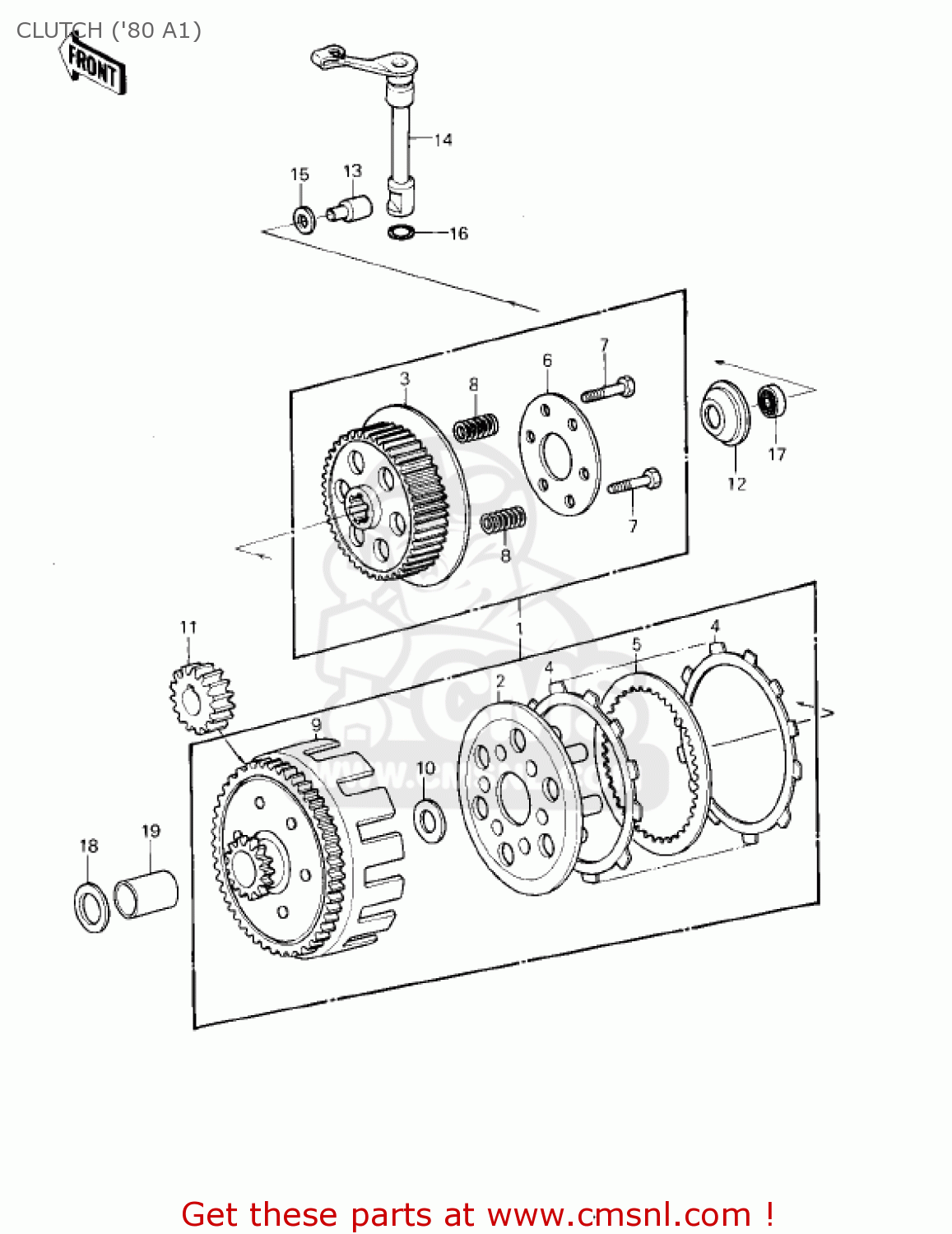

Clutch ('80 a1) diagram KDX175-A1 KDX175 1980 USA CANADA
CLUTCH ('80 A1) KDX175-A1 KDX175 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
130811040
ref: 1
CLUTCH ASSY
€ 272.50
2
130861001
ref: 2
WHEEL,CLUTCH
€ 25.00
3
130871014
ref: 3
HUB,CLUTCH
€ 39.50
4
130881015
ref: 4
PLATE-FRICTION (NAS)
€ 11.50
5
13089003
ref: 5
PLATE-CLUTCH,STEEL (NAS)
€ 7.50
6
13091015
ref: 6
HOLDER,CLUTCH SPRING
€ 12.50
7
92003078
ref: 7
BOLT,5X18
€ 2.00
8
92081123
ref: 8
SPRING,CLUTCH
€ 4.50
9
130951027
ref: 9
HOUSING-COMP-CLUTCH
€ 421.00
10
92022223
ref: 10
WASHER,20.5X30X1.4
€ 8.50
11
130971033
ref: 11
GEAR,PRIMARY,23T
€ 82.00
12
130911071
ref: 12
HOLDER,CLUTCH PUSHER
€ 15.00
13
131141004
ref: 13
PUSHER-CLUTCH
€ 16.50
14
132361022
ref: 14
LEVER ASSY,CLUTCH REL
€ 22.50
15
411B0600
ref: 15
WASHER-PLAIN,6MM
€ 0.50
16
670B2010
ref: 16
O RING,10MM
€ 1.00
17
920451211
ref: 17
BEARING-BALL
€ 11.00
18
92022223
ref: 18
WASHER,20.5X30X1.4
€ 8.50
19
920281081
ref: 19
BUSHING,20X25X31.2
€ 28.00
