BRAKE PEDAL/TORQUE LINK ('81-'82

KDX175-A1 KDX175 1980 USA CANADA

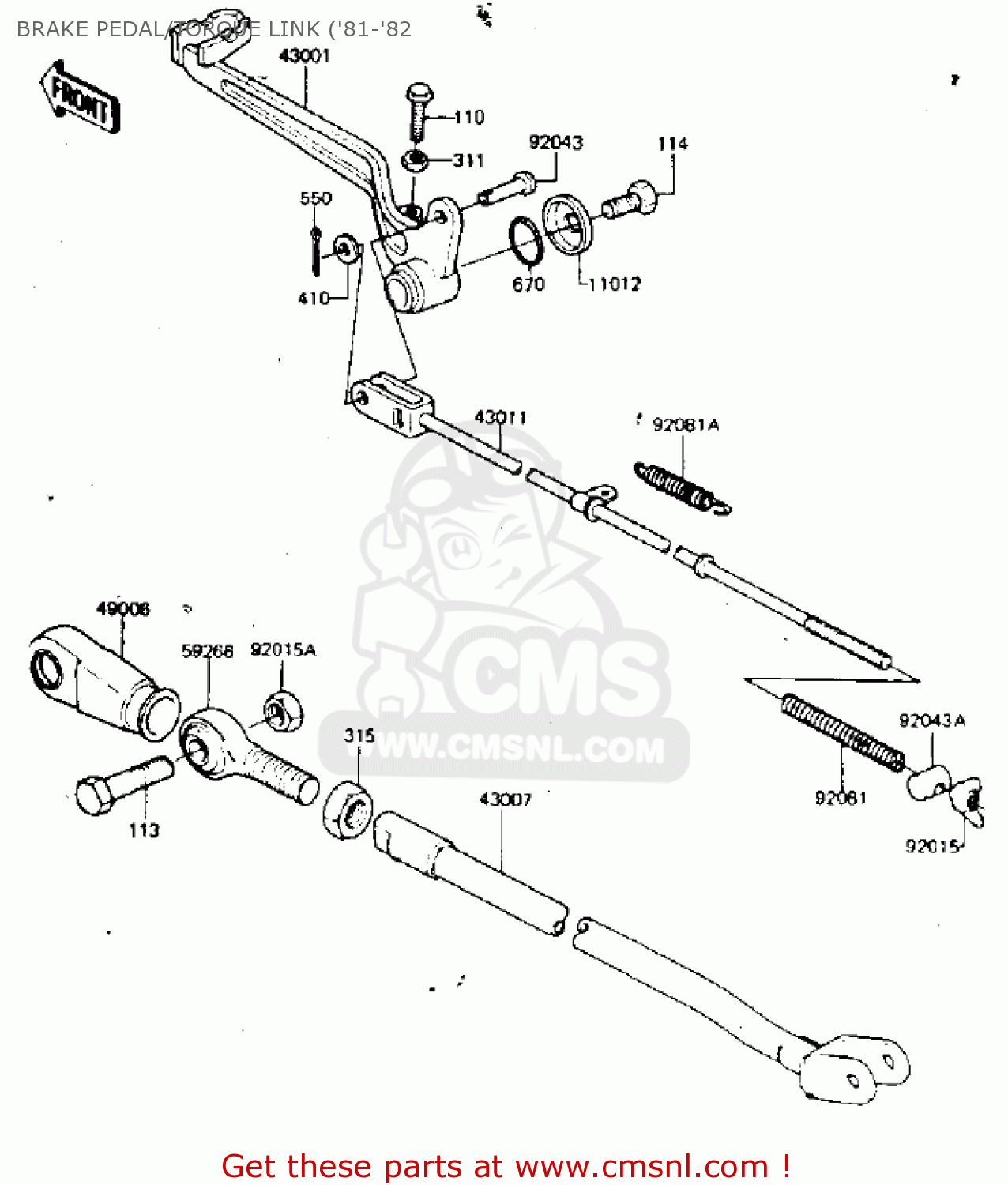

Brake pedal/torque link ('81-'82 diagram KDX175-A1 KDX175 1980 USA CANADA

BRAKE PEDAL/TORQUE LINK ('81-'82 KDX175-A1 KDX175 1980 USA CANADA
BRAKE PEDAL/TORQUE LINK ('81-'82 KDX175-A1 KDX175 1980 USA CANADA
BRAKE PEDAL/TORQUE LINK ('81-'82 KDX175-A1 KDX175 1980 USA CANADA
prices are in EUR
ref
part #
description
quantity
11012
110121116
ref: 11012
CAP,BRAKE PEDAL FITT
110121116
€ 3.00
43001
430011043
ref: 43001
PEDAL,BRAKE
430011043
€ 39.00
43007
430071018
ref: 43007
TORQUE LINK,RR BRAKE
430071018
€ 42.00
43011
430111019
ref: 43011
ROD-BRAKE
€ 28.00
49006
490061035
ref: 49006
BOOT,BALL JOINT
490061035
€ 5.50
59266
592661003
ref: 59266
JOINT,BALL TORQUE LNK
592661003
€ 58.00
92015
920154004
ref: 92015
NUT,BRAKE ADJUSTING
920154004
€ 4.50
92015A
92019009
ref: 92015A
NUT,LOCK,12MM
92019009
€ 5.00
92043
92043064
ref: 92043
PIN-BRAKE ROD FITTING
92043064
€ 4.50
92043A
920431024
ref: 92043A
PIN,BRAKE
920431024
€ 6.00
92081
43012001
ref: 92081
SPRING,BRAKE ROD
43012001
€ 3.00
92081A
920811059
ref: 92081A
SPRING,RETURN
920811059
€ 5.50
110
112G0625
ref: 110
BOLT-UPSET,6X25
112G0625
€ 4.00
113
113P1235A
ref: 113
BOLT,HEX HEAD 12X35
€ 4.00
114
114G0812
ref: 114
BOLT-SMALL,8X12
€ 2.00
311
311B0600
ref: 311
NUT,6MM
311B0600
€ 0.50
315
315B1200
ref: 315
NUT,12MM
315B1200
€ 0.50
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
670
670B2018
ref: 670
O RING,18MM
670B2018
€ 1.00
