FOOTRESTS ('81-'82 A2/A3)

KDX175-A1 KDX175 1980 USA CANADA

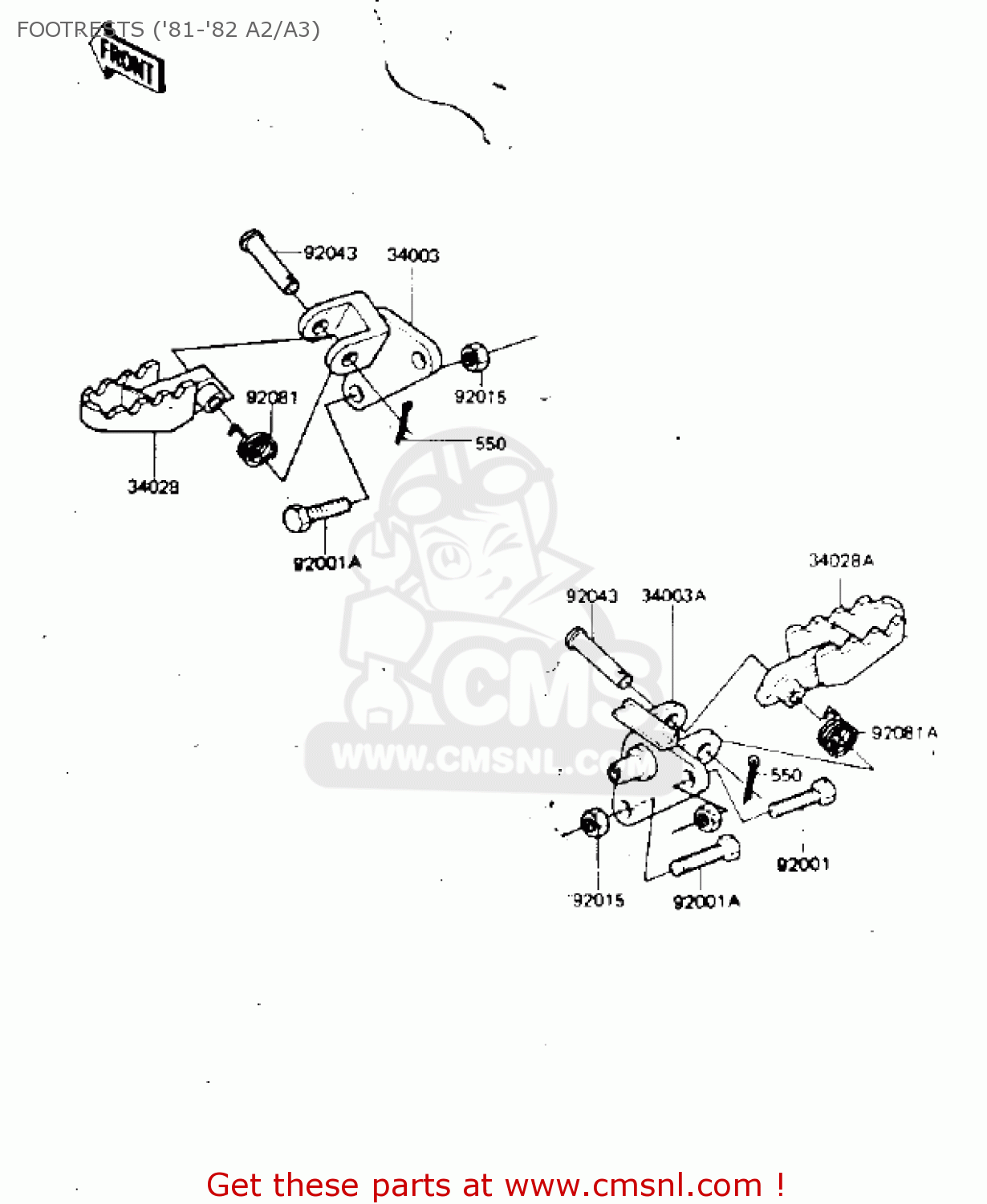

Footrests ('81-'82 a2/a3) diagram KDX175-A1 KDX175 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

34003

340031054
ref: 34003

HOLDER,FTRST STEP,L.H

€ 27.50

34003A

340031088
ref: 34003A

HOLDER,FTRST STEP,R.H

€ 41.50

34028

340281026
ref: 34028

STEP,LH

€ 20.50

34028A

340281027
ref: 34028A

STEP,FOOTREST,R.H

€ 43.50

92001

920011438
ref: 92001

BOLT,8X32

€ 2.00

92001A

920011439
ref: 92001A

BOLT,8X50

€ 2.50

92015

920151134
ref: 92015

NUT,8MM

€ 3.50

92043

920431069
ref: 92043

PIN,FOOTREST STEP FIT

€ 4.00

92081

920811254
ref: 92081

SPRING,FOOTREST,L.H

€ 3.50

92081A

920811255
ref: 92081A

SPRING,FOOTREST,R.H

€ 4.50

550

550D2518
ref: 550

PIN,COTTER,2.5X18

€ 0.50
