HEADLIGHT ('81-'82 A2/A3)
KDX175-A1 KDX175 1980 USA CANADA

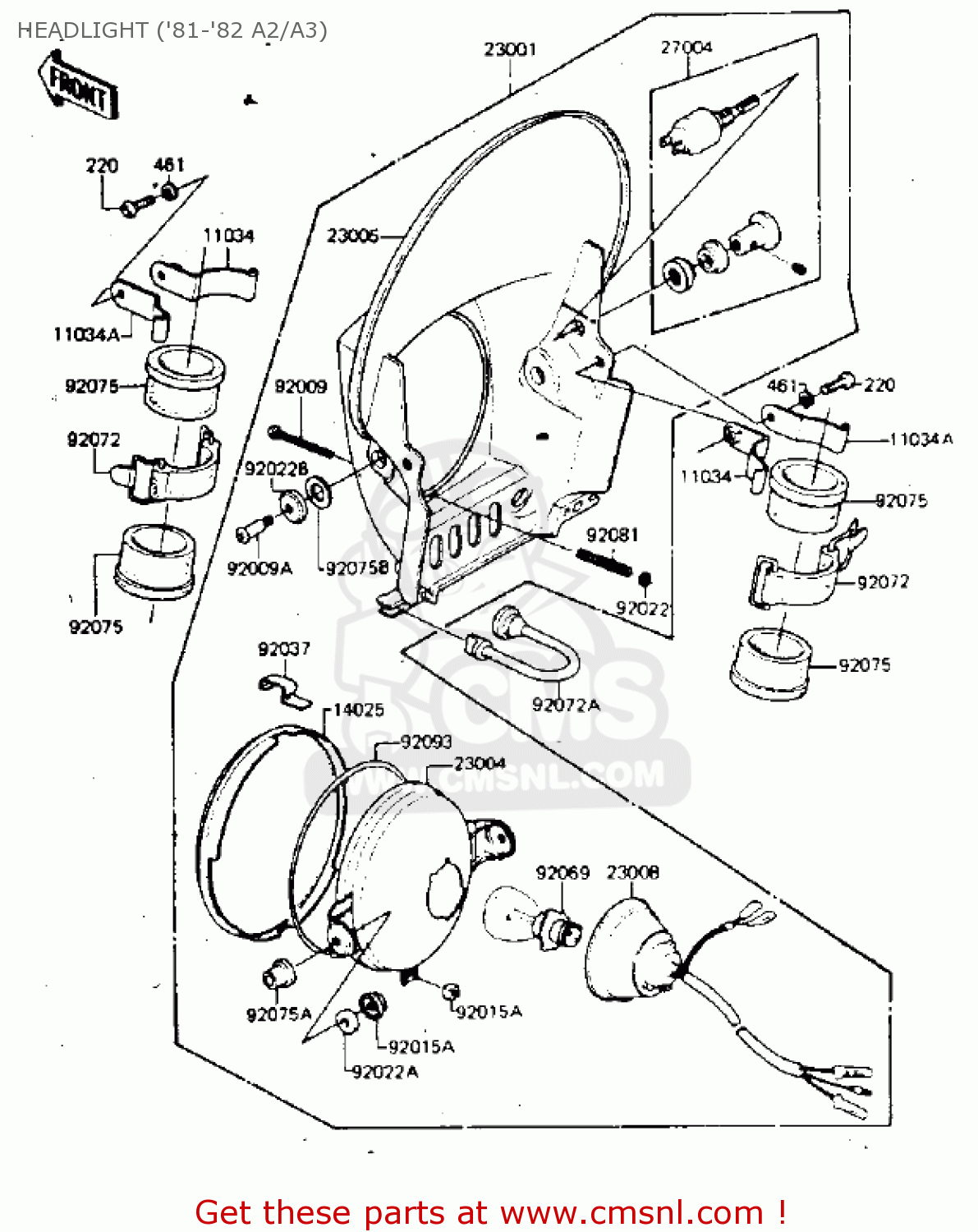

Headlight ('81-'82 a2/a3) diagram KDX175-A1 KDX175 1980 USA CANADA
HEADLIGHT ('81-'82 A2/A3) KDX175-A1 KDX175 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11034
110341688
ref: 11034
BRACKET,HEAD LAMP FIT
€ 6.00
11034A
110341693
ref: 11034A
BRACKET,HEAD LAMP FIT
€ 4.50
14025
140254002
ref: 14025
COVER,HEAD LAMP
€ 18.00
23001
230014001
ref: 23001
HEAD LAMP ASSY
€ 166.50
23004
230044001
ref: 23004
LENS UNIT,HEAD LAMP
€ 35.00
23005
2300550027F
ref: 23005
BODY-COMP-HEAD LAMP,L
€ 102.00
23008
230084001
ref: 23008
SOCKET-ASSY,HEAD LAMP
€ 51.00
27004
270044001
ref: 27004
SWITCH ASSY,HEAD LAMP
€ 48.50
92009
920094002
ref: 92009
SCREW,ADJUSTING,4X43
€ 4.00
92009A
920094003
ref: 92009A
SCREW,HEAD LAMP
€ 1.50
92015
23020018
ref: 92015
NUT,4MM,FOCUS ADJUST
€ 3.00
92015A
23020023
ref: 92015A
NUT,5MM
€ 3.00
92022
23021004
ref: 92022
WASHER,4.1X8X0.8
€ 2.00
92022A
23021012
ref: 92022A
WASHER
€ 3.00
92022B
920224005
ref: 92022B
WASHER,HEAD LAMP
€ 3.00
92037
920374001
ref: 92037
CLAMP,HEAD LAMP
€ 6.00
92069
920694001
ref: 92069
BULB,6V-35/25W
€ 9.00
92072
92072076
ref: 92072
BAND,L=40
€ 14.00
92072A
92072077
ref: 92072A
BAND
€ 3.50
92075
920751236
ref: 92075
DAMPER RUBBER,LAMP
€ 8.50
92075A
920754009
ref: 92075A
DAMPER RUBBER,HD LAMP
€ 2.50
92075B
920754010
ref: 92075B
DAMPER,HEAD LAMP
€ 2.50
92081
920814003
ref: 92081
SPRING,FOCUS ADJUST
€ 1.50
92093
920934001
ref: 92093
SEAL,HEAD LAMP
€ 3.50
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
