KICKSTARTER MECHANISM ('80 A1)

KDX175-A1 KDX175 1980 USA CANADA

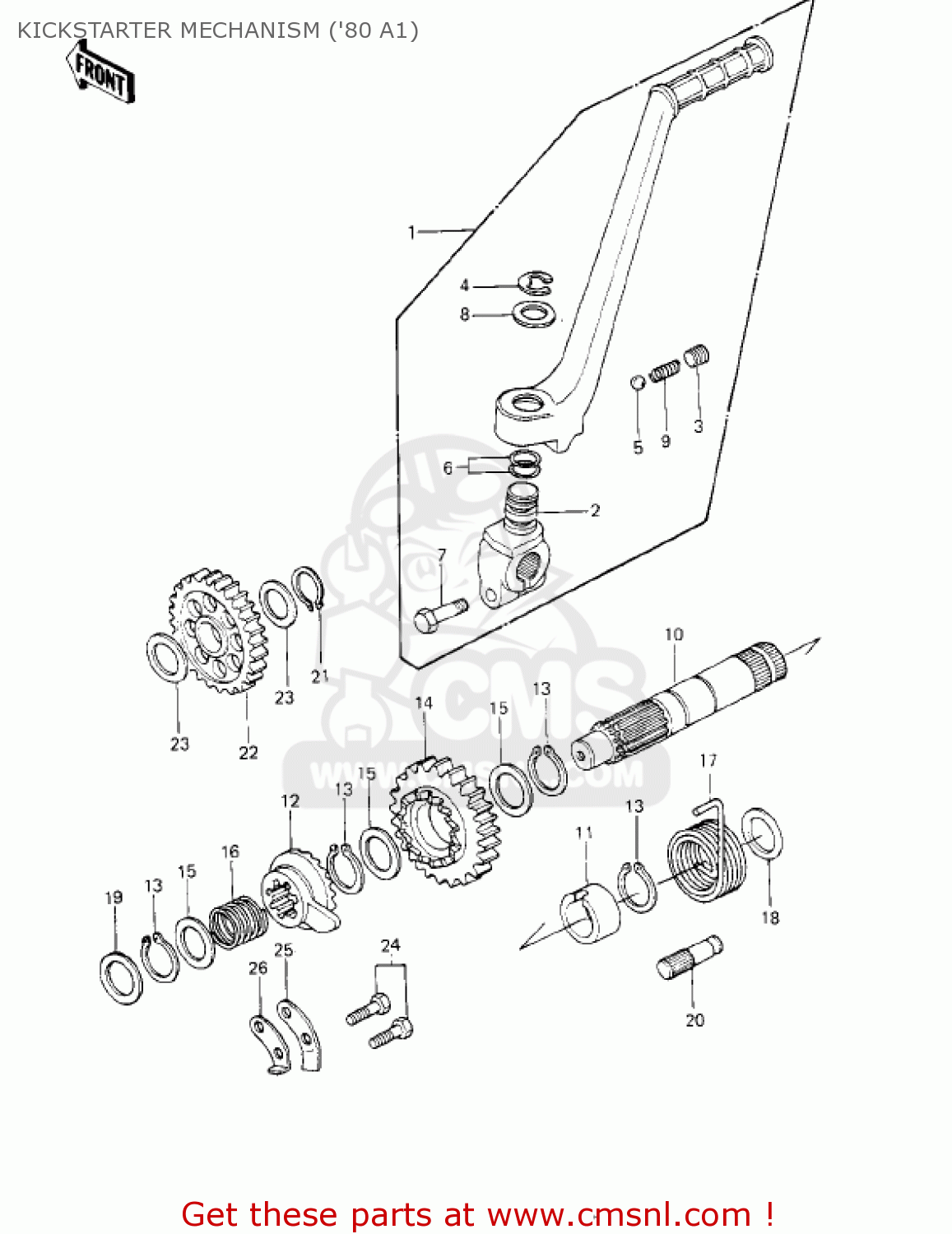

Kickstarter mechanism ('80 a1) diagram KDX175-A1 KDX175 1980 USA CANADA

KICKSTARTER MECHANISM ('80 A1) KDX175-A1 KDX175 1980 USA CANADA

KICKSTARTER MECHANISM ('80 A1) KDX175-A1 KDX175 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

130645005
ref: 1

LEVER-ASSY-KICK PEDAL

€ 166.00

2

130615001
ref: 2

BOSS,KICK PEDAL

€ 41.00

3

290Q0808
ref: 3

SCREW,8X8

€ 2.50

4

482K0100
ref: 4

CIRCLIP-TYPE-E,10MM

€ 0.50

5

600A0800
ref: 5

BALL-STEEL,1/4

€ 0.50

6

670B2012
ref: 6

O RING,12MM

€ 1.00

7

920011042
ref: 7

BOLT,HEX HEAD,8X28

€ 4.00

8

920221019
ref: 8

WASHER,15.2X20X1

€ 3.50

9

92081020
ref: 9

SPRING-KICK PEDAL

€ 2.50

10

130661005
ref: 10

SHAFT,KICKSTARTER

€ 79.50

11

13070008
ref: 11

GUIDE,KICK SPRING

€ 6.00

12

130781052
ref: 12

RATCHET,KL250-D2

€ 50.50

13

480J1600
ref: 13

CIRCLIP-TYPE-C,16MM

€ 2.50

14

590511008
ref: 14

GEAR-SPUR,KICK,25T

€ 83.00

15

92022315
ref: 15

WASHER, 16.8X22X0.5

€ 4.00

16

92081122
ref: 16

SPRING,RATCHET

€ 6.00

17

92082005
ref: 17

SPRING,KICKSTARTER

€ 13.50

18

92022268
ref: 18

WASHER,16.3X24X1

€ 5.50

19

92022269
ref: 19

WASHER,PLAIN

€ 1.00

20

92043102
ref: 20

PIN

€ 2.50

21

480J1500
ref: 21

CIRCLIP-TYPE-C,15MM

€ 1.00

22

590511009
ref: 22

GEAR-SPUR,IDLE,31T

€ 61.00

23

920221045
ref: 23

WASHER,15.3X25X0.5

€ 3.00

24

112G0618
ref: 24

BOLT-UPSET

€ 0.50

25

132061059
ref: 25

GUIDE-KICK

€ 7.00

26

320851016
ref: 26

STOPPER,KICKSTARTER

€ 5.50
