TAILLIGHT/CHASSIS ELECTRICAL EQU

KDX175-A1 KDX175 1980 USA CANADA

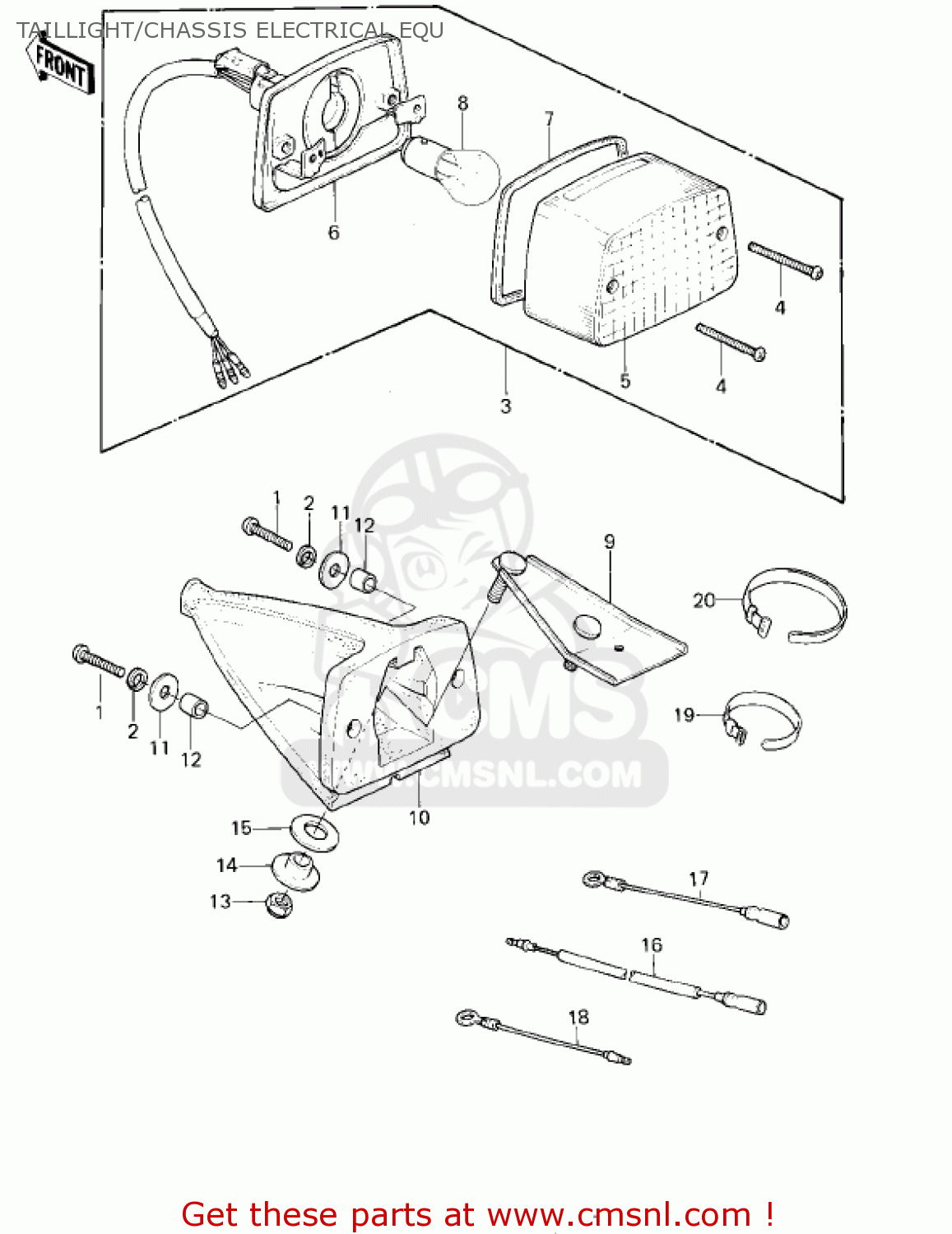

Taillight/chassis electrical equ diagram KDX175-A1 KDX175 1980 USA CANADA

TAILLIGHT/CHASSIS ELECTRICAL EQU KDX175-A1 KDX175 1980 USA CANADA

TAILLIGHT/CHASSIS ELECTRICAL EQU KDX175-A1 KDX175 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

220B0516A
ref: 1

SCREW-PAN HEAD,5X16

€ 2.50

2

461F0500
ref: 2

WASHER-SPRING,5MM

€ 0.50

3

23025075
ref: 3

LAMP-TAIL,040-5459 MA

€ 96.00

4

220B0330
ref: 4

SCREW-PAN-CROS

€ 1.00

5

23026040
ref: 5

LENS,TAIL LAMP

€ 28.50

6

23027044
ref: 6

BODY-COMP-TAIL LAMP

€ 52.00

7

23028020
ref: 7

GASKET,TAIL LAMP LENS (NAS)

€ 6.50

8

92069028
ref: 8

BULB 6V 17/5.3W

€ 4.50

9

230364001
ref: 9

BRACKET,TAIL LMP BODY

€ 2.50

10

230694001
ref: 10

BODY,TAIL LAMP

€ 31.50

11

920224001
ref: 11

WASHER,5.5X16X0.8T

€ 2.00

12

920274002
ref: 12

COLLAR,5.5X8X8.8L

€ 2.00

13

92019008
ref: 13

NUT-LOCK,6MM

€ 3.00

14

920271045
ref: 14

COLLAR

€ 3.50

15

92075118
ref: 15

DAMPER RUBBER

€ 1.00

16

260111067
ref: 16

WIRE,LEAD,L=500M/M

€ 13.00

17

260111068
ref: 17

WIRE,TAIL LAMP GROUND

€ 2.50

18

260111069
ref: 18

WIRE,HEAD LAMP GROUND

€ 1.50

19

92072030
ref: 19

BAND,SHORT

€ 3.00

20

92072056
ref: 20

BAND,RUBBER

€ 3.00
